Summary of Contents for ProofCam PC 106

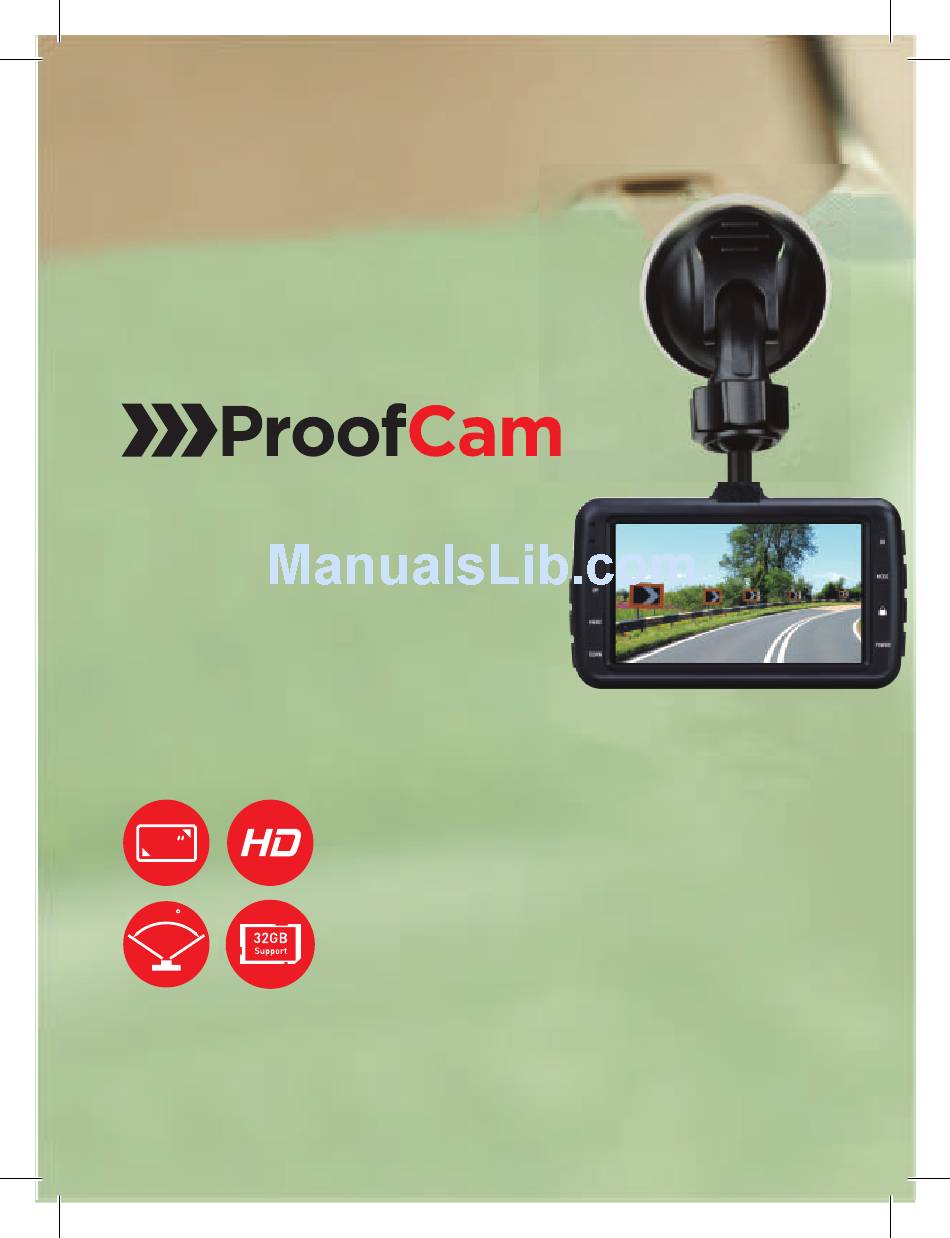

- Page 1 PC 106 HD Dash Cam Designed and tested by experts INSTRUCTION MANUAL...
- Page 2 Congratulations on choosing the PC 106 Forward Facing HD Dash Cam. Please read these instructions carefully before use.
-
Page 3: Table Of Contents
Contents Product Features Caution Unpacking Warranty Identification of Controls Specification Preparing for Use Installing the Dash Cam Connecting to Power Powering the Dash Cam On / Off Set the Date / Time Mode Selection Using the Dash Cam Recording Screen Emergency File Protection Motion Detection G-sensor Collision... -
Page 4: Product Features
PC 106 HD Dash Cam Product Features › HD Dash Cam › 1 Megapixel CMOS Sensor › 3.0” TFT Display › 120˚ Wide Angle Lens › Support up to 32GB Class10 Micro SD Memory Card › G-sensor Collision Recording Protection ›... -
Page 5: Identification Of Controls P02
Identification of Controls 12 13 Controls: 1. USB Port for power adaptor OK button 2. Lens Mode button 3. LCD Lock button 4. SD card slot Power button 5. Up button Microphone 6. Menu button Reset button Down button... -
Page 6: Preparing For Use P03
PC 106 HD Dash Cam Preparing for Use Battery Indicator and Charging Inserting the SD Card (included) Follow the direction indicated on the dash cam to insert the Micro SD card, a click sound is heard indicating the Micro SD card is in position. -
Page 7: Installing The Dash Cam P04
Any excess cable can normally be tucked into the ceiling of the vehicle. We have a video to advise on how best to fit the PC 106 which is available www.proofcam.com and visit “... -
Page 8: Powering The Dash Cam On / Off P05
If your vehicle in car power remains on after the car engine has been turned off, you may need to remove the car charger, or turn the PC 106 off using the power button. This is because if the in car power remains on, the PC 106 will not know that the engine has turned off. -
Page 9: Set The Date / Time P06
PC 106 off using the power button. This is because if the in car power remains... -
Page 10: Recording Screen P07
Emergency File Protection Important: The PC 106 records in segments onto the Micro SD card. The default segment duration is 3 minutes, which can be changed from the menu settings. For example, 1 hour of recording would generate 20 x 3 minute segments. - Page 11 Recovery the video to the protection video: During Playback menu, press UP and DOWN buttons to select “lock One” or “lock All”, then press OK button to recovery the current protected video or all the protected videos. NOTE: 1. The recording will stop automatically and the screen will show Micro SD card is full if the Micro SD card is full of protected files.
-
Page 12: Motion Detection P09
PC 106 HD Dash Cam Motion Detection First, press REC/OK button to stop recording; Second, press Menu button to enter Menu settings to activate the Motion Detection function(the default setting is Off, press REC/OK button to activate the function); Third, setting the Auto Power Off to be Off;... -
Page 13: Menu Options P10
Menu Options... -
Page 14: Menu Settings Mode P11
PC 106 HD Dash Cam Menu Settings Mode Function List Description Available Option 1080FHD 1920×1088 Resolution Setting for video resolution. 720P 1280×720 Select the picture quality/resolution. 1M / 2M Picture Quality 2M is the default one Setting for enabling automatic loop record and the video clip time. - Page 15 Function List Description Available Option Setting to enable / disable the press button beep sound. Beep Sound Off - No beeps sound when you press On / Off button. On - Select this to enable audible system beeps when seting the menu options.
-
Page 16: Taking Picture P13
PC 106 HD Dash Cam Function List Description Available Option Format the inserted micro SD card videos and pictures. OK - Select this option completes the format process. All the videos and pictures will be deleted. Format Cancel / OK Cancel - Select this to end the format and return to the previous menu. -
Page 17: Playing Back Videos And Photos P14
2017-07-01 03:14:06 07905 Still Photo Battery Value Date and Time Remaining Capture Resolution Card Status Numbers to Mode Status Take Photo Playing Back Videos and Photos Press MODE button switch to playback mode, press UP and DOWN buttons to select the videos and photos, then press REC/OK button to view video and photo. -
Page 18: Playback Menu Options P15
PC 106 HD Dash Cam Note: The first file in playback is the last operating video / photo before entering playback mode. The following files will be the ruled in turn according to operate time. Playback Menu Options Function List... - Page 19 CAM ONLY WITH THE SUPPLIED DC POWER LEAD AND AC ADAPTER FOR BATTERY CHARGING. To recycle your PROOFCAM Dash Cam unit, please take it to your local recycling centre. This product fully satisfies the requirements for CE marking when used in a residential, commercial or light industrial enviroment.
- Page 20 If you have a camera that requires service under warranty, then in the first instance you should return it to the retailer from whom it was purchased. Should you have any general or technical questions on your PC 106 Dash Cam, please email us at customer@proofcam.com.We will endeavor to answer your mail within 24 hours.
- Page 21 Specification LCD Display 3.0 inch TFT LCD monitor Screen Resolution 960 x 240 Image sensor 1.0MP Lens Full 4 Glass View angle 120° Video Resolution 1080FHD 1920*1088 25fps / 720P 1280*720 30fps Picture resolution Video format Picture format Micro SD included...
- Page 22 Important: It is your responsibility to make sure that you use the ProofCam Dash Cam in a safe and responsible manner. Do not access functions or change settings whilst you are driving, and the location and positioning of your ProofCam Dash Cam should not interfere with the driver’s field of vision.
