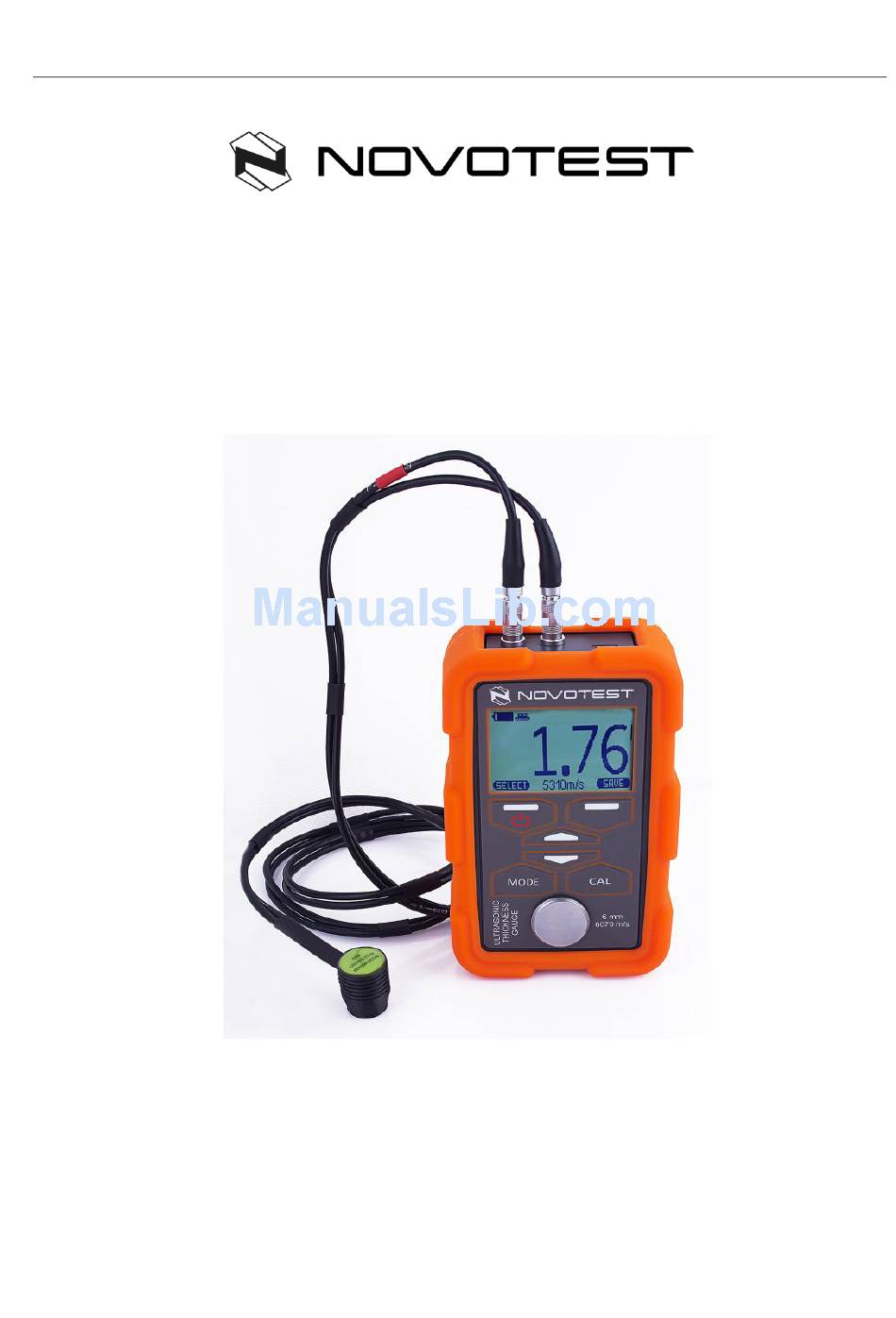

- Page 1 ULTRASONIC THICKNESS GAUGE NOVOTEST UT-1M Operating Manual 2017...
-
Page 2: Table Of Contents
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M CONTENT 1. Description and operation of the appliance and its components ............5 1.1 The purpose of the device ....................... 5 1.2 The technical characteristics of the device ..................5 1.3 Completeness ..........................6 1.4 Transducers types .......................... - Page 3 - the ultrasonic thickness gauge NOVOTEST UT-1M (hereinafter referred to as the device or thickness gauge). The document contains specifications, description of construction and actions, as well as information necessary for the correct use of the products.
-
Page 4: Description And Operation Of The Appliance And Its Components
1.2 The technical characteristics of the device The ultrasonic thickness gauge NOVOTEST UT-1M is a portable device made in a shock- resistant case (with a special protective silicone bumper-case for difficult operating conditions) inside which the electronic components board and batteries are placed. -
Page 5: Completeness
Charger ............................ 1 pc. Packaging container ........................ 1 pc. Operation manual NOVOTEST.UT-1.000 OM ..............1 pc. * At the request of the customer, the delivery kit can be expanded with additional equipment or parts. The exact information on the delivery set is indicated in the passport of the device. - Page 6 6 - keyboard; 7 - reference sample; 8 – battery storage; 9 - protective silicone bumper; 10 - transducer; 11 - generator plug; 12 - battery compartment; 13 - receiver plug; 14 - battery compartment cover. Figure 1.1 - Ultrasonic thickness gauge NOVOTEST UT-1M Figure 1.2 - Keyboard Buttons and Their Functions где: –...
-
Page 7: Design And Operation
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M 1.6 Design and operation The device uses piezoelectric sensors that, when fed with a short electric pulse, emit sound waves whose frequency is much higher than the upper limit of the range perceived by the human ear (that is –... -
Page 8: Intended Use
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M 2. INTENDED USE 2.1 Operational limitations Operation of the device must be carried out under the influence of factors and taking into account the parameters of the monitored facilities in accordance with the specified technical characteristics, and the device must be used within its technical specifications. -
Page 9: Using The Device
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M The used in the instrument connectors (. Figure 2.2) consist of two parts: the socket and the plug. Figure 2.2 - Connectors used in the instrument The method for connecting and disconnecting the plug and socket is shown on Fig. 2.3. -
Page 10: Operation In "Measurement" Mode
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M 2.3.2 Operation in the "MEASUREMENT" mode To enter the "MEASUREMENTS" mode press the key « » or « » when you are in the main menu, select the desired mode and confirm your selection by pressing «... -
Page 11: Operation In The "Settings" Mode
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M The "CALIBER" mode is intended for the pre-measurement calibration of the converter (zero- setting of the converter) before the start of the measurement, in order to exclude the influence of the transit time of ultrasonic oscillations in the delay lines. -
Page 12: Operation In "Calibration" Mode
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M value using keys « » and « », then confirm by pressing « ». To exit the settings and save the changes, press key « ». 2.3.4 Working in the "CALIBRATION" mode When the menu item "CALIBRATION" is selected, the instrument switches to the calibration mode (Figure 2.11). -
Page 13: Operation In "Information" Mode
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M 6. Rename the changed calibration by pressing the key « » open the action menu with the calibrations, highlight the "MOVE" item and confirm with the key « ». 7. Enter a new calibration name. Moving the cursor on the virtual keyboard is done using the keys «... -
Page 14: Preparation Of The Object Of Control
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M 2.4.2 Preparation of the object of control Note: The accuracy of the measurement depends strongly on the state of contact between the transducer and the product surface. If the surface of the product being tested is strongly roughened, corroded or covered with a large layer of rust, it may be necessary to clean the surface with a file, a rasp, a grinding paper, etc.. -
Page 15: Safety Precautions
Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M 3. SAFETY PRECAUTIONS 3.1. Operation thickness gauge is permitted only after reading the manual. 3.2. Of minor faults of the device is allowed after it is turned off, repairs are carried out exclusively by the manufacture. - Page 16 Operation manual Ultrasonic Thickness Gauge NOVOTEST UT-1M NOTES __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________...
