Summary of Contents for Tokyo Flash KISAI Rorschach

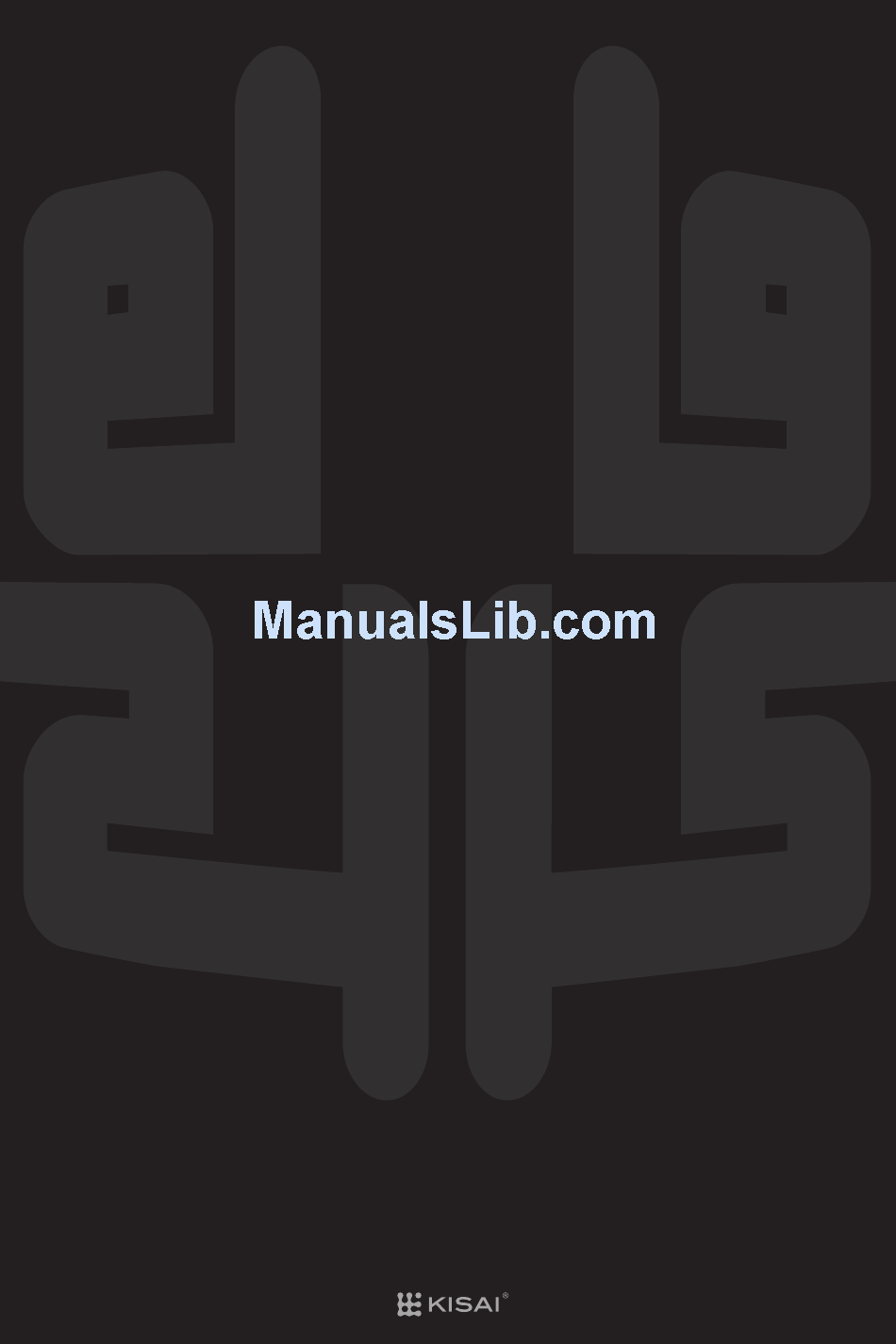

  • Page 1 =Rorschach=...
  • Page 2 INSTRUCTION MANUAL Button A Button B...

  • Page 3: How To Read The Time

    1. How to read the time • Rorschach has 3 difficulty modes [EASY], [MEDIUM] & [HARD] • The default setting is [MEDIUM] To cycle though the difficulty modes, HOLD button A • [HARD] [EASY] [MEDIUM] HOLD A HOLD A 12:45 PM 12:45 PM 12:45 PM •...
  • Page 4 • The diagrams below show [MEDIUM] & [HARD] mode. Notice that there are more lines connecting the numbers, but the position of the hour & minute is always the same. [MEDIUM] [HARD] 09:43 AM 17:38 indicator Note: The key differences in [HARD] mode are that numbers 6, 8 &...
  • Page 5 2. How to check the date & alarm • Press button A to change between [TIME] > [DATE] > [ALARM] *Rorschach will return to [TIME] mode after 20 seconds of inactivity. Date Alarm Alarm ON DATE: 10/29 ALARM: 07:30 AM October 29th Alarm OFF Note: The Alarm icon is small (OFF) or large (ON)
  • Page 6 3. How to set the time & display • From the time display, press & HOLD button B to begin setting the time. • You will be asked to set the following options in sequence. 12/24hr mode Display mode Hour Minutes *Setting mode will exit after 12 seconds of inactivity I.

  • Page 7: Display Mode

    II. Display mode Rorschach’s display can be set to [POSITIVE], [NEGATIVE] or [AUTO] [POSITIVE] shows black ink on white paper. [NEGATIVE] shows white ink on black paper. [AUTO] will show positive from 6am-6pm & negative from 6pm-6am. • The current display mode will be shown. Press button A to change the display mode.
  • Page 8 III. Hour The current hour will be shown in the top-right of the display. Press button A to increase the hour. * Hold A to increase quickly. 12hr Mode 24hr Mode 9 PM (4 PM) Press button B to accept. IV.

  • Page 9: How To Set The Date

    4. How to set the date • Press button A to show the date. • Press & HOLD button B to begin setting the date. *Setting mode will exit after 12 seconds of inactivity • The current year will be shown. •...
  • Page 10 4. How to set the alarm & sleep mode • Press button A twice to show the alarm time. • Press & HOLD button B to begin setting the alarm & sleep mode. *Setting mode will exit after 12 seconds of inactivity I.

  • Page 11: Sleep Mode

    II. Sleep mode Rorschach has a sleep mode which will cause the display to freeze into a cryptic pattern at a set time. Sleep mode will use very little battery power & you can extend battery life by several months by using this mode for times where you are asleep or not using the watch.
  • Page 12 • Rorschach will now ask you to set the END TIME for sleep mode. • Press button A to increase the end time hour. * Hold A to increase quickly. • Press button B to accept & finish. HOUR (6pm) (end) Note: If you wish to turn OFF sleep mode completely, set the start &...

  • Page 13: User Information

    5. User information I. Battery Rorschach uses a CR2016 replaceable watch battery. • • The battery should last at least 1 year. By using Rorschach’s ‘Sleep mode’ function you can extend battery life by several more months. II. Warranty • Rorschach is covered by a 1 year warranty.

  • Page 14: Specifications

    SPECIFICATIONS Case Materials Stainless Steel Strap Materials Faux Leather / Stainless Steel Case Dimensions 39 x 42 x 6.5 mm Finish Gold / Silver / Black Maximum Fit 210mm (approx.) Wrist Size Weight 60g (Stainless 120g) Display Eink™ Electronic paper Battery CR2016 Water resistance...
