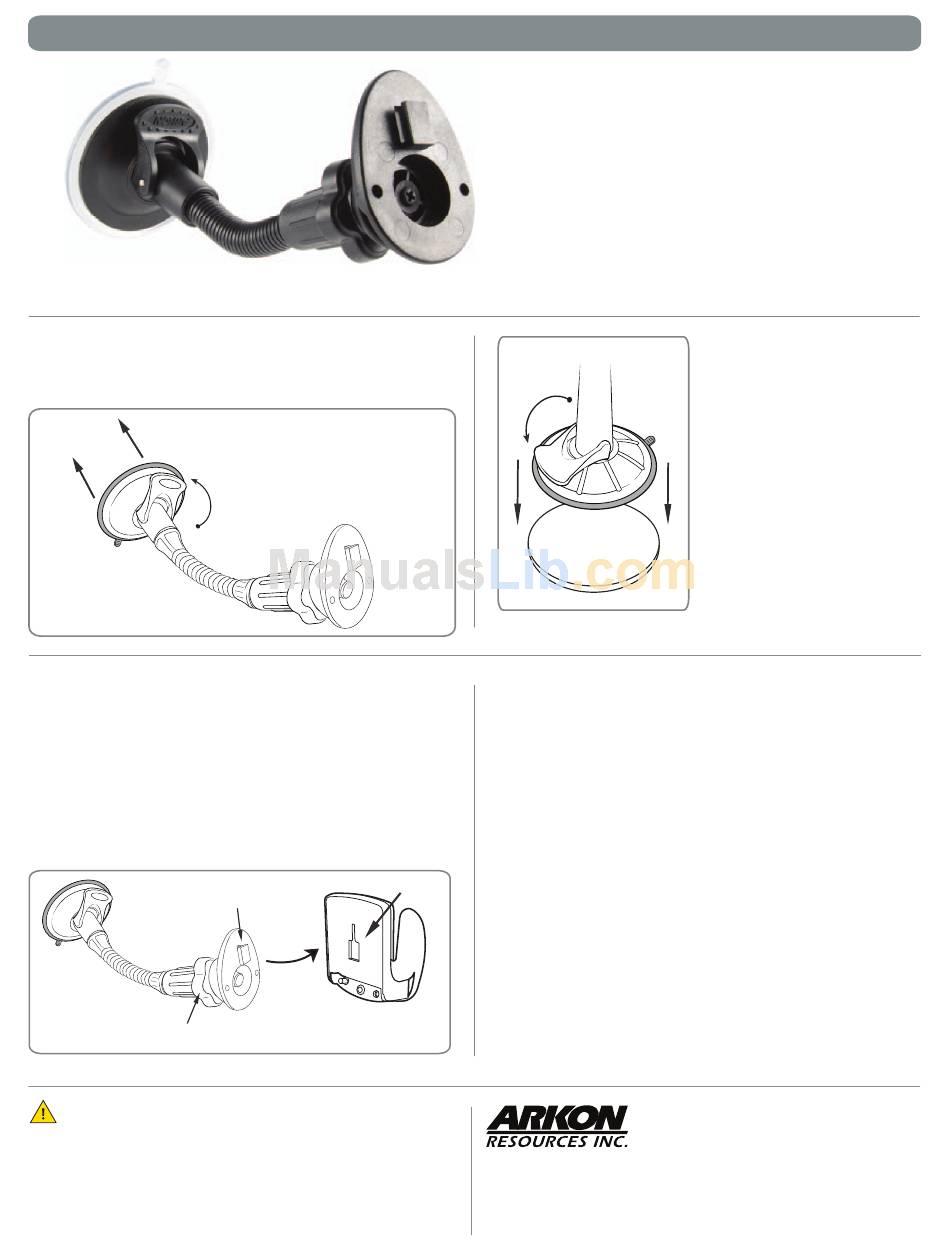

Arkon CM089-ST Installation Instructions

CM089-ST | 7 " Swivel Tightening Windshield Suction Pedestal
Windshield Installation
Step 1.
Push the pedestal suction cup (A) firmly to the windshield.
Flip the lever (B) down to secure the suction cup.
(B)
(A)
Pedestal Adjustment and Cradle Attachment
(Cradle Sold Separately)
Adjust the angle of the pedestal head by using both hands to
Step 1.
bend the gooseneck (D).
Adjust the angle and rotation of the pedestal head by loosening
Step 2.
the swivel tightening ring (E).
Attach the device cradle to the pedestal head by inserting the T-
Step 3.
tab (F) into the T-slot (G). (Cradle Sold Separately)
(D)
(E)
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or
air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of the
pedestal mount.
CM089-ST
(F)
(B)
(G)
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Mon-Fri. 9am-5pm, PST
Dash Installation (Optional,
when disc is included)
Step 1. Locate a safe flat surface on
the dash or console to
mount the pedestal. Clean
the dash with the alcohol
(A)
pad provided. Let the dash
surface dry before applying
the adhesive disc (C).
Step 2. Push the pedestal suction
(C)
cup (A) firmly to the disc (C).
Flip the lever (B) down to
secure the suction cup.
The Mobile Mounting Specialists
© Copyright 2007 Arkon Resources, Inc.
TM
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
