Schaub Lorenz DVD-1028TNT User Manual

Hdmi dvd player with built-in dvb-t usb with recording function
Hide thumbs
Table of Contents

Advertisement

Quick Links

DVD-1028TNT
DVD-1028TNT

USER MANUAL

Please read and keep these instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVD-1028TNT and is the answer not in the manual?

Questions and answers

Related Manuals for Schaub Lorenz DVD-1028TNT

Summary of Contents for Schaub Lorenz DVD-1028TNT

  • Page 1: User Manual

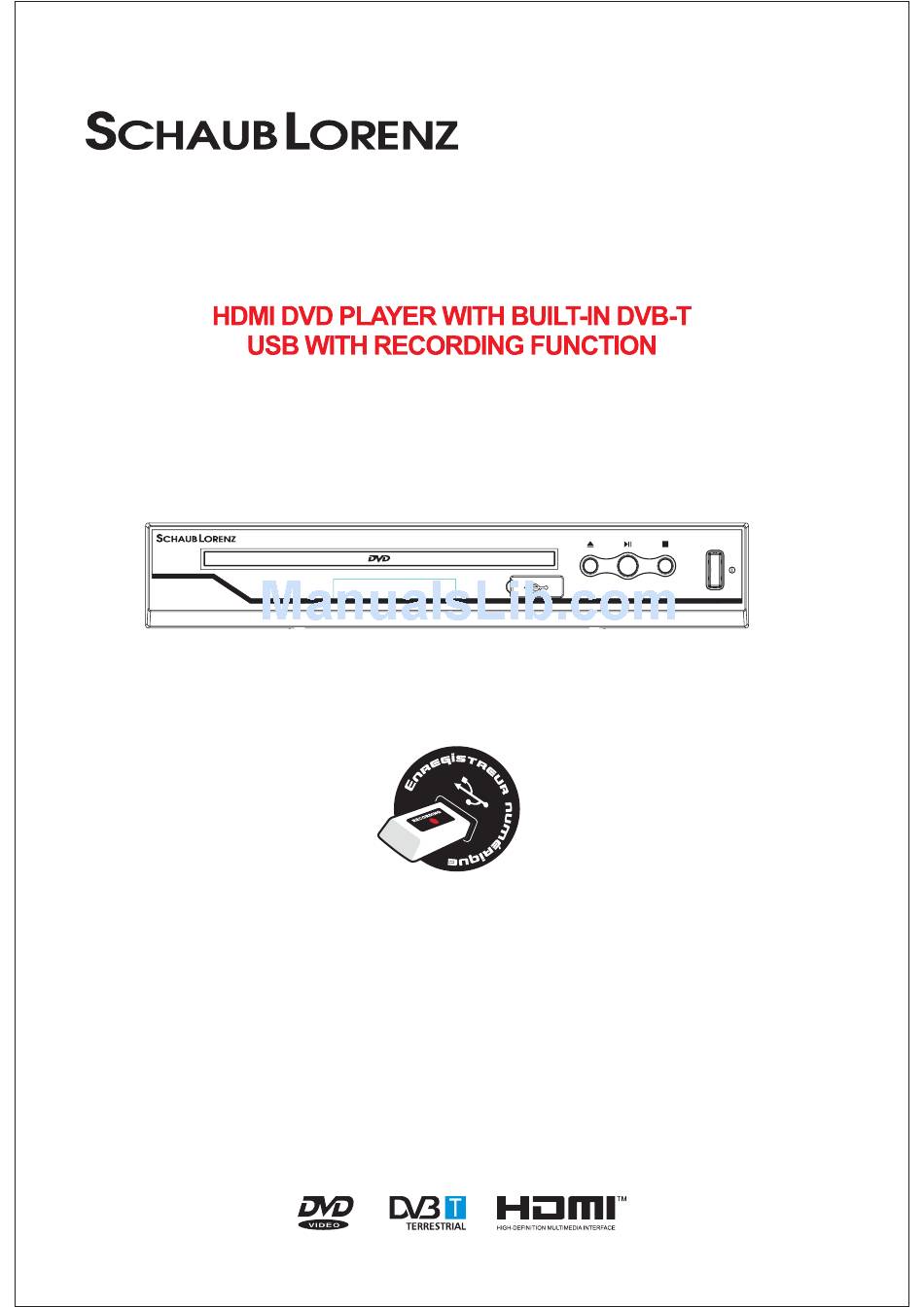

    DVD-1028TNT DVD-1028TNT USER MANUAL Please read and keep these instructions...
  • Page 2 Important safety instructions-please read carefully And keeps for future reference To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back or this product. In case of product failure, only qualified personnel can repair.
  • Page 3 Electric supply Please unplug the product in case of prolonged non-use. This product is intended to be used under temperate climate and should not be used under tropical climate. If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.
  • Page 4 Table of Contents …… … …… … … …… … … …… … …… … … … … …… … …… … … … …… … … 5.Connections 9-10 … … 14-15 14.Recording a DVB-T Program… … ……… … 16-19 20-21...
  • Page 5 1. Presentation Thank you for having purchased this DVD player with built-in DVB-T tuner. This unit allows you to receive all free DVB-T channels broadcast in MPEG-2 format. Simply press the DVD button on the remote control in order to switch to DVD mode and watch your favorite movies. This unit can also serve as an authentic multimedia station thanks to its USB port: - Plug a USB stick to the unit and you may start recording a DVB-T channel by simply pressing the REC button on the remote control! You may also program a recording in advance by using the...

  • Page 6: Front Panel And Rear Panel

    2. Front Panel and Rear Panel Front Panel DVD-1028TNT 1.DISC TRAY 5.OPEN/CLOSE 2.LED DISPLAY 6.PLAY/PAUSE 3.STATUS INDICATOR 7.STOP 4.USB 8.POWER SWITCH Status indicator of the unit: - The indicator lights in red when the unit is in standby mode or when recording is in progress.
  • Page 7 Connect this unit with an HDMI cable in order to enjoy both image and sound in digital high definition quality. Alternatively, you may use a SCART cable (cables are not provided). . Initial Installation Instructions System first asks user whether to perform initial installation, select "YES" to continue or "NO"to quit initial installation interface;...
  • Page 8 (4)The High-Definition Multimedia Interface (HDMI) is a digital audio/video connector interface for transmitting uncompressed digital streams. HDMI supports, on a single cable (HDMI cable not supplied), all video formats including standard, enhanced, and high- definition, as well as multi-channel digital audio. To enjoy the enhanced audio and video quality that HDMI offers, you need an HD Ready television with HDMI connection.
  • Page 9 Switching between the DVD/DVB-T/Multimedia Functions -Press the TNT button on the remote control to switch to DVB-T mode. -Press the DVD button in order to play DVDs. -Press the USB button to display all the multimedia files on your USB stick and use the VIEWREC button to display all the recorded files present on the USB stick.

  • Page 10: Remote Controller

    4. Remote Controller 1.STANDBY: Switch the receiver in and out of standby mode. 2.NUMBER KEYS: Used to select channel numbers or input numbers in menus. 3.GOTO: To select your desired time, chapter of the disc to play. 4.MENU DVD: During DVD playback , press MENU DVD to display the disc menu of the current title.

  • Page 12: System Setup

    SYSTEM SETUP 6. System Setup 6.1 Language Setup Select Language in the setup menu and display the Language submenu: 6.1.1 OSD Language Use this item to select the language of the setup menu and screen display. 6.1.2 Encoding MPEG4 Subtitle setting is used for choosing the subtitle language (only for MPEG4).After selecting one language, the alphabet of this language will be displayed on the screen., If you find the displaying subtitle not corresponding to the one you have set when playing a MPEG4 with internal subtitle, please check whether the MPEG4 internal subtitle language available in...

  • Page 13: Dvd Operations

    You then simply need to select the maximum resolution supported by your television in the menu: - 1280x720p (720p) - 1920x1080i (1080i) - 1920x1080p (1080p) Note: “p” signifies progressive, while “i” signifies interlaced. Display problem in HDMI mode If you have selected an HDMI resolution which is not supported by your TV (for example, you have selected 1080i while your TV supports 720p resolution only), a black screen will appear and you will not be able to change the HDMI resolution in the SETUP menu.
  • Page 14 7.2 Audio Setup Digital Out Highlight the Digital Out option, and press the Arrow buttons to choose the audio output mode . Press" Enter "to confirm; There are 3 optional audio output modes:OFF, SPDIF / RAW, and SPDIF/ PCM. OFF: From the Coaxial Output jack , no signal is output.
  • Page 15 DVB OPERATIONS . Initial Installation Instructions System first asks user whether to perform initial installation, select "YES" to continue or "NO"to quit initial installation interface; user can use direction buttons to select country/region and OSD language, and then select "NEXT" to access or "BACK" to return , system asks user whether to start auto scanning, select"...
  • Page 16 9.1.2 Sort Choose your favorite way to arrange the Channel Order, such as by channel no., user ID etc. 10. Program Search 10.1 Automatic Search Automatic Search is a kind of intelligent and convenient mode of programs searching, which covers programs of all frequency points of target countries or regions. 1.

  • Page 17: Parental Control

    11.Parental Control Choose the channel NO. you want to lock by direction keys,press ENTER to confirm. Parental PIN is needed each time you change the setting,please input 0000 by default. 12. System Setup Enter system setup interface via Setup > TV > System Setting. 1).Select an option by pressing the UP and DOWN keys of the remote control, and press OK keys of the remote control to change the setting’s value.
  • Page 18 13. Main operations in DVB-T mode 13.1 Change channel Please press CH+/CH- Or numeric keys from the remote control to change channel. 13.2. Access to favourite channels A list of favourite channels allows the user to go directly to the channel list of his choice, without having to press CH+ or CH- several times or without pressing the numeric channel keys.
  • Page 19 Notes: - The possible choice of languages and whether the AC3 mode is available depend on the viewed DVB-T program. Some programs may offer only one language and no AC3 mode. The AC3 audio mode may also be available only during certain hours of broadcast (e.g. for films). - When you select the AC3 audio track, your television speakers are muted.
  • Page 20 14.RECORDING A DVB-TPROGRAM This unit allows you to record your favorites DVB-T programs in a simple and user-friendly way. Simply plug a USB stick to the unit, the recording will be saved on it. After the recording, you can view the recorded file on this unit, or by using any other compatible multimedia equipment.
  • Page 21 Mode: there are 2 options: INACTIVE(close the timer setting task) and Record(timer recording) . Frequency: There are 3 options: ONCE,DAILY and WEEKLY. Channel No : To select the channel you want to select. Time Setting: To select the time you want to set. Note: If you enter the timer recording menu (by pressing the TIMER button on the remote control) and program a recording to start in less than 5 minutes, do not put the unit to standby (by pressing the STANDBY button) immediately afterwards;...
  • Page 22 14.5. Notes on the USB playback and recording functions -Information on the recording format: The recording is carried out in MPEG-TS (Transport Stream) format which allows making recording in MPEG-2 of quality identical to the signal received. In order to play your recordings on another multimedia device, it may be necessary to install a compatible video codec -If you want to record a film or a long program, use a memory stick of larger capacity (e g 4GB).
  • Page 23 -This unit is completely compatible with videos recorded in MPEG-4 SD format. This unit will automatically be able to read the videos encoded with the future updates of the MPEG-4 codecs. No updates on this unit will therefore be necessary. In case of MPEG4 video playback problems, you should first check the four following points: o This player supports videos that are recorded with DivX codecs.

  • Page 24: Troubleshooting

    16. Troubleshooting If you experience problems with this receiver or its intallation,in the first instance please read carefully the relevant sections of this User Manual and this Troubleshooting section. Standby A recording session is The status indicator flashes Insert a USB key into in red and green schedule but no USB the unit.
  • Page 25 Important Remarks: (1) Analog Reception and DVB-T Reception When you wish to watch TV using your TV tuner (analog tuner) and that your DVB-T unit has been turned off or unplugged, the image quality can be deteriorated according to the TV you are using.
  • Page 26 17.Technical Specification VHF: 178.7 to 218.7 MHz Frequency Tuner UHF: 474 to 858 Impedance 75 Ohms unbalanced Input Signal Level -78-25 dBm Bandwidth Demodulation Demodulator COFDM 2K, 8K FFT, SFN and MFN OFDM Modulation Packet Transmission 2K/8K 1/4, 1/8, 1/16, 1/32 Guard Interval Input/Output RF Input...
