Summary of Contents for AEDSuperstore HeartStart FRx
- Page 1 Philips HeartStart FRx Trainer Manual Get an original copy of the Philips HeartStart FRx Trainer Operators Guide for manufacturer information about service, available accessories and how to use and maintain your device.
- Page 2 H e a r t S t a r t F R x T r a i n e r I N S T R U C T I O N S F O R U S E 861306 Edition 5...
- Page 3 INTENTIONALLY BLANK...
- Page 4 HeartStart FRx Trainer 861306 I N S T R U C T I O N S F O R U S E Edition 5...
- Page 5 About this edition Device manufacturer The information in this guide applies to the Philips Medical Systems, Seattle, WA, 98121-1825, HeartStart FRx Trainer 861306. This information is subject to change. Please contact Philips at www.philips.com/productdocs or contact your local Trademarks Philips representative for information on revisions.
-
Page 6: Table Of Contents
HEARTSTART FRX TRAINER 861306 CONTENTS Intended use ................... 2 Features ....................2 Overview ....................3 HeartStart Trainer Kit Contents ..........5 Optional Accessories ..............6 Setup......................7 Installing ore Replacing the Batteries ........7 Connecting or Replacing the Training Pads II ......7 Repacking the Training Pads II ............ -
Page 7: Intended Use
Replacement training pads (REF: 989803139291) are available for use with the Training Pads II case. • The HeartStart FRx Trainer and Training Pads II can also be used with an Infant/Child Pads Placement Guide and an Infant/Child Key, available separately from Philips, for training in pediatric defibrillation. -
Page 8: Overview

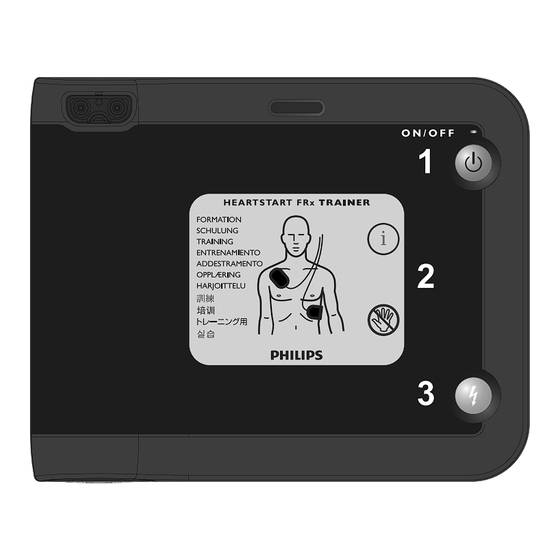

OVERVIEW back The HeartStart FRx Trainer is designed to look similar to the HeartStart FRx Defibrillator. However, the yellow center label identifies it as a training device. In addition, some of the FRx defibrillator’s features are either inactive in the FRx Trainer or behave differently from their counterparts in the Trainer. - Page 9 A TRAINING PADS CONNECTOR PORT. The Training Pads II connector is inserted in this port. INFANT/CHILD KEY SLOT. The Infant/Child Key, available separately, is inserted into this slot to simulate a defibrillation scenario for an infant or child under 8 years old or 55 pounds. C ON LIGHT.
-
Page 10: Heartstart Trainer Kit Contents
HeartStart FRx Trainer • HeartStart Training Pads II • HeartStart FRx Trainer carry case • HeartStart FRx Defibrillator Quick Reference Guide • HeartStart FRx Trainer Instructions for Use • External Manikin Adapter Check with your medical director or Emergency Medical Services... -
Page 11: Optional Accessories
Adult pads placement guide [REF: M5090A] • Infant/Child pads placement guide [REF: 989803139281] • Infant/Child Key [REF: 989803139311] • HeartStart FRx Defibrillator Instructor's Training Toolkit (NTSC) [REF: 989803139321] • HeartStart FRx Defibrillator Instructor’s Training Toolkit (PAL) [REF: 989803139331] • HeartStart FRx Defibrillator Training DVD (NTSC) [REF: 989803139341] •... -
Page 12: Setup
SETUP INSTALLING OR REPLACING THE BATTERIES The HeartStart Trainer is powered by four AA alkaline batteries (not included). To install or replace the batteries, follow the steps below: 1. Press the latch on the battery compartment door on the back of the FRx Trainer. -
Page 13: Repacking The Training Pads Ii
REPACKING THE TRAINING PADS II 1. Firmly press one pad into each side of the open training pads case. 2. Untwist the pads wires if necessary. 3. Coil the pads wires inside the case with the connector plug exiting through the hole in the pads case. USING THE MANIKIN ADAPTERS To simulate the patient, use the Training Pads II on a CPR training manikin equipped with a disposable External Manikin Adapter M5089A... - Page 14 INSTALLING THE INTERNAL MANIKIN ADAPTER The Internal Manikin Adapter M5088A, sold separately, works with Laerdal Little Anne CPR and Laerdal Resusci Anne CPR Manikins. To install the Internal Manikin Adapter on a Laerdal Little Anne CPR or Laerdal Resusci Anne CPR Manikin, follow the steps below: 1.
-
Page 15: Selecting A Training Scenario
SELECTING A TRAINING SCENARIO 1. Make sure the pads connector is plugged in and the FRx Trainer is turned off. (Press and hold the On/Off button if necessary to turn off the Trainer.) 2. Press the flashing i-button once. The FRx Trainer will tell you how to select a scenario. -
Page 16: Standard Training Scenarios
4. If using a clothed manikin, remove the clothing as instructed. 5. Open the Training Pads II case and peel off one pad. NOTE: Avoid touching the pad’s adhesive gel, because this may cause the Trainer to begin analysis prematurely. 6. - Page 17 The legend below identifies the symbols used on the rear label of the FRx Trainer and in the following scenario descriptions. NOTE: The shock series can be configured to either one or three shocks. If configured for the default one-shock series, the Trainer provides a pause after each shoc SYMBOL MEANING...
- Page 18 SCENARIO DESCRIPTION SCENARIO DETAILS Scenario 3 • Trainer detects poor pad contact, repeats pads placement instructions. • After one pad is removed and reapplied, Trainer detects a Troubleshooting pads, one shockable rhythm, instructs user shock needed for conversion to deliver a shock. •...
- Page 19 SCENARIO DESCRIPTION SCENARIO DETAILS Scenario 7 • Trainer detects a shockable rhythm, instructs user to deliver a shock. • Trainer still detects a shockable rhythm, instructs user to deliver Shockable rhythm detected, another shock. two shocks needed for • Trainer detects a non-shockable conversion, return to rhythm.
-
Page 20: Trainer Performance During Use
CPR and assessing the patient. TRAINER PERFORMANCE DURING USE The Philips HeartStart FRx Trainer is designed for use in an automated external defibrillator training class taught by a qualified instructor. When a training scenario is running, the FRx Trainer mimics the behavior of the FRx Defibrillator during actual emergency use. -
Page 21: Changing The Default Trainer Configuration
CHANGING THE DEFAULT TRAINER CONFIGURATION The HeartStart FRx Trainer comes with a factory default configuration designed to meet the needs of most users. The settings for certain parameters, listed in the table below, can be altered by the user. To change configurable Trainer parameters, remove the battery compartment door from the Trainer and locate the switches in the bottom of the battery compartment. -
Page 22: Troubleshooting
PARAMETER SWITCH # SETTING (DEFAULT = OFF) CPR Coaching OFF: with ventilations ventilations without ventilations shock series OFF: protocol pause 7 & 8 switch #7 switch #8 setting (minutes) * If the Trainer is configured for CPR Coaching with ventilations, and the user selects CPR Coaching by pressing the i-button, the default pause and CPR Coaching settings (2 minutes pause, 30 compressions/2 ventilations) result in 5 cycles of CPR Coaching. - Page 23 RECOMMENDED BEHAVIOR POSSIBLE CAUSE ACTION Trainer does • Pads placement is • Check for proper pad not say incorrect. and manikin adapter ANALYZING placement. Remove when pads are and reposition pads or applied to the adapter if indicated. manikin • Pads are old, •...
-
Page 24: Environmental Considerations
ENVIRONMENTAL CONSIDERATIONS By complying with your national regulations regarding disposal of electric, electronic, and battery waste, you can make a positive contribution to our shared environment. Such waste can introduce harmful elements into the environment as a whole and may also endanger human health. - Page 25 NOTES...
- Page 26 INTENTIONALLY BLANK...
- Page 27 INTENTIONALLY BLANK...
- Page 28 INTENTIONALLY BLANK...
- Page 29 Philips Medical Systems is part of Philips Medical Systems United States Royal Philips Electronics Philips Medical Systems 2310 Fifth Avenue, Suite 200 Seattle, WA 98121-1825, USA (800) 263-3342 Canada Philips Healthcare, a Division of Philips Electronics Ltd. 281 Hillmount Road Markham, Ontario L6C 2S3 Canada (800) 291-6743...
