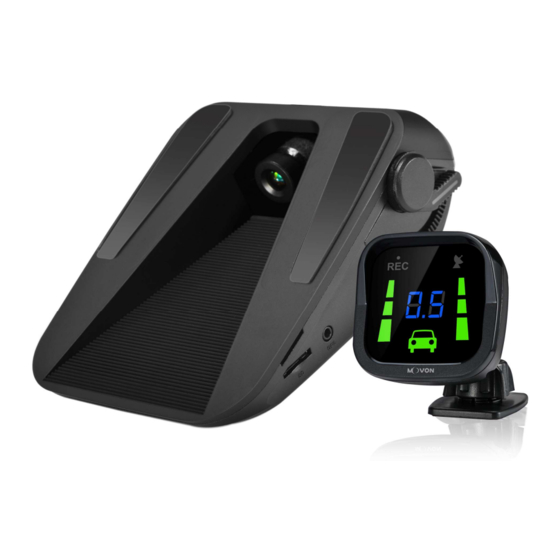

Movon MDAS-3LF Installation Manual

Car driver assistance system
Hide thumbs
Table of Contents

Advertisement

Quick Links

MDAS-3LF
Installation Guidebook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDAS-3LF and is the answer not in the manual?

Questions and answers

Summary of Contents for Movon MDAS-3LF

  • Page 1 MDAS-3LF Installation Guidebook...

  • Page 2: Table Of Contents

    Installation Procedure ....................13 Wiring Combination and Description ................13 6Pin Power Cable ....................... 14 3.3.1 4Pin Analog Cable ...................... 15 3.3.2 Wiring Combination ....................16 3.3.3 Attach MDAS-3LF ......................16 Parts connection ......................17 Indicator ........................18 3.5.1 - 2 -...
  • Page 3 Driver Setup (ONLY SUPPORTS WINDOWS OS)............20 Calibration Setup ......................20 Access MDAS-3LF Calibration page via PC ............20 4.2.1 Access MDAS-3LF Calibration page via Android Phone ........20 4.2.2 Select Vehicle Signal Types ..................23 4.2.3 4.2.3.1 Vehicle Data File (CAN-BUS) ................23 4.2.3.2 Analog (GPIO) ....................
  • Page 4 How to Download CAN Data ..................35 Register in Vehicle Database ..................35 Download CAN Data file ....................35 Recognize MDAS-3LF in computer ................38 Computer with Windows XP, 7, 8, 8.1 ................ 38 Computer with Windows 10 ..................38...
  • Page 5 Version Date Contents Written Note 17.08.09 Initial Release John - 5 -...

  • Page 6: General

    1 General MDAS installation requires wiring electric signals of vehicles. Please contact your local distributor or authorized installers to install. Movon will hold no liability of any damage occurred during installation proceeded by users, or unauthorized installers. MDAS is developed to give only warnings to drivers. The final decision to maneuver or control shall be made by drivers themselves.

  • Page 7: Product Components

    Storage -40℃ ~ 85℃ (-40℉ ~ 185℉) Product components Basic cable Micro SD card Main unit (6P Power, 4P Indicator (8GB) Analog) Technical cleaning wipe Micro 5PIN USB Video Out Cable Vibrator cable (Optional) (Optional) (Optional) (Optional for installers) Wi-Fi Dongle OBD-II OBD-II Anti Temper Cover...

  • Page 8: Main Unit & Main Cable

    Main Unit & Main Cable 2.3.1 Main Unit 2.3.1.1 Parts description - 8 -...

  • Page 9: Led Description

    LED Status Illuminate Illuminate Blink(from left to Blink Blink Illuminate right) Booting Working mode Firmware Update Calibration Initialization Detect micro SD card Verify GPS connection 2.3.1.2 LED Description 2.3.2 Cable - 9 -...

  • Page 10: Indicator

    Read user manual to see more description and functions. Indicator Error Table Camera Connection Error CAN Communication Error Low Visibility Indication Technical Cleaning Wipe MDAS-3LF provides Technical Cleaning Wipe for cleaning and removing dust, finger print on windshield. - 10 -...

  • Page 11: Obd Connector (Optional)

    OBD Connector (Optional) * ONLY use when the vehicle supports speed & turn signals via CAN-BUS and OBD- II PIN is compatible Vibrator (Optional) * NOTE: Need Vibrator gender cable to use this and need to enable in Calibration. Read details in Chapter 4. Calibration GPS (Optional) * Important, in case of use GPS for speed signal, warning timing can be inaccurate in decelerating circumstances.

  • Page 12: Video Out Cable (Optional)

    Video Out Cable (Optional) Transmit analog video to another device using RCA connector. 2.10 Micro SD Card (Expendable) * Micro SD card is expandable, only first 3 months are guaranteed. It is recommended to format micro SD card regularly and replace it when it cannot be recognized in MDAS.
  • Page 13 Before use, please install RNDIS driver, first. (See Chapter 4.1) - 13 -...

  • Page 14: Installation

    ② Connect vehicle signals (See Chapter 3.3 Wiring Combination) ③ Attach MDAS-3LF (and indicator if needed) to the vehicle ④ Connect cables with MDAS-3LF ⑤ Access MDAS-3LF using Micro 5pin USB cable or Wi-Fi dongle ⑥ Calibration (See Chapter 4. Calibration procedure) ⑦ Test drive Wiring Combination and Description 3.3.1 6Pin Power Cable...

  • Page 15: 4Pin Analog Cable

    Connection Description Color Label White CAN H To CAN High wire Support J1939 standard, CAN 2.0 (Support Version A, B) Green CAN L To CAN Low wire Yellow POWER To constant power wire Support 12~24 V (MAX 36V) To ignition (Accessory) power wire that turns off when key is at To ground source, please ensure that is connected properly to Black...

  • Page 16: Wiring Combination

    Analog 6PIN Power Cable + 4PIN Analog Cable + GPS Attach MDAS-3LF ① Before attaching MDAS-3LF, clean and remove dust, finger prints on the desired installation area with technical cleaning wipe and mark the center of - 16 -...

  • Page 17: Parts Connection

    *NOTE: It is very important to attach MDAS-3LF at the center for the best performance. If MDAS-3LF cannot be attached at the center, due to interior or space, attach MDAS-3LF as close as possible to the center. You can adjust the difference during Calibration in Chapter 4.

  • Page 18: Indicator

    3.5.2 Vibrator 4 Pin split gender cable is required to connector Vibrator. 3.5.3 Video-Out Cable Use Movon provided RCA cable and plug into Video out port. This function does not provide other UI or graphics through via video-out. - 18 -...

  • Page 19: Reset Mdas-3Lf

    Reset MDAS-3LF If MDAS-3LF has any malfunction, reset MDAS-3LF. Reset Press the Volume Down, Volume Up and Center Button at the same time. - 19 -...

  • Page 20: Pc And Android Phone Calibration

    * For more details, see Chapter 6. Calibration Setup 4.2.1 Access MDAS-3LF Calibration page via PC ① Connect MDAS-3LF to PC using Micro USB cable with 5 pins. ② Start the engine. If you hear repeating beep sound, this means MDAS-3LF is properly connected to computer.
  • Page 21 ② Connect Wi-Fi Dongle to USB port on MDAS-3LF. ③ Find and connect to “MDAS-3LF” on your Wi-Fi setting page. (Password: 12345678) - 21 -...
  • Page 22 ④ Return to the ADAS Settings app. Select “MDAS-3LF” and click the “NEXT” button. - 22 -...

  • Page 23: Select Vehicle Signal Types

    ⑤ On the Log-in Page below, Please enter your ID and Password, then select language you want. ⑥ If you can see the MDAS-3LF Calibration page below, you are ready for the Calibration procedure now. 4.2.3 Select Vehicle Signal Types 4.2.3.1 Vehicle Data File (CAN-BUS)

  • Page 24: Analog (Gpio)

    4.2.3.2 Analog (GPIO) In case of using Analog signals for all vehicle data, you do not need to download Vehicle Data file. Just click the Analog (GPIO) tab. Enter speed correction value and RPM correction value. Change polarity for turn signals and brake signal based on the vehicle.

  • Page 25: Vehicle Information Check

    4.2.4 Vehicle Information Check In this page, you can check whether MDAS-3LF is receiving vehicle data properly. 4.2.4.1 Verify Speed Signal Start the engine and drive slowly in a safe place to see whether speed is corresponding with the vehicle’s speed gauge. If it is not, you can simply adjust it.

  • Page 26: Camera Location And Vehicle Measurement

    “-“: Left Side / “+”:Right Side Center (If MDAS-3LF is attached 5cm to the right from the center, input 5. If MDAS-3LF is attached 5cm to the left from the center, input -5.) Distance from the camera to the center of the wheel.

  • Page 27: Camera Angle

    4.2.6 Camera Angle Adjust the camera angle knob to locate the horizon between the red guide lines. In case of indoor installation or somewhere you cannot see the horizon properly, use same data to "Camera Height”. Mark the same height on the wall apart about 3 ~ 5 meters from the vehicle.

  • Page 28: Vertical Baseline

    4.2.7 Vertical Baseline For better accuracy of ADAS, locate the red vertical baseline to be at the center of the road if it is possible (Exact half location of the lane) 4.2.8 Hood Line Locate the red line at the end of the vehicle’s hood line to remove the useless area.

  • Page 29: Forward Collision Warning (Fcw) Sensitivity

    ① Set the sensitivity of LDW warning on a scale of 1 to 5. As the level gets lower, you will hear the warning sound earlier. ② Warning sound: Select preferred warning sound for LDW. 4.2.10 Forward Collision Warning (FCW) Sensitivity You can adjust the FCW Sensitivity for your convenience.

  • Page 30: Dvr (Dashcam) Setup

    ① Enable Repeating LDW alarm. (On / Off) ② Enable Repeating FCW alarm. (On / Off) ③ Enable TTC (safety distance) alarm sound. (On / Off) ④ Enable Fixed FCW (TTC = 0.4) (On/Off) ⑤ Enable Forward proximity warning (On / Off) ⑥...

  • Page 31: Dtg(Digital Tachograph) & Gpio Setup

    ① Enable DTG (On / Off) ② Enable Vibration setting for LDW, FCW (On / Off). ③ Set TV out standard (PAL / NTSC) 4.2.14 MDAS Setup Complete Click “Complete” button to finish Calibration setup. Then MDAS-3LF will be rebooted automatically. - 31 -...

  • Page 32: Setting Modification

    Setting Modification Once MDAS-3LF is calibrated well, you will see different menu when you access MDAS-3LF. 4.3.1 Menu Description  System Update: The latest firmware published in the website (www.mdas.co.kr) can be updated here.  Default the System: It can be cleared and reset to the installation default.

  • Page 33: Default Mdas Settings

    ③ You are done when you see a pop up message below. *NOTE: Do not touch or change anything while updating. Unless, MDAS-3LF might lose its data and stop working. 4.3.3 Default MDAS Settings If you want to remove all data and return to a factory setting, click the “Default the System”...

  • Page 34: Recalibration

    4.3.4 Recalibration If you click this menu, you will restart from 4.2.4.1 Vehicle Signal Check. 4.3.5 Change settings from warning setups If you click this menu, you will restart from 4.2.9 Lane Departure Warning (LDW) Sensitivity If you only want to change settings about warning setups, please press this. It will start from Lane departure warning sensitivity menu.

  • Page 35: How To Download Can Data

    Register in Vehicle Database Open a web browser and enter http://info.mdas.co.kr/ You need to register and get an approval to log in. Please contact Movon Corp. or your local distributor for the approval. Download CAN Data file Once you log in, you will see Vehicle profile database page.
  • Page 36 Select Manufacturer, Model name and manufactured Year for the vehicle you need. You will see results on the right side of the page. Then click “ ” icon to see and download the vehicle information. - 36 -...
  • Page 37 Click “CAN File Download” button, then it will be downloaded as “mdasinfo.dat”. If you want to download photos and signal data, click “PDF download” button. They will be downloaded as a PDF file. - 37 -...

  • Page 38: Recognize Mdas-3Lf In Computer

    6 Recognize MDAS-3LF in computer * Please connect MDAS-3LF to your laptop using Micro 5Pin USB cable before install the driver. * Computer with Windows XP, 7, 8, 8.1 Visit http://www.mdas.co.kr and click “Notice” tab. You can find MDAS-3 PC Calibration file. Please download and unzip it. When you install it, please click the right button on your mouse and select “Run as...
  • Page 39 ② Download RNDIS driver and unzip it. ③ Press Window key + R. Type “devmgnt.msc”. You will see Device manager and a USB serial Port (COM x) under Ports (COM & LPT). ④ Click it using the right button of your mouse, then click “Properties”. - 39 -...
  • Page 40 ⑤ In the newly popped up window, Go to “Driver” tab, and click “Update Driver” ⑥ Select “Browse my computer for driver software”. - 40 -...
  • Page 41 ⑦ Click “Browser…” button and “Browse For Folder” window will pop up. - 41 -...
  • Page 42 ⑧ Choose “rndisdriver”. * Remember the path where you downloaded and unzipped the file * ⑨ Press “Next” on the page below. - 42 -...
  • Page 43 After installing the driver, you can close the windows. ⑩ Open a web browser and type http://10.0.0.1 If you see MDAS-3LF page like above, you have done everything perfectly. - 43 -...
  • Page 44 - 44 -...
