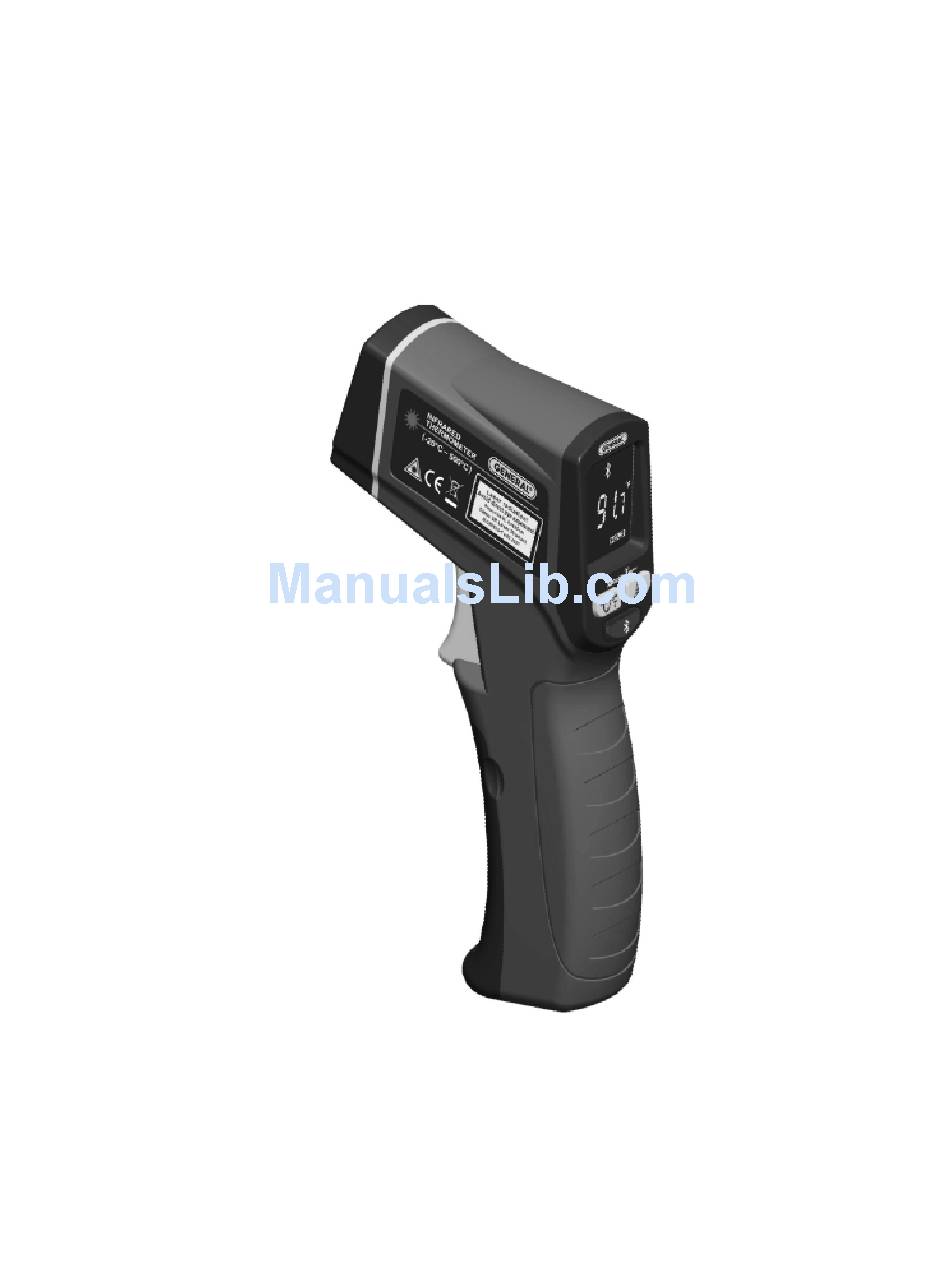

- Page 1 ToolSmart Infrared Thermometer Model: TS05 Operation Manual...
-
Page 2: Safety Instructions
It is a good measuring tool for the metallurgy, the electric power plant, the chemical industry, the rubber industry, the spinning and weaving, the plastic, the papermaking and the food processing. TS05 ToolSmart Infrared Thermometer is Class 3R laser product and in compliance with EN60825-1. Safety Instructions Failure to follow the instructions listed below may cause personal injury. -
Page 3: Battery Safety Instructions
●To avoid burning danger; remember that the reflected objects make the measuring temperature lower than the real one. ● Warning DANGER Class 3R Laser Product Maximum Power Output< 3mW Wavelength: 630-660nm Do not stare into the beam! Avoid direct eye exposure! This tool emits a laser radiation! This device complies with part 15 of the FCC Rules. -
Page 4: Illustration Of Display Screen
A．Laser target ring hole B．Infrared sensor C．Trigger ——ON / Measuring key D．Battery compartment E．LCD screen with black background——Show reading data and information F． ——Laser on or off G． ——Short press to transfer the bluetooth data to APP and save, hold for 3s for Bluetooth function on or off. -
Page 5: Operation Steps
A：Low battery B：Readings C：Measuring scan D：Laser ON E： ℉ ： ℃ G：Data hold H：Bluetooth connection indicator Operation Steps Battery installation ● Open the battery compartment, insert one 9V battery (6F22/6LR61), and close the lid. Measuring temperature ● 1. Pull the trigger to start the instrument and measuring, use the unit point to object to be tested than press the trigger, then measuring the temperature. - Page 6 5.When the battery is low, will appear on the screen. 6.The distance and target area: the value of D:S must be considered ( as showed ), the ratio should no more than the value of D:S. The field of view must be full of objects. As the distance from the object increases, the spot size of measuring area becomes larger.
- Page 7 please avoid using this product in strong electromagnetic environment. Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 8: Technical Specifications
● Don’t immerse the tool into water to avoid damage. ● In case of damage of tool by deterioration of battery. ● Remove the battery when not in use for an extended period of time. Technical Specifications Name ToolSmart Infrared Thermometer TS05 Model -40℃～580℃(-40℉～1076℉) Measuring range 8～14µm... -
Page 9: Warranty
0℃～40℃(32℉～104 ) ℉ Operating temperature Operating humidity RH 0～75% non-condensing Storage temperature -20℃～60 ( ℃ -4℉～140 ) ℉ ，≤85%（w/o battery） Product dimension 135 mm×170 mm×36mm Product weight About 158 g （w/o battery） Warranty The product is warranted to be free from defects in materials and workmanship for a period of one year from the date of purchase on the basis of providing relevant card.
