Summary of Contents for SMI SeeSV-S205

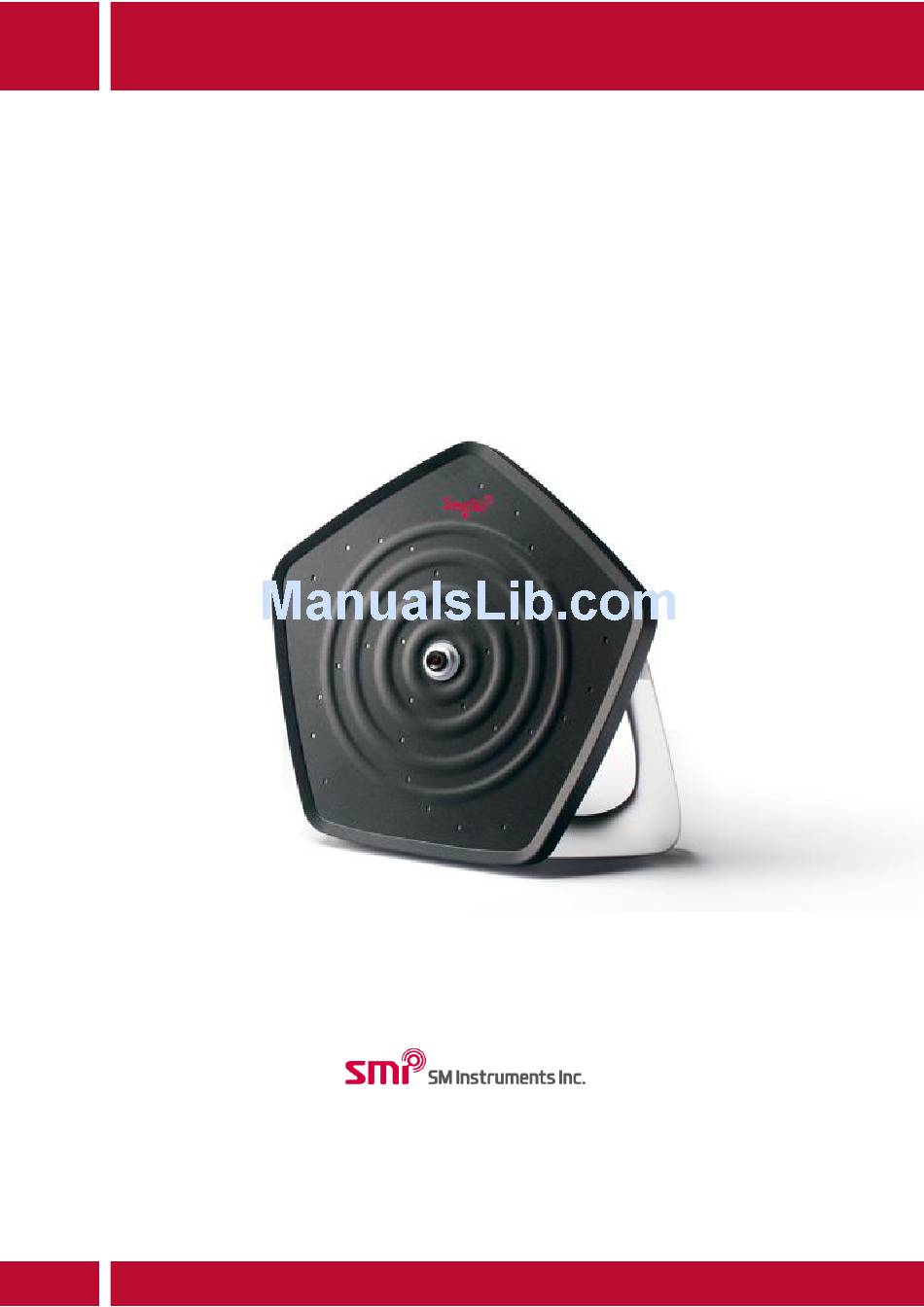

  • Page 1 SeeSV-S205W User's Manual...

  • Page 2: Table Of Contents

    SeeSV-S205 User's Manual Rev: 1.4.0 Contents Contents ........................................... 1 Introduction of System ..................................... 3 Components of System ................................. 3 Hardware Installation....................................4 Hardware Installation ..................................4 Status of Sound Camera Lamp..............................7 Software Installation ....................................8 Sound Camera Software Installation ............................8 Sound Camera Software Activation .............................
  • Page 3 SeeSV-S205 User's Manual Rev: 1.4.0 5.11.8 Mic Gain ..................................25 5.11.9 Mic Channel ................................. 25 5.11.10 Max/Min Level ................................25 5.11.11 Overlay Mode ................................26 5.11.12 Transparency ................................26 5.11.13 Mirror Mode ................................. 26 5.11.14 Image Calibration…………………………………………………………………………………………………………………...29 5.11.15 Recording Advanced Setup……………………………………………………………………………………………………29 Software shortcut keys ..................................

  • Page 4: Introduction Of System

    SeeSV-S205 User's Manual Rev: 1.4.0 Introduction of System Components of System Item Description Portable sound camera. AC/DC Power Adaptor LEMO to LEMO Cable.(10m) RJ45 LAN Cable.(1m) Doc. Type: User Manual SM Instruments Co., Ltd.

  • Page 5: Hardware Installation

    SeeSV-S205 User's Manual Rev: 1.4.0 Hardware Installation Hardware Installation Status Description Open the outer box. Open the inner box. SeeSV-S205W Manual. SeeSV-S205W Quick Manual. SeeSV-S205W Install CD Take the cables out. LEMO to LEMO cable. RJ45 LAN cable POE Controller Doc.
  • Page 6 SeeSV-S205 User's Manual Rev: 1.4.0 Take out the sound camera. Main components of the system are shown here. Doc. Type: User Manual SM Instruments Co., Ltd.
  • Page 7 SeeSV-S205 User's Manual Rev: 1.4.0 Power switch. The power is turned on, press the button for 3 seconds. Doc. Type: User Manual SM Instruments Co., Ltd.

  • Page 8: Status Of Sound Camera Lamp

    SeeSV-S205 User's Manual Rev: 1.4.0 Status of Sound Camera Lamp Status Description Not powered. Initializing (orange). Sound camera is ready to use (green). Doc. Type: User Manual SM Instruments Co., Ltd.

  • Page 9: Software Installation

    SeeSV-S205 User's Manual Rev: 1.4.0 Software Installation Sound Camera Software Installation Item Description Run “Setup.exe”. Confirm destination directory and click “Next>>”. Read Product Notifications and click “Next>>”. Doc. Type: User Manual SM Instruments Co., Ltd.
  • Page 10 SeeSV-S205 User's Manual Rev: 1.4.0 Read license agreement. Check “I accept the above 2 License Agreements” and click “Next>>”. Confirm items for installing and click “Next>>”. Doc. Type: User Manual SM Instruments Co., Ltd.
  • Page 11 SeeSV-S205 User's Manual Rev: 1.4.0 Installation is proceeding. Installation is complete. Click “Next>>”. The NI vision run-time engine should be activated. Connect PC to the internet and select "Automatic- ally activate through a secure Internet connection". Click “Next>>”. Doc. Type: User Manual...
  • Page 12 SeeSV-S205 User's Manual Rev: 1.4.0 Input the serial number of NI Vision Run-Time Engine in both boxes. For members of “www.ni.com”, select “User Profile Login”. In this, “Continue without a User Profile" is screenshot shown. Input end user information. Doc. Type: User Manual...
  • Page 13 SeeSV-S205 User's Manual Rev: 1.4.0 Activation is in process. The NI vision run-time engine is successfully activated. Click “Finish”. If this is the first time to install the software, you will be requested to restart the PC. Click “Restart”. Software installation is complete.

  • Page 14: Sound Camera Software Activation

    SeeSV-S205 User's Manual Rev: 1.4.0 Sound Camera Software Activation Item Description If the software is being installed for the first time, the software license confirmation window will appear. Click the “Activate SeeSV”. Click the “Activate SeeSV Online”. Input to License ID & password in text box.
  • Page 15 SeeSV-S205 User's Manual Rev: 1.4.0 Software is successfully activated and click the “Continue”. The sound camera is ready for use. Doc. Type: User Manual SM Instruments Co., Ltd.

  • Page 16: Ip Config

    SeeSV-S205 User's Manual Rev: 1.4.0 IP Config Item Description Open Network Connections by clicking the Start button , and then clicking Control Panel. Click the Network and sharing Center. Click “Change adapter settings”. Double Click “Wire connection”. Doc. Type: User Manual...
  • Page 17 SeeSV-S205 User's Manual Rev: 1.4.0 Click the “Internet Protocol Version 4(TCP/IPv4)”, and then click “Properties”. Click “Use following server addresses”, and then, write in the boxes. “IP address: 192. 168. 0. 102” “Subnet mask: 255. 255. 255. 0” “Default gateway: 192. 168. 0. 1”...

  • Page 18: Software Functions

    SeeSV-S205 User's Manual Rev: 1.4.0 Software Functions Run the software and following screen will appear. Measurement Beamforming Controller Controller Image Display Setting Preset Signal Graphs Device Status Software Mode Select software mode using this button (Record or Replay). Selected mode can be confirmed by the color and icon of the button..

  • Page 19: Control Buttons

    SeeSV-S205 User's Manual Rev: 1.4.0 Control Buttons Functions of each button are as follows. Button Function Play recorded data. Stop (Record/Replay). Record data. Restore data file. Convert data to movie file and save. Save image as PNG (graphic) format. Open the documents such as Application Guide, User’s Manual, and Quick start Manual.

  • Page 20: Image Threshold

    SeeSV-S205 User's Manual Rev: 1.4.0 Image Threshold Adjust the threshold level of the beam power which is displayed on the display window. Beam power below the threshold level will not be shown. If the current beam power is less than the threshold level, it will not be shown.

  • Page 21: Signal Graphs

    SeeSV-S205 User's Manual Rev: 1.4.0 Signal Graphs Display time signal of the microphone, power spectrum, 1/3 octave and trend of beam power level. Use the Graph Selector control outlined in red to select the type of graph. 5.7.1 Time Signal of Microphone Displays time history signal of the microphone selected.

  • Page 22: Power Spectrum Of Microphone

    SeeSV-S205 User's Manual Rev: 1.4.0 5.7.2 Power Spectrum of Microphone Displays power spectrum of the microphone selected. Adjust band pass filter using the two cursors. Adjusted range will be highlighted. Frequency range of the filter can be adjusted using the "Band Pass Filter" controls.

  • Page 23: Band Pass Filter

    SeeSV-S205 User's Manual Rev: 1.4.0 Band Pass Filter Adjusts the band pass filter of the beampower. Graph Selector Selects graph to display. 5.10 Device Status Lamp Displays the status of the connection of the sound camera. Color Description Not connected.

  • Page 24: Data Folder

    SeeSV-S205 User's Manual Rev: 1.4.0 5.11.1 Data Folder Defines path of the data file. This path will be the default setting for the following: Save data Open data file Save screenshot Convert/save movie 5.11.2 Open Data Folder Opens the data folder.

  • Page 25: Trigger Level

    SeeSV-S205 User's Manual Rev: 1.4.0 5.11.5 Trigger Level Sets trigger level. 5.11.6 Duration Sets the recording time in seconds when the trigger is activated. Duration Pre-trigger (Second, Trigger is buffer adjustable) Trigger occurred. (5 frames=0.2s, Level Thres hold 5.11.7 Mic. Channels Sets number of Microphone channels Doc.

  • Page 26: Product Type

    SeeSV-S205 User's Manual Rev: 1.4.0 5.11.7 Product Type Select model of sound camera being used. SeeSV-S205 SeeSV-S200 5.11.8 Mic Gain Set the gain of the microphone. The range of gain is -10dB/0dB/+10dB/+20dB/+30dB. 5.11.9 Mic Channel Select the microphone to be measured and displayed.

  • Page 27: Overlay Mode

    SeeSV-S205 User's Manual Rev: 1.4.0 5.11.12 Overlay Mode Select color set of beam power. Mode Description Rainbow Gray Temperature Binary Gradient 5.11.13 Transparency Set transparency of displayed beam power. 0 (opaque)  1 (transparent) Value Description 5.11.14 Mirror Mode Show mirror image.

  • Page 28: Image Calibration

    SeeSV-S205 User's Manual Rev: 1.4.0 5.11.14 Image Calibration Show automatic image calibration. Status Description Before After 5.11. 15 Replay Advanced Setup Selects replay advanced setup. Audio Filter: Amplifying the volume from noise source when a user coverts t은 file to avi file.

  • Page 29: Recording Advanced Setup

    SeeSV-S205 User's Manual Rev: 1.4.0 5.11.15 Recording Advanced Setup Sets Recording Time up to 180 seconds. 5.11.16 DAQ Status Shows a sound camera device information. Software shortcut keys Shortcut Function Ctrl+1 Display time history signal of the microphone. Ctrl+2 Display power spectrum of the microphone.

  • Page 30: Maintenance And Troubleshooting

    SeeSV-S205 User's Manual Rev: 1.4.0 Maintenance and Troubleshooting Sound Camera Firmware Update 7.1.1 How to update Sound Camera Firmware Item Description Run SeeSV software and then click the button. Click the button “Firmware”. Click the button “Open”. Doc. Type: User Manual...
  • Page 31 SeeSV-S205 User's Manual Rev: 1.4.0 Select the firmware file which is distributed with the installation file. (*.scfw file) Click “Update” to start. Before proceeding and during the update. - Confirm the connection of sound camera. - Keep power on. - Keep connection of sound camera connected.
  • Page 32 SeeSV-S205 User's Manual Rev: 1.4.0 Update completed. Run sound camera software to ensure update was successful. Modify the focus of sound camera 7.2.1 How to modify the focus of sound camera Item Description Previous image to be improved: Abnormal focus image.

  • Page 33: Modify The Focus Of Sound Camera

    SeeSV-S205 User's Manual Rev: 1.4.0 Camera lens hardware part.  CAM Status LED Indicator Lens Fixed Screw Lens Camera focus control method: Turn to the left and right lens fixed focus. ※ Cause: If you turn to the right to force the lens may be damaged.

  • Page 34: Modify The Position Of Overlay Image

    SeeSV-S205 User's Manual Rev: 1.4.0 After image improvement: Normal focus image. (After using Image Calibration) Developer's menu is displayed by click the "ctrl + ]" key. And Click “x(m) or y(m)” button manually. Or you can control image calibration by “Auto Cal”.

  • Page 35: Specifications

    SeeSV-S205 User's Manual Rev: 1.4.0 Specifications Microphone Array Microphone Type Digital MEMS Microphone Number of Microphones Microphone Sensitivity 70 mV/Pa Array Diameter 350 mm Frequency Range (Full) 350 to 12000 Hz Frequency Range (Recommended) 2000 to 10000 Hz Measurement Distance 0.2 to 5.0 m (Recommended)

  • Page 36: Caution

    SeeSV-S205 User's Manual Rev: 1.4.0 <CAUTION> This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
