Summary of Contents for Xact X33X

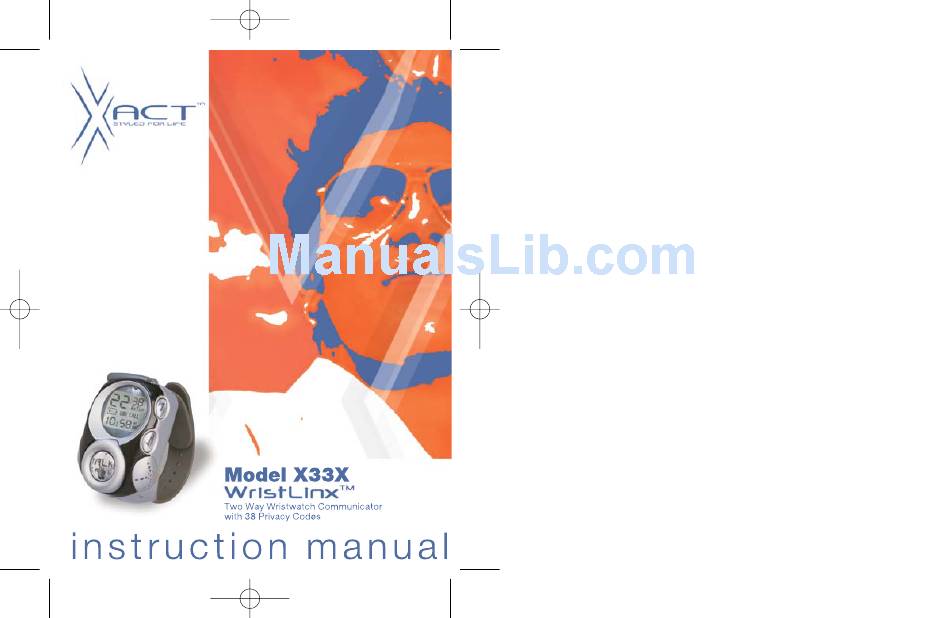

- Page 1 X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:57 AM Page 1 Please log on to www.getxact.com for accessory & product information.
-
Page 2: Special Features
Owner’s Manual, this unit will provide you with years of trouble-free service. XACT is committed to providing quality products that fit your needs. Please send us your comments and suggestions. Mail them to: XACT Communication, LLC... -
Page 3: Communicator Controls
X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:57 AM Page 3 COMMUNICATOR CONTROLS LCD SCREEN Channel Number (1~22) – Changes from 1-22 as selected by user. Transmit Indicator (TX) – Indicates unit is transmitting a signal. Receive Indicator (RX) – Indicates unit is receiving a transmission. -
Page 4: Fcc Notice
Important: Changes or modifications to this unit not expressly approved by XACT Communication could void your right to operate this unit. Your COMMUNICATOR is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations. -
Page 5: Safety Information
X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:57 AM Page 5 FCC NOTICE Safety Information Your wireless hand-held portable transceiver contains a low power transmitter. When the Push-to-Talk (PTT/CALL) button is pushed it sends out radio frequency (RF) signals. This devise is authorized to operate at a duty factor not to exceed 50%. -
Page 6: Getting Started
CAUTION: To reduce the risk of personal injury, use only the battery listed in the Owner’s Manual. The X33X COMMUNICATOR has a built in POWER SAVER feature for maximum battery life. But when the X33X COMMUNICATOR is not being used, conserve battery power by pressing the POWER/MENU but- ton to turn OFF the unit. -
Page 7: Charging The Battery
9:57 AM Page 7 GETTING STARTED Charging the BATTERY: Your X33X COMMUNICATOR comes with an A/C ADAPTER CHARGER to charge your Lithium-Ion BATTERY. To charge: 1. Lift the HEADSET/CHARGER JACK COVER located on the side of your COMMUNICATOR. 2. Connect the A/C ADAPTER CHARGER into an A/C wall outlet. - Page 8 X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:57 AM Page 8 GETTING STARTED Battery Level and Low Battery Operation In WATCH and COMMUNICATOR mode the Low Battery Level icon will not appear on the display unless the unit detects that the BATTERY LEVEL is low.
-
Page 9: Changing The Face Plate
2. To remove the X33X COMMUNICATOR from your wrist, Press the Release Button found at the top of the unit. 3. To attach the strap to the X33X COMMUNICATOR insert the end of the strap back into the slot until it locks (you will hear it click). -
Page 10: Operation
4. Adjust the Speaker Volume to a comfortable level by pressing the UP or DOWN button (default). Navigating through the Menu Use the MENU button to access the advanced features of the X33X COMMUNICATOR. (See pages 11-15 for programming instructions.) 1.) Watch Mode (Default) Menu... -
Page 11: Watch Mode
Page 11 OPERATION WATCH Mode: The X33X COMMUNICATOR functions as a digital watch while in this mode. 1. Install the battery and the COMMUNICATOR's LCD Screen will display the time in the WATCH mode. 2. Press the MENU button until a "beep" is heard and the displayed hour will "flash". Press... - Page 12 Page 12 OPERATION COMMUNICATOR Mode: The X33X COMMUNICATOR functions as a two-way communication device while in this mode. 1. Press the MENU button for 3 seconds and a short "beep" followed by a long "beep" will be heard, the COMMUNICATOR's LCD Screen will quickly display all of the...
-
Page 13: Changing Channels
Page 13 OPERATION Changing Channels: The X33X COMMUNICATOR has 22 channels for communicating with others. To change the COMMUNICATOR's channels while in COMMUNICATOR mode: 1. Enter COMMUNICATOR mode by pressing the MENU button for 3 seconds and a short "beep" followed by a long "beep" will be heard, the COMMUNICATOR's LCD Screen will quickly display all of the COMMUNICATOR's status icons, and the COMMUNICATOR will enter COMMUNICATOR mode and display the current channel. -
Page 14: Channel Scan
X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:57 AM Page 14 OPERATION NOTE: Selecting a CTCSS Code of “oF” will disable the CTCSS feature. In order for other people to receive your transmission, they must be on the same channel and CTCSS Code you are currently using. - Page 15 X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:57 AM Page 15 OPERATION Transmitting and Receiving a Signal: The COMMUNICATOR is continuously in RECEIVE/STANDBY mode when the unit is on, in COMMUNICATOR mode, and not transmitting. Changing the position of the COMMUNICATOR (or its ANTENNA) may increase the quality and range of the COMMUNICATOR's transmitted or received signals.
- Page 16 X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:57 AM Page 16 OPERATION For greater privacy and convenience of hands-free transmission, use an Ear Bud (headset) with Microphone (see Accessory Order Form) when using VOX mode. Connecting the Ear Bud (Headset): 1. Set the COMMUNICATOR to VOX mode.
-
Page 17: Troubleshooting
X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:58 AM Page 17 TROUBLESHOOTING PROBLEM SOLUTION No power • Check the battery. Ensure that the battery is installed properly. • Battery may be weak. • Recharge your battery by using the A/C ADAPTER CHARGER. - Page 18 X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:58 AM Page 18 TROUBLESHOOTING PROBLEM SOLUTION Range is limited • BATTERY may be weak. • Recharge BATTERY if the BATTERY LEVEL indicator is low. • Range varies depending on terrain and environment. • Open fields provide maximum range; steel/concrete structures, heavy foliage, and operation in buildings and in vehicles may significantly limit range.
-
Page 19: Specifications
X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:58 AM Page 19 SPECIFICATIONS Channels Available 22 FRS/GMRS Channels and 38 CTCSS Codes Operating Frequency UHF 462.5500 - 467.7125 MHz Power Source 3.7v Lithium-Ion Battery (XB10) Output Power (TX) 0.3W ERP maximum Battery Life... -
Page 20: Care And Maintenance
X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:58 AM Page 20 CARE AND MAINTENANCE Damaged ANTENNA: Do not use any COMMUNICATOR that has a damaged ANTENNA. If a damaged ANTENNA comes in contact with the skin, a minor burn may occur. Important BATTERY Information: Only use the battery indicated in this manual. -
Page 21: Warranty
XACT Communication. Warranty Service Provided If you purchased the X33X COMMUNICATOR unit new from a retail vendor, XACT Communication warrants the equipment against defects in material and workmanship for a period of one (1) year from the original date of purchase. This warranty is in lieu of all other express warranties. -
Page 22: To Obtain Warranty Service
Your unit will be repaired or replaced if examination by the service center determines that the unit is defective. A X33X COMMUNICATOR unit received damaged as a result of shipping will require that you file a claim with the carrier to cover repair costs. -
Page 23: Fcc Licensing Information
For your reference: Model Number __________________________________________________ Date of Purchase ________________________________________________ Name of Dealer _________________________________________________ Toll Free Customer Service Telephone Number 1-866-466-XACT (9228) FCC Licensing Information: Channels 1 thru 14 transmit on FRS frequencies. Channels 15 thru 22 transmit on GMRS frequencies. - Page 24 X33X Owner’s Manual (Rev3).qxd 7/16/2003 9:58 AM Page 24 styled for life Made in China www.getxact.com...
