Model name

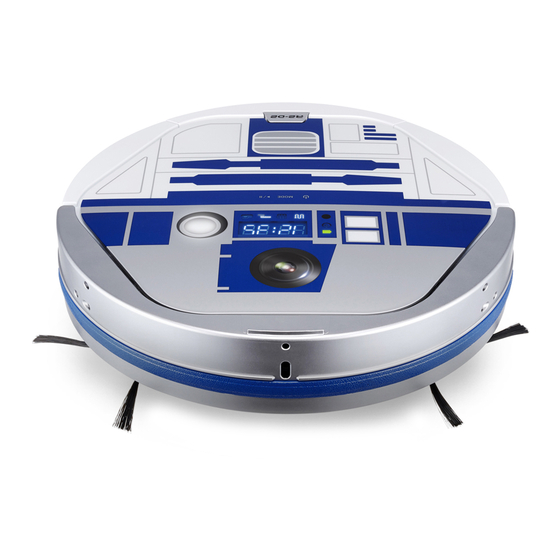

iClebo Star Wars (YCR-M08-10)
Input power
100~240 V
Standby power
Less than 1 W
Main body power
12 W
consumption
Battery
Lithium lon Battery
Diameter
35 cm
Height
8.9 cm
Weight
2.8 kg
Speed
300 mm/s (Max)
Filter
HEPA filter
Sensor
Camera, PSD, IR, Gyro, encoder, bumper
Charging time
About 100 minutes
About 110 minutes
Usage time
(when used on the standard floor )
Noise level
58 dB[A]
After-sales Service & Customer
Service Inquiries
Consult by telephone
1566-3292
Mon~Fri
AM09:00~12:50 / PM01:50~06:00
Head office #1214 Namseong Plaza, 130 Digital-ro, Geumcheon-gu, Seoul, South Korea
Factory #401-1001 Bucheon Techno Park, 655 Pyeongcheon-ro, Wonmi-gu, Bucheon, Gyeonggi-do, South Korea
www.iclebo.com
Inquiries received by mobile
24 hours a day
m.iclebo.com
www.yujinrobot.com
iAMN_EN.SW.V1
YCR-M08-10
User Guide
Robot Vacuum Cleaner iClebo STAR WARS
Customer Service Center Tel: 1566-3292
■Make sure to read "safety precautions" before use and then use strictly in accordance with instructions.
■Included in this User Guide is the device Warranty.
www.iclebo.com
Advertisement
Table of Contents
Summary of Contents for Star Wars YCR-M08-10
-
Page 1: User Guide
Star Wars (YCR-M08-10) Input power 100~240 V YCR-M08-10 Standby power Less than 1 W User Guide Main body power 12 W consumption Robot Vacuum Cleaner iClebo STAR WARS Battery Lithium lon Battery Diameter 35 cm Height 8.9 cm Weight 2.8 kg Speed... -
Page 2: Safety Precautions
● Safety precautions Before use After Use Components and their details Notes Tips for effective cleaning Operating principles of the Robot Cleaner Installation of the Robot Cleaner Before use • Installation of the side brushes • Installation of the charging station •... - Page 3 These precautions are intended to keep the user safe and to prevent damage to properties. ● Read carefully all contents below, and make sure to use safely. Ignorance or violation of these safety precautions / instructions could cause a significant injury or Warning death in the worst case.
- Page 4 ● Make sure to keep any Do NOT use the battery inflammable, fragile or and the charging station for fibrous substance away anything other than the before using the Robot Robot Cleaner. Cleaner. - Fire or malfunction could - Otherwise, fire or a be caused.
- Page 5 ● Take Precautions as Refrain from using the Entry prevent- ion tape required when cleaning an Robot Cleaner in an area area or staircase with the with the height of more than height of less than 5 cm, 5 cm, thus having the risk thus having the risk of an of an inadvertent fall (e.g.
- Page 6 ● Do NOT let any metallic Do NOT let chopsticks or object in contact with the pins inserted into the sensor main body or charging port. holes of the Robot Cleaner. - Otherwise, a disorderly - Otherwise, a disorderly operation or malfunction operation or malfunction could be caused.
-
Page 7: After Use
● After use Warnings Unwanted or foreign Make sure to turn off the substances placed on the power switch located on the sensor area could cause a side of the device when you disorderly operation. use the - Make sure to clean the cleaning brush to remove sensor area periodically. -
Page 8: Component Details
● Components HEPA filter (2 ea) Cleaning brush (※ Located inside the Robot Cleaner Charging station charging station.) Entry prevention tape ※Separately purchasable Remote Controller www.iclebo.com/shop YCR -M0 8-10 Side brush (L) wet ultrafine Mop plate fibrous mop (2 ea) MODE CLOCK TIMER... - Page 9 ● ● Charging station ● Dust Box Dust filter Anti-microbial filter / Electrostatic filter Filter case Charging status indicator Dust box Infrared generator Blades Anti-slip pads Charging ports ● Display window Battery level Time / cleaning Scheduling duration status Threshold mode mode Random...
-
Page 10: Before Use
● Operating principles of the Robot Cleaner Operating principles of the Robot Cleaner The device uses a camera and various sensors to detect and recognize the ceiling and obstacles, information on which is then used to create a virtual map located inside the CPU installed at the main body as it cleans. - Page 11 ● Mounting of the wet ultrafine fibrous mop 1. Turn the Robot Cleaner upside down and then fit the mop plate into the mounting area of the main body. Soak the wet ultrafine fibrous mop Wet ultrafine into water, squeeze a good amount of fibrous mop water out of the mop and then mount it onto the mop plate.
