VIC computer 5000 Installation Manual

Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
5000/5100 Terminal Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VIC computer 5000

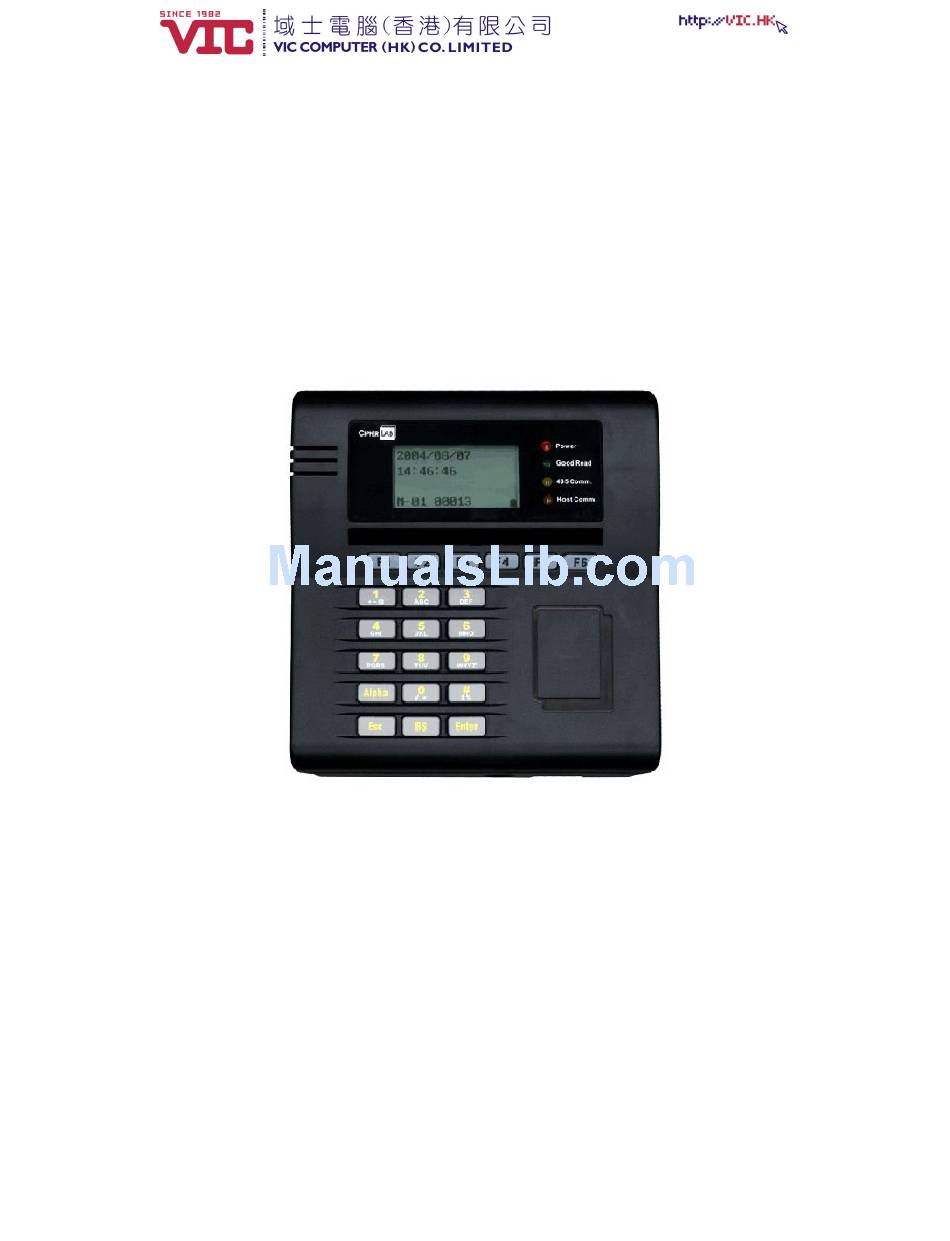

  • Page 1 5000/5100 Terminal Installation Guide...
  • Page 2 Introduction This installation guide is mainly focus on the hardware installation for the 5000/5100 Terminal. Before the terminal installation, we should know some features of the terminal. 5000/5100 Product features: 2, 4 or8 MB for expandable data memory, powered by backup cell...
  • Page 3 Digital Outputs There are totally 4 groups of digital outputs. Each is a relay that is able to sustain 1 A under 30 VDC or 0.3A under 125VAC. Both normal open (NO) and close(NC) contacts are provided to accommodate application needs. These relays are sufficient to provide direct control over normal house door electric lock, alarm and so on.
  • Page 4 RS-485 A standard RS-485 port is also available on the JP3 to constitute multi-station systems. Though it is simple and low cost, care must be taken to ensure proper operations. The rate is 125kbps. Compatible to CipherLAB 510, 520 and so on. Maximum network run length is 1000meters The connections must be in serial.
  • Page 5 Pins Assignment: The pin assignments are listed and described below.
  • Page 6 RS-232 Connections: Make use of a 9-pin connector (DB-9) at PC end, and wire pins as follows: RS-485 Connections: Connections between every two terminals are set up through RS-485 interface. When more than two of the terminals are connected (as a multi-station system), a host only needs to connect to the first one terminal (master) and it can then communicate with the rest terminals (slave).
  • Page 7 When settings are completed, you may proceed with physical connection between every two terminals. To setup RS485 connection, the communications cable must be wired as shown below: Now you will finished the wiring of the Terminals network. The next step is to operate with the terminal and the software.

This manual is also suitable for:

5100
