DSR PST-900X Owner's Manual

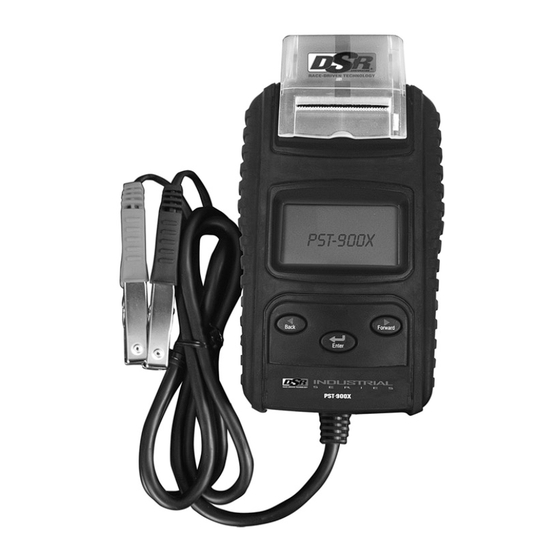

Battery tester with printer for 6 and 12 volt batteries and 24 volt charging systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

PTI900X
PST-900X
Battery Tester with Printer
For 6 and 12 Volt batteries
and 24 Volt charging systems
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PST-900X and is the answer not in the manual?

Questions and answers

Summary of Contents for DSR PST-900X

  • Page 1 PTI900X PST-900X Battery Tester with Printer For 6 and 12 Volt batteries and 24 Volt charging systems OWNERS MANUAL...

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................3 PERSONAL SAFETY PRECAUTIONS ................3 FEATURES ........................3 SETTINGS AND INFORMATION RETRIEVAL ..............4 OPERATING INSTRUCTIONS ..................4 TROUBLESHOOTING ...................... 6 REPLACEMENT PARTS ....................7 GLOSSARY ........................8...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. This manual will show you how to use your tester safely and effectively. Please read, understand and follow these instructions and precautions carefully, as this manual contains important safety and operating instructions. WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION.

  • Page 4: Settings And Information Retrieval

    SETTINGS AND INFORMATION RETRIEVAL BEFORE CONNECTING THE TESTER SETTING THE DATE AND TIME 1. Make sure you have put the six 1. Connect the tester to a vehicle battery. 1.5V AA batteries into the battery 2. Press the FORWARD button four times compartment.
  • Page 5 5. The screen will show SET CAPACITY CHARGING SYSTEM TEST and a number with the rating you 1. Clamp the positive (red) clamp to previously chose. To change the the positive (POS, P, +) battery post. capacity to different number, press the Clamp the negative (black) clamp to FORWARD or BACK button.

  • Page 6: Troubleshooting

    NOTE: When testing older model diesel ALT. LOAD VOLTS HIGH – The output engines, the users need to run the engine voltage from the alternator to the battery at 2500 rpm for 15 seconds. The display exceeds the normal limits of a functioning screen will show RUN THE ENGINE UP regulator.

  • Page 7: Replacement Parts

    PROBLEM POSSIBLE CAUSE SOLUTION Display shows HIGH The alternator output exceeds Check the manufacturer CHARGING VOLTS the normal limits of a functioning specifications for the correct limit. WHEN AT IDLE. regulator. Display shows RIPPLE The diodes are functioning No problem is detected. DETECTED NORMAL.

  • Page 8: Glossary

    GLOSSARY SLI Battery VRLA (valve regulated lead-acid) battery These initials stand for Starting, Lighting and Ignition, which are the three basic This type of battery is sealed and functions a battery performs on all normal maintenance-free, with a “bunce” valve vehicles.
