- Page 1 Installation and Operating Instructions Tire Pressure Monitoring System Model No. ：TPV03...
-
Page 2: Table Of Contents
Contents 1. System Introduction 2. Safety Notices 3. Applicable Vehicles 4. System Package Content 5. Operation and Installation of Wireless Tire Pressure Monitoring System 5.1 Installation and Mounting of Digital Receiver 5.1.1 Utilize the Cooling Vent Holder to fasten the Digital Receiver 5.1.2 Replace Mounted-on-Air-Outlet Digital Receiver 5.2 Installation and Demounting of Transmitter 5.2.1 Mounting the Tire with Transmitter on Wheel Rim... -
Page 3: System Introduction

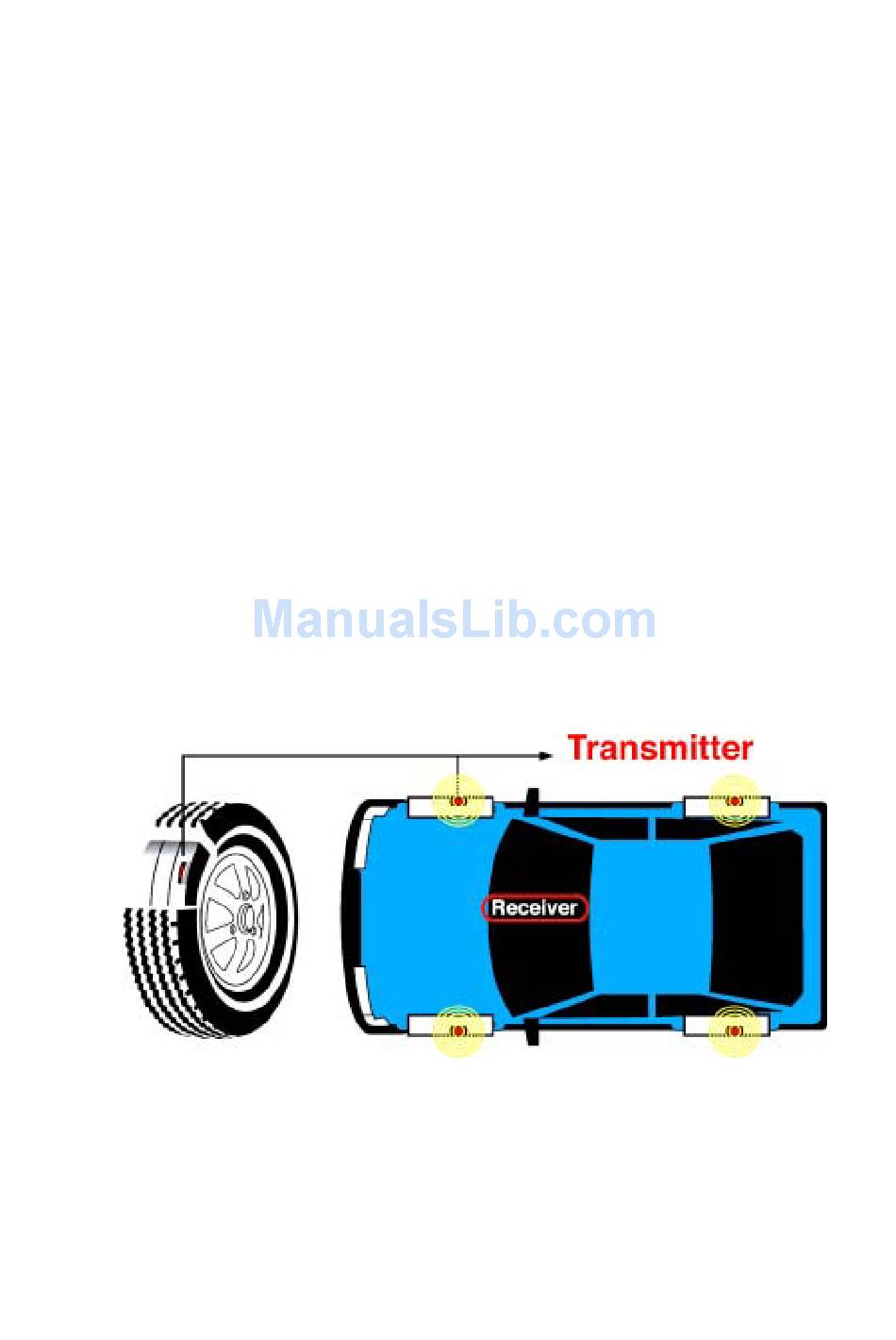

1. System Introduction (1) TPV03 is a wireless tire pressure monitoring system with sensor/transmitter mounted on each wheel plus a set of Receiver with Display placed in driver's cabin. Highly accurate sensors collect tire pressure and temperature data then transmitted by wireless radio to Digital Receiver. -
Page 4: Operation And Installation Of Wireless Tire Pressure Monitoring System
(5) Transmitter: 4 Units (6) Installation Parts for Transmitter (Nut, Core and Washer – each 4 pcs ) (7) TX rubber ring A : 4 pc (8) TX rubber ring B : 4 pc (7) User Manual: 1 pc 5. Operation and Installation of Wireless Tire Pressure Monitoring System Installation and Demounting of Digital Receiver 5.1.1 Utilize the Cooling Vent Holder to fasten the Digital Receiver onto the... -
Page 5: Replace Mounted-On-Air-Outlet Digital Receiver
(2) Screw the Antenna into the Digital Receiver. (3) Fasten the Digital Receiver with the Cooling Vent Holder onto the Air Outlet in the front seat. (4) Plug the DC Power Cable into the Vehicle Cigarette Lighter Socket and Digital Receiver Power Jack. ??P ??P (5) Turn on the Vehicle Power and confirm if the LCD Display ??P ??P... -
Page 6: Mounting The Tire With Transmitter On Wheel Rim
offer any warranty if he installs the product by himself. Tools Required： Tire Changing Equipment Tire Balancing Equipment Torque Wrench 5.2.1 Mounting the Tire with Transmitter on Wheel Rim Notes： Pair Valve Tag that has the same color as the color of text on ID Number Label of Transmitter for the identical tire as indicated in below brackets. - Page 7 (4) Attach the Washer that is the spare part of Transmitter from the outside of the wheel rim onto the valve hole. (5) Attach the Core that is the spare part of Transmitter from the outside of the wheel rim onto the valve hole. ( =>...
-
Page 8: De-Mounting Tire With Transmitter Inside
(7) Install the external antenna into the transmitter valve as the following pictures. (8) Finalize the installation of the Transmitter. 5.2.2 De-Mounting Tire with Transmitter Inside Please demount the product with standard demounting equipment, and demounting procedures could be proceeded by the technicians from our appointed vehicle manufacturer or garage. -
Page 9: Digital Receiver Button Function Description
Digital Receiver Button Function Description Temperature Display temperature of tires after press button Button 35C 35C 36C 36C ↓ (Downward In “General Set Up Mode”, acts as downward button to Button) select function and number. (3) Counter-clockwise In “Special Set Up Mode”, acts as counterclockwise Button button to select tire for programming. -
Page 10: Alarms And Warnings
7. Alarms and Warnings Pressure Threshold Alarm and Warning Should Programming Manual 9.1.1 Tire pressure lower than Manual Threshold Setting Limit are 25psi Pressure Threshold Setting： and 75℃ respectively while A Low Pressure Warning is initiated when ctory-preset value are 23psi and pressure drops below... -
Page 11: Temperature Threshold Alarm And Warning
Temperature Threshold Alarm and Warning Should Programming Manual 7.2.1 Tire Temperature higher than Manual Threshold Setting Limit are 25psi Temperature Threshold Setting： 75℃ respectively while A High Temperature Warning is initiated factory-preset value are 23psi and when tire Temperature rises above the 85℃：... -
Page 12: General Set Up Mode
Press button for more than 2 button (act as downward button) second to go into “General Set Up button (act as upward button) Mode”。 select “Pressure Warning “ setting。 LCD Display will show： button (act as downward button) (act as upward button) to Low Pressure select number... -
Page 13: Restore Factory-Preset Value
Reset： (Reset pressure and temperature to zero. Furthermore. proceed this procedure can cancel alarm status temporarily.) (1) Press button for more than 0.5 (2) Use button (acts as downward second to go into “General Set Up button) and button (acts as upward Mode”. -
Page 14: Exit General Set Up Mode
This setting is in effect after the Transmitters have been stationary for 1st. longer than 10 minutes the vehicle has been accelerated up to the speed of 6 mph (10 kph) to 12 mph (20 kph)。 Transmitter ID Input Via “Search Tx” setting for Digital Receiver Module 2nd. -
Page 15: Special Set Up Mode
9. Special Set Up Mode 9.1 Tire Exchange Mode 9.1.1 Enter into “Special Set Up Mode” Simultaneously press button button (act as downward button) for more than 2 seconds to enter button (act as upward button) “Special Set Up Mode”。 select ”Exchange Location”... -
Page 16: Transmitter Id Change Mode
Transmitter ID Change Mode Note: (1) This Mode is used for Transmitter replacement and the new Transmitter ID need to be inputted. (2) Whenever Transmitter/s is/are out of order and call/s for replacement, the defective one/s has to be specified its original color of text on label or its original paired Valve Tag color to ensure the new one/s for replacement is/are of the same color of original one/s, and which with the rest of original Transmitters constitute a set. -
Page 17: Set Pressure Unit Mode
Set Pressure Unit Mode Simultaneously press button button (act as downward button) for more than 3 seconds to enter button (act as upward button) “Special Set Up Mode”。 to select ”Set Pressure Unit” setting。 The LCD Display will show： Press button to accept this special function setting。... -
Page 18: Exit Special Set Up Mode
button (act as counterclockwise button) and button (act as → clockwise button) to move cursor Press will comfirm and come back to mark Display Wheel Location “Special Set Up Mode”。 button to cancel or set ＊ Press signal。 →01* 02* 9.7 Exit Special Set Up Mode Press button again；LCD Display will back to initial screen。... -
Page 19: This Limited Warranty Provided By Mobiletron Does Not Cover
10.2 This Limited Warranty Provided by Mobiletron Does Not Cover (1) Product that have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, repair or service in any way that is not authorized by Mobiletron. (2) Damage that occurs in shipment or due to act of God. -
Page 20: Technical Specifications
13. Technical Specifications 13.1 Transmitter (1) Operation Condition Description Value Accuracy Units Pressure Range 0 ~ 45 +/- 1 Rated Pressure ℃ -20 ~ +125 +/- 2 Operating Temperature ℉ -4 ~ +257 +/- 3 Operating Humidity 0 ~ 100 (2) Radio Frequency Transmitter Description Value... -
Page 21: Tire Rotation Table
Remark: For the first installation or the rotation in the future, please keep the position of the tire corresponding with the Transmitter, so the receiving position of the tire can correspond with the tire pressure and tire temperature correctly. Manufacturer: Moniletron Electronic ,Inc. Telephone: +886-4-25683366 Address: No.39, Sec 3, Chung-Ching Rd., Ta-Ya,... - Page 22 The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.
