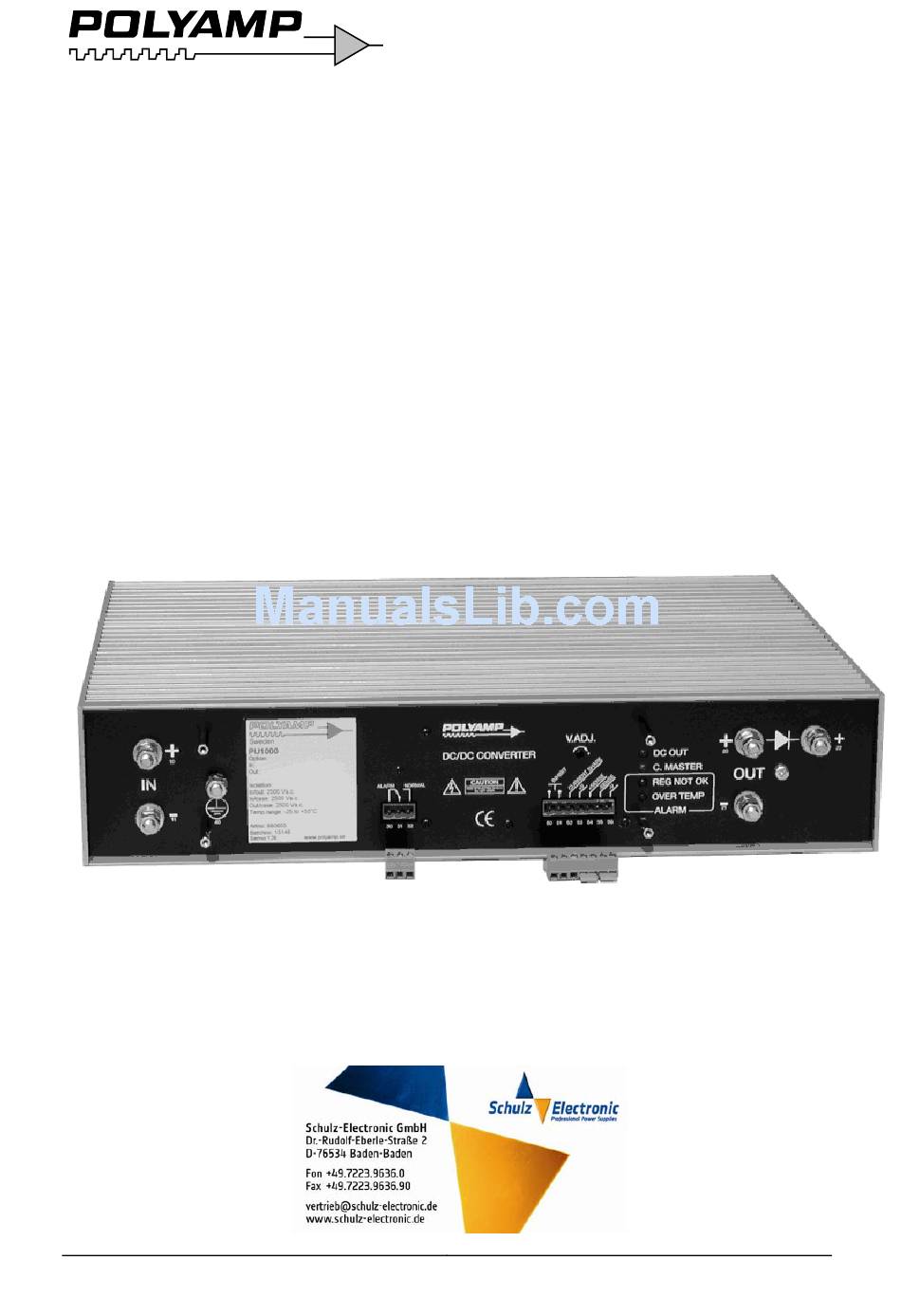

- Page 1 PU1000/PU600 INSTALLATION MANUAL PU1000/PU600 Installation manual 10229-15.doc Polyamp AB, Sweden www.polyamp.com Page 1 (10)
- Page 2 Manual This manual is as complete and actual as possible at the time of printing. However, the information may have been updated since then. Polyamp AB reserves the right to make changes in this manual without notice. The exclamation point within an equilateral triangle is intended to alert the user to presence of important...
-
Page 3: Table Of Contents
PU1000/PU600 INSTALLATION MANUAL CONTENTS 1 BEFORE INSTALLATION..........................4 2 INSTALLATION...............................4 3 PARALLEL CONNECTION ...........................5 3.1 S ........................5 ERIES DIODE ON THE OUTPUT 3.2 C ............................5 URRENT SHARING ..................6 OLTAGE ADJUSTMENT WITH CURRENT SHARING 4 MULTIPLE LOADS AT THE OUTPUT ......................6 4.1 S ............................6... -
Page 4: Before Installation
The disconnection device must The converter type name consists of model name be properly labelled and easy accessible. PU1000 or PU600 followed by input code and output voltage. Two examples: • ”Type: PU1000 110/48” has input code ”110”... -
Page 5: Parallel Connection
PU1000/PU600 INSTALLATION MANUAL 4. Connect the input cables. Bundle input cables series diode is not used. This might cause excessive together at the terminals separated from the output heat or even fire in the faulty unit. cables. Make the same arrangement on the output If the series diode is used, the alarm relay will side. -
Page 6: Voltage Adjustment With Current Sharing
PU1000/PU600 INSTALLATION MANUAL master converter breaks down. Turn clockwise on the V.ADJ potentiometer on the other units slowly until the ”C. MASTER” LED is lit or almost lit. 4 Multiple loads at the output If you are using several loads, we recommend fusing them separately with fast acting fuses on the positive output branch. -
Page 7: Alarm
PU1000/PU600 INSTALLATION MANUAL gives you that Δt = 10ms. The output voltage is 2. Normally Closed (NC). 24V, and you can accept 10% voltage drop => ΔU=24 x 0.1= 2.4V. i. Connect twisted-pair (0.25mm -1.5mm from centre pin of the removable alarm... -
Page 8: Internal Sense
PU1000/PU600 INSTALLATION MANUAL load. The maximum voltage compensation is 5% of 1. Use a twisted-pair (0.25mm -1.5mm ) with a nominal output voltage. maximum length of 3.0m for connection of the inhibit. Do not disconnect the negative power connection from the converter to the load before the positive,... -
Page 9: Dc Isolation Test Input To Output And Input To Case
5. Check that the ”SENSE” is connected correctly. and input to case See 6 Sense on page 7. 6. The unit is broken. Contact your Polyamp You can also test 2500Va.c. for one (1) minute dealer. between input to output and case on units with input codes 110, 220, 440, C and D. -
Page 10: The Converter Starts And Stops Repeatedly
PU1000/PU600 INSTALLATION MANUAL Some models have ”inrush current limit”. Fore further information consult 9 Inrush current limit on page 8. 2. The unit is broken. Contact your Polyamp dealer. 11.3 The converter starts and stops repeatedly All models have an over/under voltage protection which shuts down the converter if the input voltage is not within specified limits (see front label).
