Summary of Contents for OBM OBM-A07

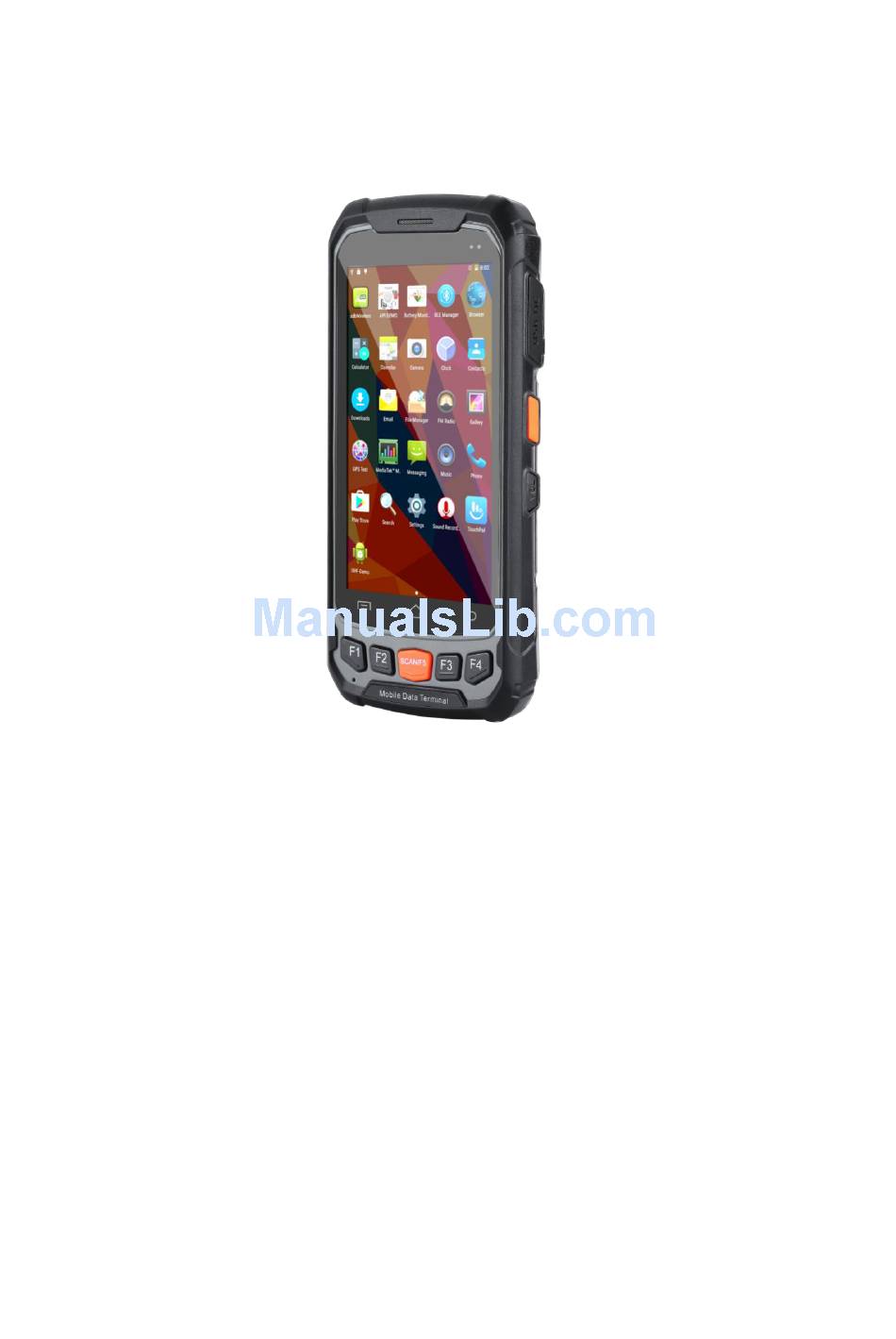

- Page 1 OBM-A07 Quick Manual...
-
Page 2: Table Of Contents
Quick Manual Hardware Description Contents Features and Structure..............................3 Basic Operation.................................3 Wake up................................3 Shutdown................................3 Software Installation and Data Transfer with a PC....................3 Uninstall Apps..............................4 Add Google Playstore Account..........................4 Remove Google Playstore Account........................4 Remove WLAN Access............................5 Useful Resources..............................5 Demo Software................................. -
Page 3: Features And Structure
C4 RED Quick Manual Features and Structure Basic Operation Wake up System would enter standby mode automatically after the default 1 minute idle status, or we can press the power button to enter the standby mode forcedly; For tablets in standby mode, please the power button slightly to wake it up; Shutdown Press the power button for seconds and select the option of “Power off”... -
Page 4: Uninstall Apps
Quick Manual Hardware Description You can also try to pull this information from the top of the screen. Double touch on this information; this will open the USB computer connection settings. Only MTP and PTP provide read/write access from your PC to the device. The device will appear in Windows Explorer as portable device labelled “full_rlk6735m_65c_1_I1”. -
Page 5: Remove Wlan Access
C4 RED Quick Manual Remove WLAN Access Open “Settings” => select “Wi-Fi” => click on connected network => select [FORGET] in bottom left corner Useful Resources androidtipsandhacks.com androidcentral.com Mobile RFID Device Page 5 of 8... -
Page 6: Demo Software
Quick Manual Hardware Description Demo Software Demo-Software KeyTest51 Let you test the left/right buttons and the 6 keypad buttons. ScanServer This software provides a keyboard emulation for barcode readings. Scan switch enable/disable keyboard emulation Prefix send additional button before the code reading ... -
Page 7: Technical Data
Drop Specifications 5ft./1.5 m drop to concrete across the operating temperature range Sealing IP65, IEC compliance ±15kv air discharge, ±8kv direct discharge DEVELOPMENT ENVIRONMENT OBM Software Development Kit Language Java Environment Android Studio or Eclipse DATA COMMUNICATION TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;... - Page 8 Quick Manual Hardware Description QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. COLOR CAMERA Resolution 8.0 megapixel Lens Auto-focus with LED flash RFID READER(OPTIONAL) Frequency 125KHz/134.2KHz(FDX-B/HDX) RFID LF Protocol ISO 11784&11785 R/W Range 2cm to 10 cm...
