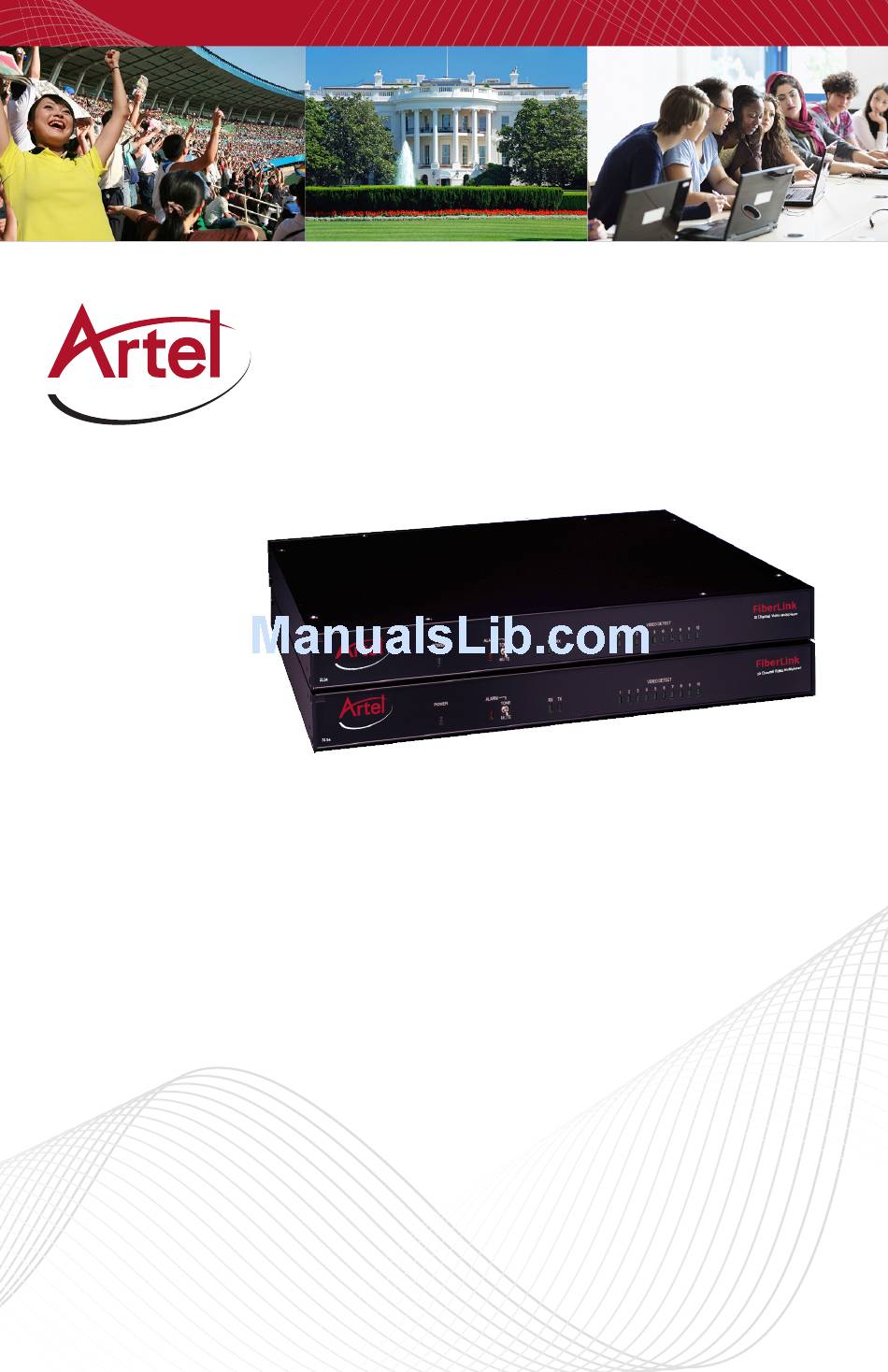

- Page 1 MANUAL FiberLink® 3334 Series 10 Channel Video Multiplexer/ Demultiplexer with Bi-Directional Data Installation and Operations Manual WWW.ARTEL.COM...
-
Page 2: Table Of Contents
Contents FiberLink 3334 Series Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features . -
Page 3: Welcome
FiberLink 3334 Series Welcome Thank you for purchasing Artel Video Systems’ FiberLink 3334 Series . The all-digital FiberLink 3334 series allows you to multiplex up to 10 video channels onto a single fiber optic core offering unsurpassed signal distribution efficiency . FiberLink 3334 is compatible with FiberLink Matrix offering you the ability to route up to 320 video signals . -
Page 4: Technical Specifications
Technical Specifications FiberLink 3334 Series Technical Specifications Model Part Number Specification Unit Type Part Number Transmitter Box 3334-S7 or 3334-F9 Receiver Box 3335-S7 or 3335-F9 General Specifications Operating Wavelength 1310 nm (S Version 1550 nm (F Version) Optical Connectors ST (S Version) -
Page 5: Optical Loss Budgets
Optical Loss Budgets | Maximum Useable Distance FiberLink 3334 Series Data Specification Unit Type Part Number Number of Channels 1 (bi-directional) Interfaces Supported RS-232, RS-424, RS-485 2 Wire & 4 Wire Switch Selectable Maximum Data Rate 100 Kbps Protocols NRZ, NRZI, RZ, Manchester, Bi-phase Data Connectors Screw Terminal Block Optical Loss Budgets and Maximum Useable Distance... -
Page 6: Installation Instructions
Installation Instructions FiberLink 3334 Series Installation Instructions The FiberLink 3334 Series of fiber optic transmission systems are ready for immediate use and do not require any special tools or equipment . However, an Optical Power Meter, such as the FiberLink 6615, can be useful in determining optical loss budgets during your systems design and maintenance . -
Page 7: Alarm Switch Settings
Alarm Switch Settings FiberLink 3334 Series Alarm Switch Settings & Options When an alarm condition occurs, the red Alarm LED on the front panel will blink, the inter- nal piezo sounder will beep and the external contacts will be activated (see Alarm Output Settings) . -
Page 8: Data Connections
Data Connections FiberLink 3334 Series Data Connections Data terminal block positions 1 through 6 can be used as data inputs or data outputs de- pending upon the protocol selected . RS-232 Pin Position Operation Pin 1 Signal Common Pin 2 Signal to be transmitted Pin 3 Pin 4... -
Page 9: Data Configuration
Data Configuration | Protocols FiberLink 3334 Series Data Configuration FiberLink 3334 supports RS-232, RS-422 and RS-485 data . Configuration is as follows: Switch Description: 2 Wire/4 Wire Mode Selection Protocol Selection Not Used 10 11 12 Termination Selection Time Interval Protocols RS-232 RS-422/484 4-Wire Point-to-Point... -
Page 10: Timing
Data Configuration | Baud Rates | Termination FiberLink 3334 Series Baud Rates: 2400 (4.73 ms) 4800 (2.20 ms) 10 11 12 10 11 12 9600 (1.10 ms) 19.2k (620 uSec) 10 11 12 10 11 12 38.4k (300 uSec) 57.6k (180 uSec) 10 11 12 10 11 12 76.8k (150 uSec) -
Page 11: Important Notes
Data Configuration | Notes FiberLink 3334 Series Data Circuit Notes: Even when installed exactly as directed, it is possible that the data function may fail to operate properly when using FiberLink units in either the RS-485 2-Wire Auto Tx/Rx more or the RS-485 4-Wire Multi-Drop mode . -
Page 12: Operating Pointers
Operating Pointers | Troubleshooting FiberLink 3334 Series Operating Pointers Remember to check attenuation of the fiber optic cable . The system will only operate properly if these specifications fall within the range of the system’s loss budget . Troubleshooting Multimode fiber optic cable contains an optical fiber with a light carrying “core” that is only .0025 inches (62 .5 microns) in diameter . -
Page 13: Maintenance And Repairs
. They have been designed for long, reliable and trouble-free service and are not normally field repairable . Should difficulty be encountered, Artel Video Systems maintains a complete service facility to render accurate, timely and reliable service of all products . -
Page 14: Accessories And Related Products
Accessories and Related Products FiberLink 3334 Series FiberLink 6656 Visible Fault Locator The FiberLink 6656 is a light-weight, hand-held tool used to quickly troubleshoot faults in the continuity of both single-mode and multimode fibers . High-intensity visible laser allows for visible fault location of breaks and microbends in both single-mode and multimode fibers . - Page 15 FiberLink 3334 Series FiberLink 3334 Series User’s Manual Page 15...
- Page 16 Solutions for most video, audio, and data formats Multimode and single mode versions Designed and manufactured in the USA Training and installation support available 24x7x365 technical support available Artel Video Systems Corp. 5B Lyberty Way, Westford, MA 01886 USA T: 978-263-5775 All specifications subject to F: 978-263-9755 change without notice.
