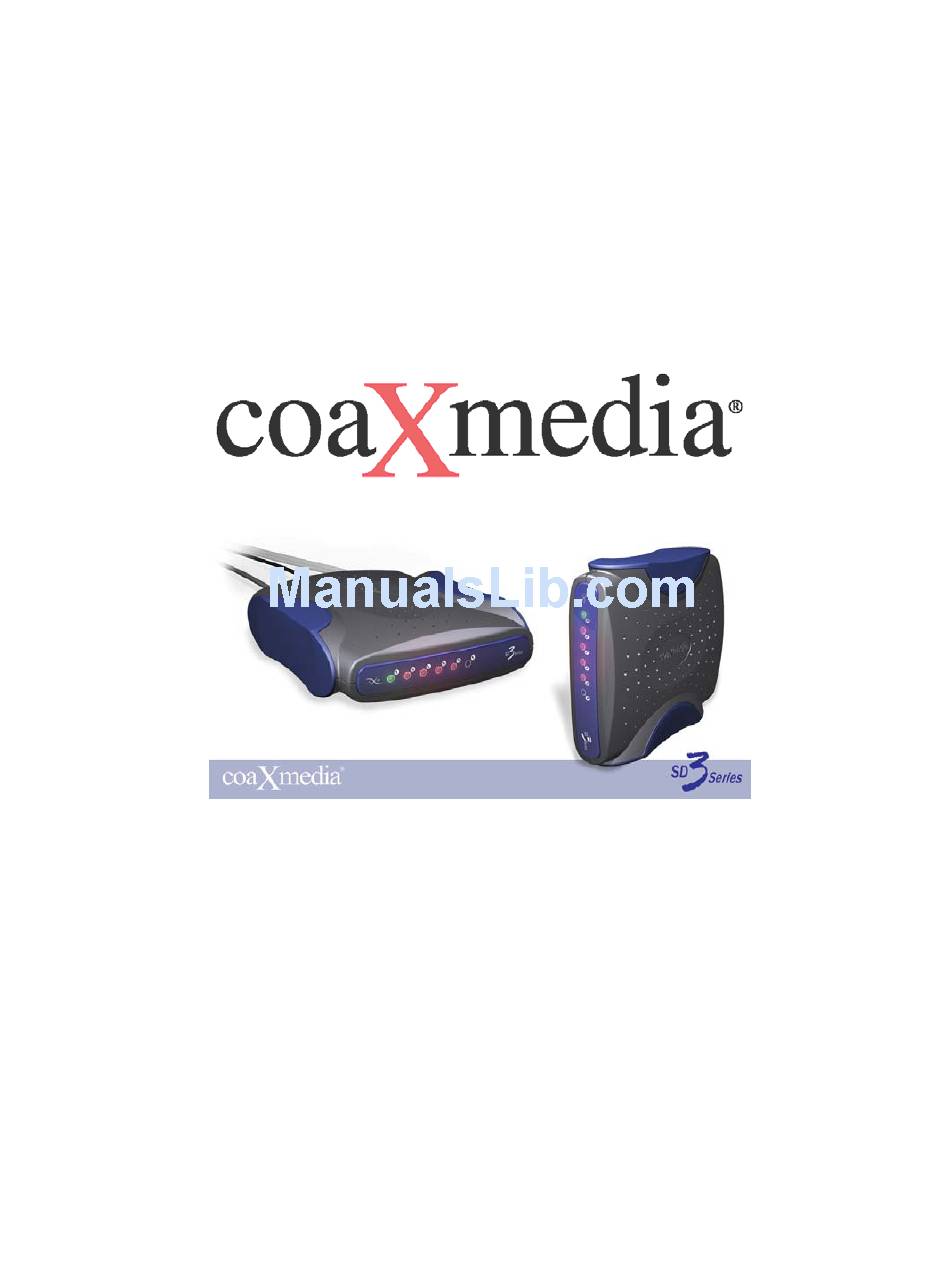

- Page 1 Series 7000 SD300 Access Appliance User’s Guide Revision 2 July 2003 60100x-00x Preliminary...
- Page 2 U.S. Export Administration Regulation is prohibited. This document may not be reproduced, in whole or part, without the written permission of coaXmedia, Inc. The contents of this document are subject to change without notice. coaXmedia, Inc. assumes no liability for damages resulting from the use of this product or for the information contained in this manual.
-
Page 3: Limited Warranty
Therein, coaXmedia does not warranty that the products will be error free or will operate without interruption. coaXmedia reserves the right to revise or update its products, software, or... - Page 4 Cet appareil numérique de classe B est conforme à la norme Canadienne NMB- 003. NEC Compliance The SD300 Access Appliance is intended to be connected to a cable system, which has been properly grounded in accordance with the National Electric Code. UL Compliance To insure proper operation and UL compliance of the SD300 Access Appliance in the USA, only use a GlobTek model 48-5-1000R power supply.
-
Page 5: Table Of Contents
Series 7000 Table of Contents Table of Contents ................. i Contact Information ..............1 Important Rules for Safe Operation........2 Service ................. 3 Introduction ................4 Features ................4 What You Have ..............5 What You Need ..............5 2.3.1... -
Page 6: Contact Information
If after reading through the provided documentation you still have questions regarding your Access Appliance, please contact your service provider See your Service Contract/Agreement for the appropriate customer service or technical support phone numbers. SD300 Access Appliance User’s Guide 1... -
Page 7: Important Rules For Safe Operation
Use caution when moving the product. Use caution whenever moving the Access Appliance. If dropped, resulting damage could render the appliance inoperable or a fire hazard. 2 SD300 Access Appliance User’s Guide... -
Page 8: Service
If the product had been dropped or its enclosure has been damaged. • When the product exhibits a distinct change in performance, such as the inability to perform basic functions, indicating a need for service. SD300 Access Appliance User’s Guide 3... -
Page 9: Introduction
Introduction CoaXmedia welcomes you to the world of Broadband. Through the use of our SD300 Access Appliance and your PC, you can take advantage of the many Internet services available today, and will be ready with high-speed connectivity that is required for the services of tomorrow. -
Page 10: What You Have
Series 7000 What You Have Check the SD300 Access Appliance package. In addition to this User’s Guide (CD), the package should contain: • 1 Access Appliance • 1 Ethernet PC cable • 2 coaxial cables • 1 Diplex-Filter or splitter (depending on SD model) •... -
Page 11: Using This Guide
The icons used in this manual are defined below: Important Notes or Required Reading Note Warnings and Safety Information Stop, review before proceeding 6 SD300 Access Appliance User’s Guide... -
Page 12: About The Access Appliance
On when the Access Appliance is disabled – Disable preventing access to the Internet Blinks randomly if a fault is detected by the Access Appliance Fault On when maintenance or diagnostics is being performed by the central access equipment SD300 Access Appliance User’s Guide 7... -
Page 13: Rear Panel
Power to the Access Appliance and the transformer end plugged into a wall power outlet. Ethernet Used to connect Access Appliance to the Ethernet Connector PC for Ethernet operation. 8 SD300 Access Appliance User’s Guide... -
Page 14: Installing The Access Appliance
These sections provide step-by-step instructions on installing you Access Appliance. Overview The SD300 Access Appliance is easy to install; taking an average of 15 minutes to setup. However, before getting started, it is important for you to read the following information. -
Page 15: Select Location
CATV outlet. Although coaxial cables are provided with your Appliance, they may not be long enough for your installation; if this is the case, longer cables can be obtained at a local store (RG-6 or RG-59 with F-type connectors). 10 SD300 Access Appliance User’s Guide... -
Page 16: Connecting The Access Appliance
Note: To ensure proper operation and UL compliance of product in the USA, only use GlobTek model 48-5-1000R power supply SD300 Access Appliance User’s Guide 11... -
Page 17: Step By Step
Connect the loose end of that coaxial cable to the CATV wall Outlet. 4 Connect the Access Appliance to the Diplexer Locate the remaining coaxial cable included with the Access Appliance and connect one end to the X port of the diplex-filter. 12 SD300 Access Appliance User’s Guide... - Page 18 AC power outlet. If the power adapter’s input voltage specification does not match what is being provided at your AC outlet, contact your service provider or coaXmedia for a replacement. SD300 Access Appliance User’s Guide 13...
-
Page 19: Configuring Your Pc
Double-click on the Network icon. TCPIP IP Address See note Double-click on . Select the tab. * below. IP Address Obtain an IP At the tab, place a check in the Address automatically circle. 14 SD300 Access Appliance User’s Guide... - Page 20 Obtain DNS server address Place a check in the automatically circle. Apply Click , and then click If the computer prompts you to reboot, please do so now. SD300 Access Appliance User’s Guide 15...
-
Page 21: Using Your Access Appliance
You will need to reenter this after you’re done using the coaXmedia SD300. Under Windows 2000, you must be logged in using an account with administrators’ rights in order to make the necessary changes. -
Page 22: Troubleshooting Connection Problems
If this problem persists, contact your service provider for assistance. (See also page 7 for a description of the Front Panel status LEDs.) SD300 Access Appliance User’s Guide 17... -
Page 23: Specifications
Operating temperature 0° to +40° C Storage temperature -40° to +75° C Humidity 10% to 90% non-condensing Physical Specifications 4.26”wide, 5.32” deep, 1.24” height Dimensions Agency and Regulatory Compliance Certifications Canadian UL / ULc 18 SD300 Access Appliance User’s Guide... -
Page 24: Optional Equipment And Replacement Parts
Series 7000 Optional Equipment and Replacement Parts Many optional and replacement parts are available for the SD300 access appliance. If you need to replace or add a part, consult the service provider from whom you obtained this product. These appliance options and replacements are available. Specify the part number(s) as well as description(s) of any part when ordering to ensure correct identification of the item.
