Smartbow W010 User Manual

W01 series wallpoint
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
W01X SMARTBOW Wallpoint
Smartbow GmbH
Jutogasse 3, 4675 Weibern
AUSTRIA
User Manual
W010, W011, W012
T +43 (0) 7732 47200-0
F +43 (0) 7732 47200-91
office@smartbow.at
www.smartbow.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartbow W010

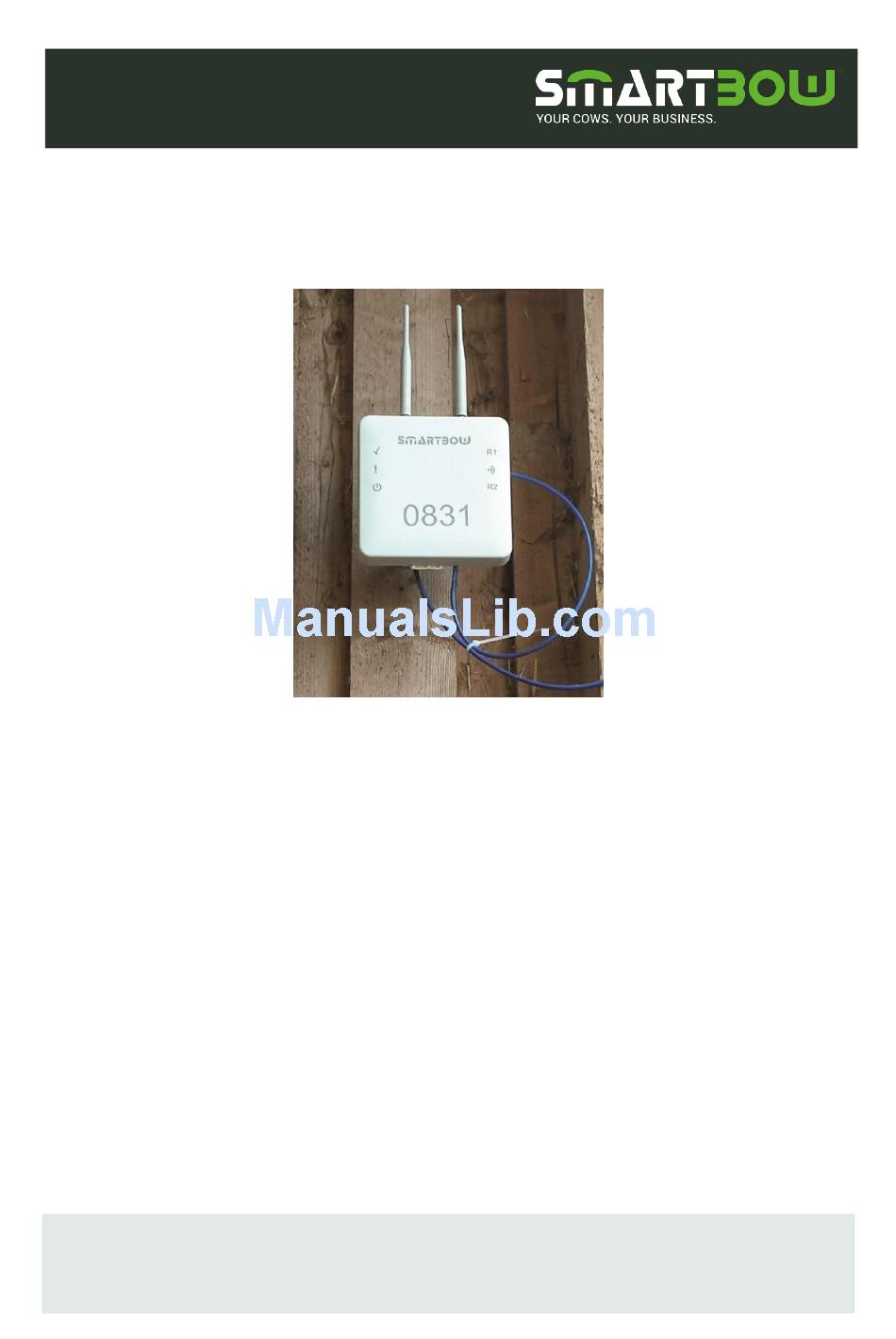

  • Page 1 User Manual W01X SMARTBOW Wallpoint W010, W011, W012 Smartbow GmbH T +43 (0) 7732 47200-0 Jutogasse 3, 4675 Weibern F +43 (0) 7732 47200-91 www.smartbow.com AUSTRIA office@smartbow.at...
  • Page 2 IMPORTANT READ CAREFULLY BEFORE USE! KEEP THE MANUAL FOR FUTURE CONSULTATION! © 2017 Smartbow GmbH. All rights reserved. Smartbow GmbH +43 (0) 7732 47200-0 Jutogasse 3 +43 (0) 7732 47200-91 4675 Weibern, AUSTRIA office@smartbow.at www.smartbow.com...

  • Page 3: Table Of Contents

    Operation Repair and Service Transport Magnetic fields Waste disposal/Environmental protection The SMARTBOW Wallpoint General product information Scope of supply Technical Data Modification on the SMARTBOW Wallpoint 4.5.1 General warranty conditions 4.5.2 Warranty coverage 4.5.3 Warranty exclusion 4.5.4 Support Hotline Installation...
  • Page 4 5.2.3 Installation option I-beam clamp Equipment 100101 Pipe clamp 100104 I-beam clamp 100105 Special attachment for pipe Transport and storage Transport Storage Cleaning Troubleshooting Waste Support Declaration of Conformity Lists 12.1 List of figures 12.2 List of tables Glossary Revision history APPENDIX A: Specification PROFINET / Industrial Ethernet...

  • Page 5: Introduction

    Introduction 1.1 General Information Welcome to the SMARTBOW manual. We are happy that you have decided to buy our solution. You will find the technical information, operating instructions and instructions for maintenance and fault elimination. Read this information carefully before operating the SMARTBOW system and make sure you are familiar with it.
  • Page 6 All SMARTBOW products have been developed to assist farmers in their daily work with their herd as good as possible. Because of variations in farm management, SMARTBOW cannot be responsible for the economic results of each individual farm.

  • Page 7: Electromagnetic Compatibility (Emc)

    Electromagnetic Compatibility (EMC) 2.1 Europe For additional regulatory information, see the Regulatory Compliance homepage on www.smartbow.com following location https://smartbow.com/en/documents/documents-wallpoint.html 2.2 TR-CU The Wallpoint W01X meets the requirements of the technical regulations of customs union of Russia, Kazakhstan, Kyrgystan, Armenia and Belarus. The EAC sign on the type label certifies the conformity to the safety requirment of customs union.

  • Page 8: Safety

    Safety 3.1 Safety Labels The following safety labels are used on the different SMARTBOW products to warn against risks and dangers. Warning of a magnetic field Hazards due to batteries Risk of hand injury European-label for the separate collection of electrical and electronic appliances...

  • Page 9: Operating States

    Applicable local or national safety regulations and rules for the prevention of accidents must be observed in all work performed. The SMARTBOW Wallpoint is exclusively produced for use in livestock sheds. Any other use is only permitted with a written permission of Smartbow GmbH.

  • Page 10: Operation

    3.7 Transport The packaging of the SMARTBOW Wallpoint protects the housing from damage. If you have to return a SMARTBOW Wallpoint to Smartbow GmbH, it should be packed so that external influences cannot cause damage to the product. Page 10 of 32...

  • Page 11: Magnetic Fields

    3.8 Magnetic fields Please be aware that magnetic fields delete data media (diskettes, hard disks, USB flash drives, digital cameras, check cards, credit cards, audio and video cassettes) and can affect or destroy electronic and mechanical components, e.g. pacemaker monitors, compasses, counters, etc. In any case keep a safety distance of about 1 meter.

  • Page 12: The Smartbow Wallpoint

    Figure 1: SMARTBOW Wallpoint The SMARTBOW Wallpoint must not be repositioned by the end user; otherwise we cannot guarantee correct system behaviour. The SMARTBOW Wallpoint cover for cable entry must not be opened at any time. There are no serviceable parts inside.

  • Page 13: Technical Data

    2 pcs. Omni Antennas  2 pcs. Chipboard screws  2 pcs. Dowel  1 pcs. Mounting bracket for SMARTBOW Wallpoint  1 pcs. User Manual 4.3 Technical Data Type SMARTBOW Wallpoint Power over Ethernet Class 2, 48V, IEEE 802.3af...
  • Page 14 Product: Wallpoint Model No.: W010 FCC ID: 2ADP3W010 12561A-W010 PoE: 44-57VDC IP65 Class2 (IEEE 802.3af) MAC: 180B52000E2F Figure 4: SMARTBOW Wallpoint W010 labelling elements rear Page 14 of 32...
  • Page 15 Product: Wallpoint Model No.: W011 FCC ID: 2ADP3W010 12561A-W010 PoE: 44-57VDC IP65 Class2 (IEEE 802.3af) MAC: 180B52000E2F Figure 5: SMARTBOW Wallpoint W011 labelling elements rear Page 15 of 32...

  • Page 16: Modification On The Smartbow Wallpoint

    There are no modifications on the product that need to be performed by the end user, no serviceable parts inside. Smartbow GmbH doesn’t approve any modifications on the products that are made by unauthorized persons. Modifications can have negative effects on the quality and proper function of the products of Smartbow GmbH.

  • Page 17: General Warranty Conditions

    If it turns out during the repair, that it is an error that is not covered by warranty, SMARTBOW reserves the right to charge a handling fee as well as the costs for the repair (material and labour) which refers to an estimate.

  • Page 18: Warranty Exclusion

    SMARTBOW Wallpoint, use of foreign parts, neglect, improper packaging, improper storage or loss in returning the SMARTBOW Wallpoint. This warranty is void if the defect in the SMARTBOW Wallpoints is caused by maintenance or repair, which was performed by someone else than the SMARTBOW or an authorized service partner. The warranty also void if labels or serial numbers of the SMARTBOW Wallpoints or a component of the SMARTBOW Wallpoints is changed or made illegible.

  • Page 19: Installation

    Installation 5.1 Installation of the SMARTBOW Wallpoint The Wallpoint has to be installed only by SMARTBOW technicians or authorized partners. In order to do this a PROFINET cable (specification see Appendix A), without connectors, is required at the position where the SMARTBOW Wallpoint will be installed.
  • Page 20 Figure 9: Screwing the mounting bracket Attach the SMARTBOW Wallpoint to the mounting bracket and tighten plastic nut Figure 10: Attaching the SMARTBOW Wallpoint to the mounting bracket Remove plastic covers and attach the antennas to the SMARTBOW Wallpoint...

  • Page 21: Installation Option Pipe Clamp

    Figure 11: Installing the antennas Connect the SMATBOW Wallpoint to the Network using both M12 connectors. Antennas that are not mounted properly can cause undesired product performance. 5.2.1 Installation option pipe clamp Necessary tools for installation:  13mm wrench Put the first bracket of the pipe clamp around the pipe and add the mounting bracket. Temporarily tighten the nuts by hand.

  • Page 22: Installation Option Special Attachment For Pipe

    Figure 13: Mounting pipe clamp second bracket Tighten the nuts using a 13mm wrench Figure 14: Tightening the 4 nuts 5.2.2 Installation option special attachment for pipe Necessary tools for installation:  Slotted screwdriver or socket wrench  Sheet-iron shears Determine the necessary length of the clamp band.

  • Page 23: Installation Option I-Beam Clamp

    Figure 15: Installation option universal hose clamp set The bent end of the tape is securely clamped between the casing and pipe. 5.2.3 Installation option I-beam clamp Necessary tools for installation:  17mm wrench  6mm Allen key Screw the I-Beam clamps onto the mounting bracket with the 2 supplied M8x20 screws by use of the 6mm Allen key.

  • Page 24: Equipment

    Equipment 6.1 100101 Pipe clamp Use the clamp holder if you mount the SMARTBOW Wallpoint to a pipe with diameters from 26-63mm (1” – 2 ½ “). There are 2 brackets per pack. For mounting instructions see point 5.2.1. Figure 18: Pipe clamp 6.2 100104 I-beam clamp...

  • Page 25: Transport And Storage

    Always use the original packaging for transporting the SMARTBOW Wallpoint to avoid scratching the surface. 7.2 Storage Store the SMARTBOW Wallpoint in dry, cool, clean surroundings. Please take care that the storage temperature range does not exceed the limits shown in chapter 4.3 Technical Data. 7.3 Cleaning Clean the SMARTBOW Wallpoint only in closed state.

  • Page 26: Waste

     Bring the packaging to an official collection point. Smartbow GmbH is focused on sustainability and takes over all duties of the return and disposal for EU manufacturers. Please contact your SMARTBOW service center to dispose of the product environmentally friendly.

  • Page 27: Declaration Of Conformity

    11 Declaration of Conformity Figure 21: Declaration of Conformity SMARBOW Wallpoint W010 Page 27 of 32...
  • Page 28 Figure 22: Declaration of Conformity SMARTBOW Wallpoint W011 Page 28 of 32...
  • Page 29 Figure 23: Declaration of Conformity SMARTBOW Wallpoint W012 Page 29 of 32...

  • Page 30: Lists

    Figure 8: Dowel insertion ..........................20 Figure 9: Screwing the mounting bracket ....................20 Figure 10: Attaching the SMARTBOW Wallpoint to the mounting bracket ..........20 Figure 11: Installing the antennas ....................... 21 Figure 12: Mounting pipe clamp first bracket ....................21 Figure 13: Mounting pipe clamp second bracket ..................

  • Page 31: Revision History

    14 Revision history Date Version Remark 19.10.2017 Original Page 31 of 32...

  • Page 32: Appendix A: Specification Profinet / Industrial Ethernet

    APPENDIX A: Specification PROFINET / Industrial Ethernet  Shielding: Foil and braid shielded  Conductor cross section: 2x2xAWG22/1  Outer Diameter: 6.5mm ± 0,2mm  Working temperature range: -25°C…. +70°C  Installation temperature range: -5°C… +50°C Figure 24: Cross-section of a PROFINET Cable Page 32 of 32...
