Summary of Contents for O2 MC-5H

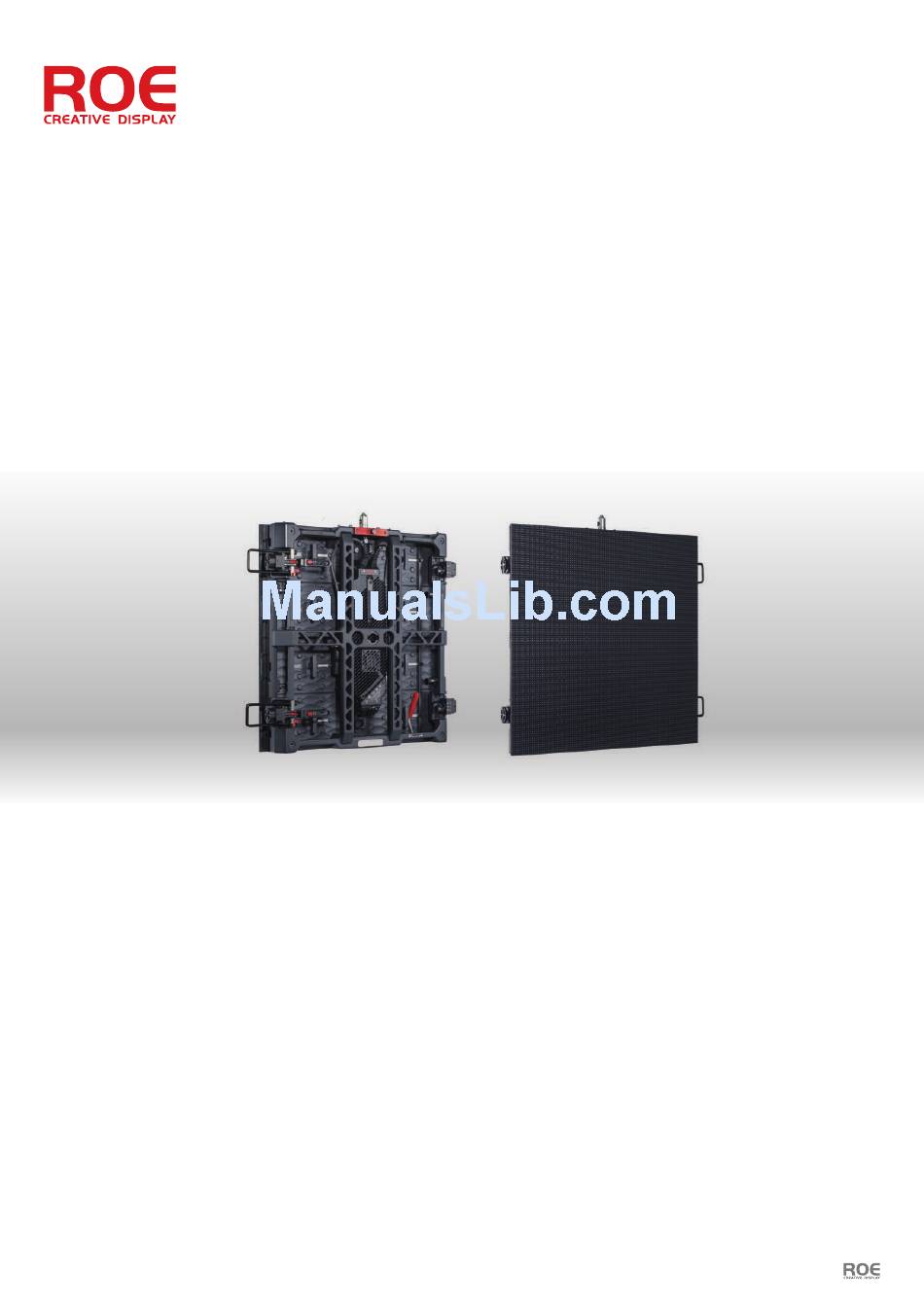

- Page 1 MC-5H User Manual User Manual...
-
Page 2: Table Of Contents
Contents Safety Information Speci cation Connection Accessories Assembly Physical Connection Control System Service and Maintenance Package User Manual... -
Page 3: Safety Information
Safety Information: WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following sysmbols are used to identify important safety information on the product and in this manual: WARNING! WARNING! WARNING! WARNING! WARNING! WARNING! Safety hazard. - Page 4 PROTECTION FROM FIRE Do not stick lters, masks or other materials directly onto LED modules. Do not modify the product in any way not described in this manual. Install only genuine ROE parts in or on the product unless an alternative is described in this manual. Do not operate the product full load if the ambient temperature of power units (Ta) exceeds 45°C (113°...
- Page 5 National Electrical Code in the USA, the length of a data cable must not exceed 100 m (332 feet). Avoid exposure of data cables to accidental contact with lightning or power conductors. MC-5H(HB) LED tiles cannot be hot swapped: Always disconnect the power cord from the control box before connecting or disconnecting the cable string or one of MC-5H(HB) LED tiles.
-
Page 6: Speci Cation
Specification: With black LED,MC-5H(HB) have high performance on contrast and video quality. Depending on integrated molding production and magesium alloy material, its structure is so robust and lightweight, that we can climb and move on the LED wall directly. Installation or Maintenance is very easy. Furthermore, to protect the LED light preferably, Mask increased the brim. -
Page 7: 03 Connection
MC-5H MC-5H ④ 1. Neither Hanging Bar nor Vertical Interconnect Latch Lever can load more than 20 tiles of MC-5H. Notes: 2. When the Input Voltage is 220V, one Power Cable can load 8 tiles of MC-5H; and the Input Voltage is 110V, one Power Cable can load 4 tiles of MC-5H. - Page 8 1. Base Bar can load no more than 8 tiles of MC-5H. Notes: 2. When the Input Voltage is 220V, one Power Cable can load 8 tiles of MC-5H; and the Input Voltage is 110V, one Power Cable can load 4 tiles of MC-5H.
-
Page 9: Accessories
Rear Support Truss Rear Bridge SAP No. SAP No. 206002S0132 309003-00109 SAP No. SAP No. 304012-00292 206002S0178 Dimension Dimension W1295×H1560×D790mm W1123×H933×D677mm Dimension Dimension W1200×H50×D290mm W242×H44×D177mm 24 tiles of MC-5H 8 tiles of MC-5H Max.Capacity Max.Capacity Weight Weight 4.6kg 1.0kg User Manual... -
Page 10: Assembly
B: Bolt D: Supporting tube Note: Case 1 : Hanging bar can load 1—4 tiles of MC-5H. Case 2 : Hanging bar can load 4—20 tiles of MC-5H. Hanging Installation Before hanging installation, according to the number of the tiles, please make sure the ring is in the correct position. - Page 11 1. Install the hanging bar with tiles Install the hanging bar on the tiles with touring frame. And lock the Vertical Connect Latch Lever before raising the screen. Step 1: Connect tiles with hanging bar and align them. Step 2: Loosen the black button, tiles will be attached to the hanging bar automatically, it just works as an auxiliary. Step 3: Lock the Vertical Connect Latch Lever.
- Page 12 Stacking System Base Bar Dimensions: 562mm Diagram: A: King Pin(For Stacking installation) C: Level adjusting screw B: Lock of base truss D: Alignment Pin W×H×D W×H×D 562mm×160mm×90mm Base Bar 1200mm×50mm×290mm Rear Support Truss W×H×D W×H×D Base Truss Rear Bridge 1200mm×80mm×200mm 242mm×44mm×177mm User Manual...
- Page 13 Stacking System Support Components Major components of the Stacking System support assembly are: 1. Base Bar 2. Base Truss 3. Rear Support Truss 4. Rear Bridge(Half Coupler, Brace Arm, Stacking Connector) Rear Support Truss Brace Arm Stacking Connector Half Coupler Adjusting Screw Safely Clip Adjusting Screw...
- Page 14 Stacking Installation 1. Base Bar connection with Base Truss.(Two kinds of di erent installation.) Case1: Lock of Base Truss Adjust the screw and make sure the Base Truss horizontal. Case2: Lock of Base Truss Adjust the screw and make sure the Base Truss horizontal.
- Page 15 3. Tiles Installation Connect the tiles and Base Bar by Vertical Connect Latch Lever, and Rear Support Truss by Rear bridge. 4. Stacking Installation Tile(2×6) Accessories Count: Base Bar: 4×0.6m, 1×1m Base Truss: 4 Rear Support Truss: 4 Rear Bridge: 4 User Manual...
-
Page 16: Physical Connection
Physical Connection: Straight Installation Horizontal connection operation Picture 1 Picture 2 Picture 3 Picture 4 Picture 5 1. Press the horizontal red button to loosen the handle.(pic2) 2. Pull the handle to turn the connecting bar.(pic3) 3. Connect two tiles and align them.(pic 4) 4. -
Page 17: Control System
Control System: The control system of MC-5H consist of receiving card and sending card. Receiving card is integrated with LED tiles. Specifications Working v oltage 100-240V AC Power ＜20W Working temperature -20°C to 45°C Input port Output ports number 4 ports... -
Page 18: Service And Maintenance
3. Pull out the Lock Pin. 4. Hold the handle to push the tile forward. 5. Rope the pothook(Pic 6), and xed tube on the frame, then put down the tile slowly(Pic 7). Light status on the backside of MC-5H. Power Data... -
Page 19: Package
Package 8pcs LED tiles per Flightcase 24pcs LED tiles per T Dolly Pictures Flightcase T Dolly User Manual... - Page 20 20 Feet Container Maximum Carrying Capacity: 11 T Dolly 6000mm 6000mm 2350mm Top View Side View Back View 40 Feet Container Maximum Carrying Capacity: 23 T Dolly 12000mm 2350mm Top View Back View 12000mm Side View User Manual...
- Page 21 ROE Visual Europe B.V ROE Visual Co., Ltd ROE Visual US, Inc www.roevisual.com www.roevisual.com www.roevisual.com Zernikelaan 2a, Bldg 7, Zhong Yuntai Industrial Park, 2514 N Naomi Street, 9351VA Leek, The Netherlands. Shiyan Town, Shenzhen, China. Burbank, CA, 91504. E: europe@roevisual.com E: roe@roevisual.com E: usa@roevisual.com T: +31(0)50 211 0990...
