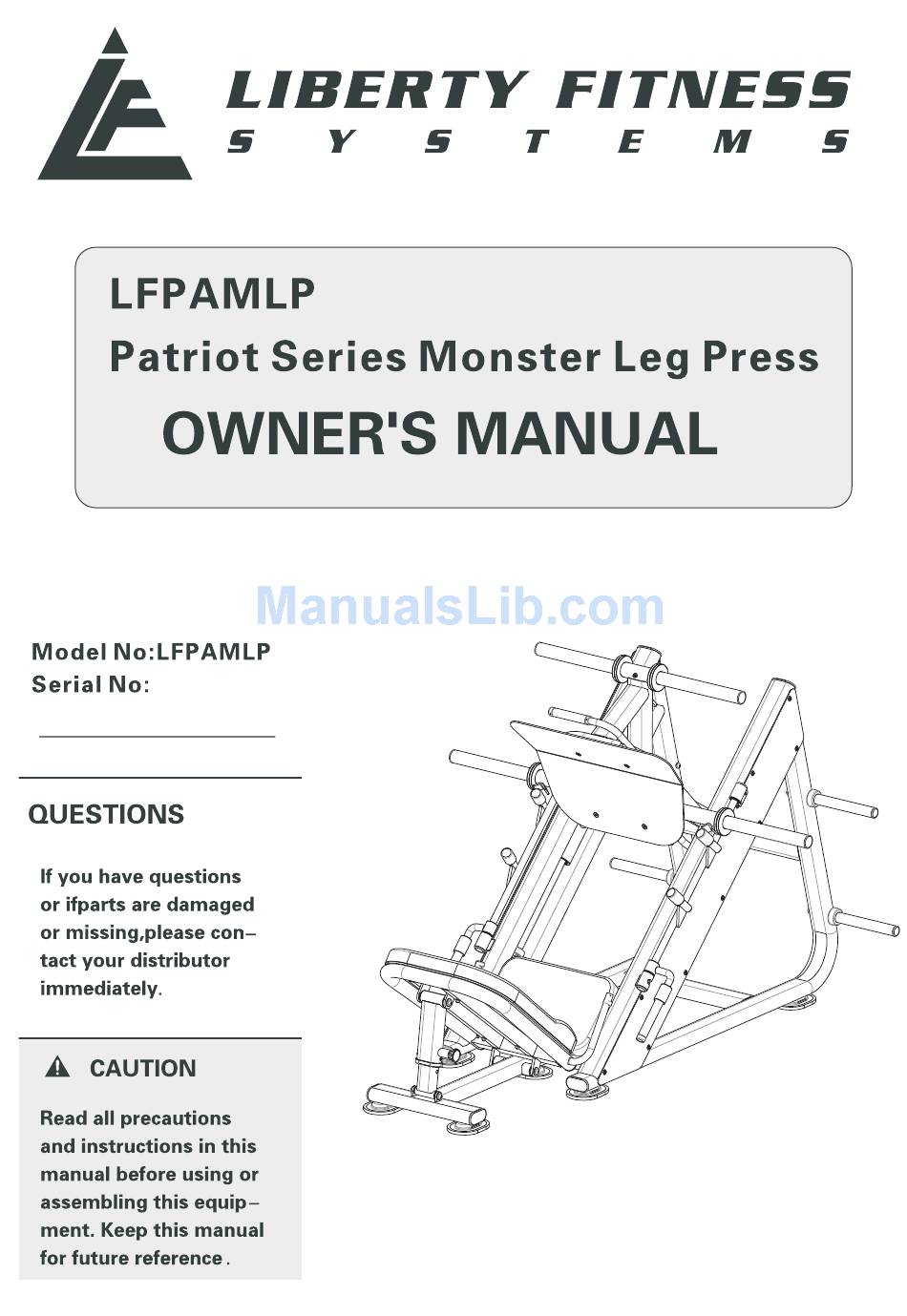

Summary of Contents for Liberty Fitness Systems LFPAMLP
- Page 7 No. Description Drawing No. Qty 1 bottom frame 2 main frame 3 adjustive frame 4 supporting structure 5 seat cushion frame 6 backrest cushion frame 7 pedal frame 8 backrest frame 9 Right rolling frame 10 left rolling frame 11 side barbell stand 12 long barbell pipe 13 pillar 3 14 guild rod...
- Page 8 No. Description Drawing No. 38 elliptical tube stopper 39 elliptical tube stopper 40 circular tube stopper 41 Rubber sleeve 42 circular tube stopper 43 bumper 44 protective mat 45 bumper 46 rubbery cover 47 rubber mat 48 Hexagon socket button head screw M10*30 49 Hexagon socket button head screw M10*25...
- Page 9 Steps Description Drawing No. bottom frame main frame Hexagon socket button head screw M10*25 plain washer φ20*φ10.5*2 spring washer...
- Page 10 Steps Description Drawing No. pedal frame long barbell pipe round rubber pad Hex Socket Head Cap screw M8*70 plain washer φ16*φ8.4*1.6 nylon insert lock nut...
- Page 11 Steps Description Drawing No. main frame side barbell stand bumper Hexagon socket button head screw M10*30 plain washer φ20*φ10.5*2 spring washer...
- Page 12 Steps Description Drawing No. back cushion seat pad Hexagon socket button head screw M8*35 Hex Socket Head Cap screw M8*75 plain washer φ16*φ8.4*1.6 spring washer...
