Summary of Contents for CiA TDC26

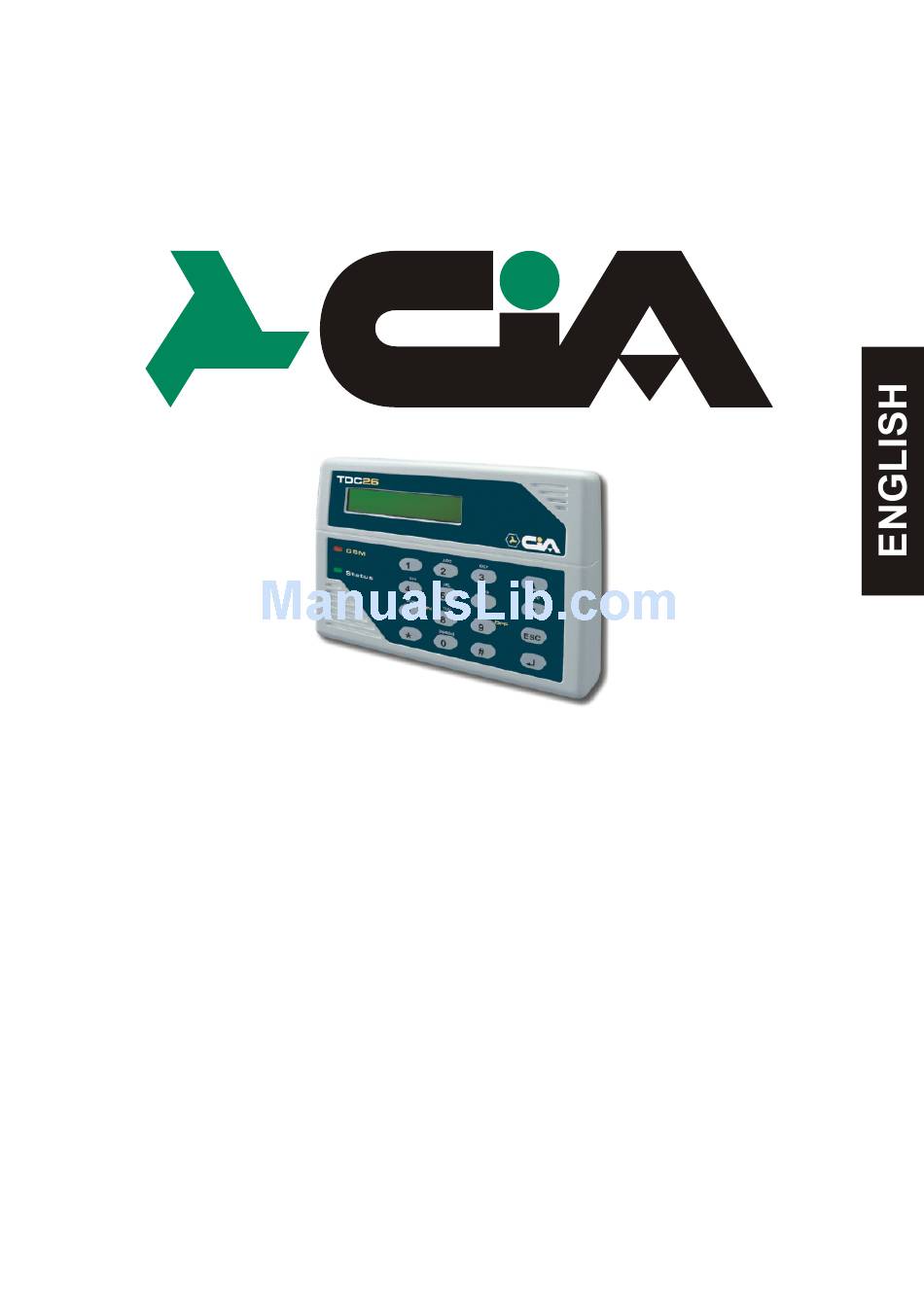

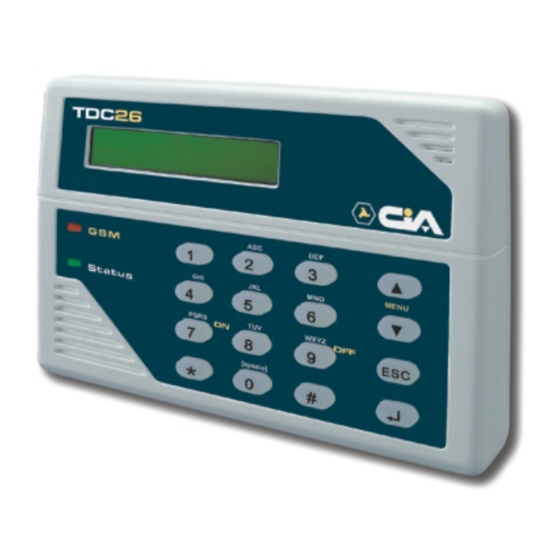

- Page 1 GSM phone dialers with vocal messages TDC26 - TDC36 - TM26GSM - TM66GSM - ERMES2 USER’S MANUAL (for circuits 619aMA-2 .xx, 622aMA-2...
-
Page 2: Table Of Contents
Index Introduction Chapter 1 1.1 Functional characteristics ....................35 1.2 Technical characteristics....................35 Installation Chapter 2 2.1 Connections TDC26 .......................36 2.2 Connections ERMES2,TM66GSM,TDC36,TM26GSM...........37 2.3 Connections TM600Pantenna (ERMES2-TM66GSM-TM26GSM-TDC36) ....39 2.4 Connections antenna (ERMES2-TM66GSM-TM26GSM-TDC36)........39 2.5 Connections line GSM ....................39 Programming Chapter 3 3.1 Accessing programming ....................41 3.2 Directory .........................42... -
Page 3: Chapter 1 Introduction
Message repetitions and calling cycles settable 'Out of order' function CLIP function :One output control by one ring (call without answer) from one phone number in SMS address book, with automatic return of confirming ring Technical characteristics TDC26 TDC36 ERMES2 TM26GSM TM66GSM with function speakerphone Remote ambient listening SMS messagges (128 char.) -
Page 4: Chapter 2 Installation
The antennas can 3. NOT FORCED THE SIM CARD be distanced ulteriorly by the PR-ANT 5mt cable (DO NOT INSTALL MORE The base of the TDC26 can be mounted THAN ONE) on a standard wall-mounted box 503-type. ”. -
Page 5: Connections Ermes2,Tm66Gsm,Tdc36,Tm26Gsm
Installation Installation Installation Installation Installation Installation Installation Connections ERMES2 / TM66GSM / TDC36 / TM26GSM Connections ERMES2 / TM66GSM / TDC36 / TM26GSM Connections ERMES2 / TM66GSM / TDC36 / TM26GSM Connections ERMES2 / TM66GSM / TDC36 / TM26GSM Connections ERMES2 / TM66GSM / TDC36 / TM26GSM Connections ERMES2 / TM66GSM / TDC36 / TM26GSM Connections ERMES2 / TM66GSM / TDC36 / TM26GSM ERMES2 / TM66GSM / TDC36 / TM26GSM... - Page 6 TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual Connections TM600P TM600P SETUP Tamper Int1 Int2 K2 K3 U2 U3 Example of activation channel 2÷6 for ERMES2 and TM66GSM ATTENTION! + Int. In order to use the positive outputs ‘+ Sir’ e ‘+ Int.’ Of burglar central the negative must be in common + Sir.
-
Page 7: Connections Antenna (Ermes2-Tm66Gsm-Tm26Gsm-Tdc36)
Installation Antenna connection (ERMES2 - TM66GSM - TDC36 - TM26GSM) The antennas can be distanced 1.Through I use it of a whichever ulteriorly through extend it of 5 telephone GSM is necessary to eliminate mt PR-ANT(NOT TO INSTALL the access code (code PIN) that enabled MORE THAN ONE IT EXTENDS). -
Page 8: Programming
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual Programmation It is possible to operate the menus in two different modes: using the keys: fino a visualizzare la voce desiderata R e a d y _ ..8 - P R O G R A M M I N G... -
Page 9: Accessing Programming
Channels Input, conditions and activation delay settings. Vocal Messages 6 (in the ERMES2 and TM66GSM) or 2 (in the TDC36, the TDC26 and the of State TM26GSM) vocal messages of 15 second ones relati you to the activations of the channels. -
Page 10: Directory
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual Directory In this menu it is possible to insert or modify the telephone numbers that the combiner must call in case of activation of a channel. Key in the code: (Default MASTER code) Press the button: (Programming) - Page 11 Programmation In order to write the text of the name, it is sufficient to keep one of the keys pressed in order to display in sequence the letters printed on the panel; the available ? ! , . : ; ” ’ < = > ( ) 1 A B C a b c 2 D E F d e f 3 characters are as follows:...
-
Page 12: Voice Messages
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual Once assigned one or more telephone channels to one or more numbers to digitare the key C l i p O f f This will be displayed: In this voice of the menù it is possible to insert the operation that the combinatore executes when telephone call receives one. - Page 13 Programmation Indication on the first line of the display Duration: Operating: It is transmitted for first during 16 sec. C O M M O N M s g . one called of an alarm cycle It follows active the common message P l a y R e c 16 sec.
-
Page 14: Text Messages
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual TXT/SMS messages In this menu, it is possible to insert or modify the SMS that the combiner it sendes in alarm case and the descriptions that appear on the display in order to indicate the state of the input and the outputs. -
Page 15: Channels
Programmation Channels In this menu, it is possible to establish how the channels of the combiner must be activated. Key in the code: (Default MASTER code) Press the button: (Programming) Press the button: (Channels) C H A N N E L S E L E C T C h a n n e l This will be displayed... - Page 16 TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual Once the condition under which the selected channel is alarmed has been chosen, it is possible to choose whether or not to condition this input to INT1, INT2 or to In K1, In K2.. “Conditioning” an input means to make it depend on the presence of another positive to make it operative;...
-
Page 17: Outputs
S E L E C T I O N O u t This will be displayed Select output (from 1 at 2 for TDC26, TDC36, TM26GSM and to 1 at 6 for ERMES2, TM66GSM) press the button .After press the button 3.6.1... -
Page 18: Reference Input
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual 3.6.2 Reference input The reference input is used for the evaluation of the output status (active or inactive), both for carrying out the commands,for determining the information on the display or the voice messages to be sent in case of interrogation by the remote. -
Page 19: Parameters
Programmation Parameters The function parameters of the combiner are set out in this section. Key in the code: (Default MASTER code) Press the button: (Programming) Press the button: (Parameters) R e m o t e C o n t r o l s This will be displayed: Use the to select which parameter to use. -
Page 20: Tones / Pulses
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual NOTE: To the first ignition the combiner demands the choice of the language to use.The available languages are: Italian, English, French, Spanish, Portuguese, German. Select the language with and press 3.7.3 Reply pulse Indicates the number of rings the combiner waits for before responding to the call when remote control is enabled. -
Page 21: Beep No Registr
Programmation Select the number of calls (9 maximum). Use the NOTE: If a “STOP CURRENT CALL” command is sent from the connected telephone during connection (see para 4.2.7), the call is no longer repeated during the cycle. With the “STOP CURRENT CYCLE” or “STOP ALL CYCLES” command, no further calls will be carried out for the current cycle or for all active cycles. -
Page 22: Codes
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual Codes The combiner manages two codes, both of four numbers, one MASTER and one COMMANDS. Using the MASTER code permits total control of the combiner with access to the local and remote commands, and with the possibility of programming the combiner. -
Page 23: Info
Programmation Info This section gathers together useful information for the identification of the combiner model and the firmware release. This information may be requested by technical assistance in order to identify the product more easily and give appropriate suggestions for its use. Key in the code: (Default MASTER code) Press the button:... -
Page 24: Chapter 4 Operation
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual Operation Use of combiner is made easier by the presence of the display which provides information on the activities and status of the combiner. The backlight of the display is automatically controlled: this activates when the user presses any key or when a channel is activated, and it turns off 20 seconds following the end of any operation. -
Page 25: Local Control
Operation Local control It is possible, either by using the keypad or through programming, to interact with the combiner so as to activate its outputs or interrogate its inputs. To access the operation menu items for local control indicated below, the combiner needs to the MASTER code (default “1234”) or COMMANDS code (default "5678") must be keyed. -
Page 26: Output Commands
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual 4.2.3 OUTPUT COMMANDS This gives access to interrogation and command of the outputs.If the combiner is not allarmed and digit a code to acces,this is the voice othat appears on display: Key in the code: (Default MASTER code) -
Page 27: Input Status
Operation 4.2.4 INPUTS STATUS It approaches the visualization of the state of the input. Key in the code: (Default MASTER code) or (Default COMMANDS code) Press the button: (Inputs status) I n K 1 I r r i g a t i o n This will be displayed Use keys or key... -
Page 28: In Service
TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual 4.2.6 IN SERVICE This command returns the combiner to normal operation from an “Out of Order” condition. Key in the code: (Default MASTER code) Press the button: (In Service) S E R V I C E Viene visualizzato for some second: NOTE: This command is only executable by keying in the MASTER code 4.2.7 TELEPHONE... -
Page 29: Remote Control
Operation 4.2.8 REMOTE CONTROL The combiner is able to interpret the DTMF multi-frequency tones commonly generated by telephone apparatus, and therefore to carry out commands or send information during a telephone connection. If the “Remote Control” option is programmed to ON (see para 3.7.1) and “Response Pulses”... - Page 30 TDC26-TDC36-TM26GSM-TM66GSM-ERMES2- User’s manual STOP ALL CYCLES Interrupts the call cycle relative to all alarmed channels. This command stops both the current call cycle and any waiting cycle associated with the other channel. The combiner carries out no further telephone calls to other numbers in the directory, but returns to a waiting state for any successive activation.
- Page 31 Operation LOUDSPEAKER MONITORING Permits listening to the sound in the are in which the combiner is located. The combiner sends 3 beeps of command recognition and activates audio connection with the remote equipment. Key “9” to activate two way comunication with viva-voce (with increased microphone sensitivity).
- Page 32 GSM TELEPHONE DIALER 6IN/6OUT WITH VOCAL MESSAGES GSM TELEPHONE DIALER 2IN/2OUT WITH VOCAL MESSAGES TRADE MARK: The CIA logos is registered by HiLTRON Srl they turn out consistent to the indicated directives of continuation EMC 89/336 CEE DECLARATION OF CONFORMITY...
