Summary of Contents for ShenZhenChainway Information Technology C71

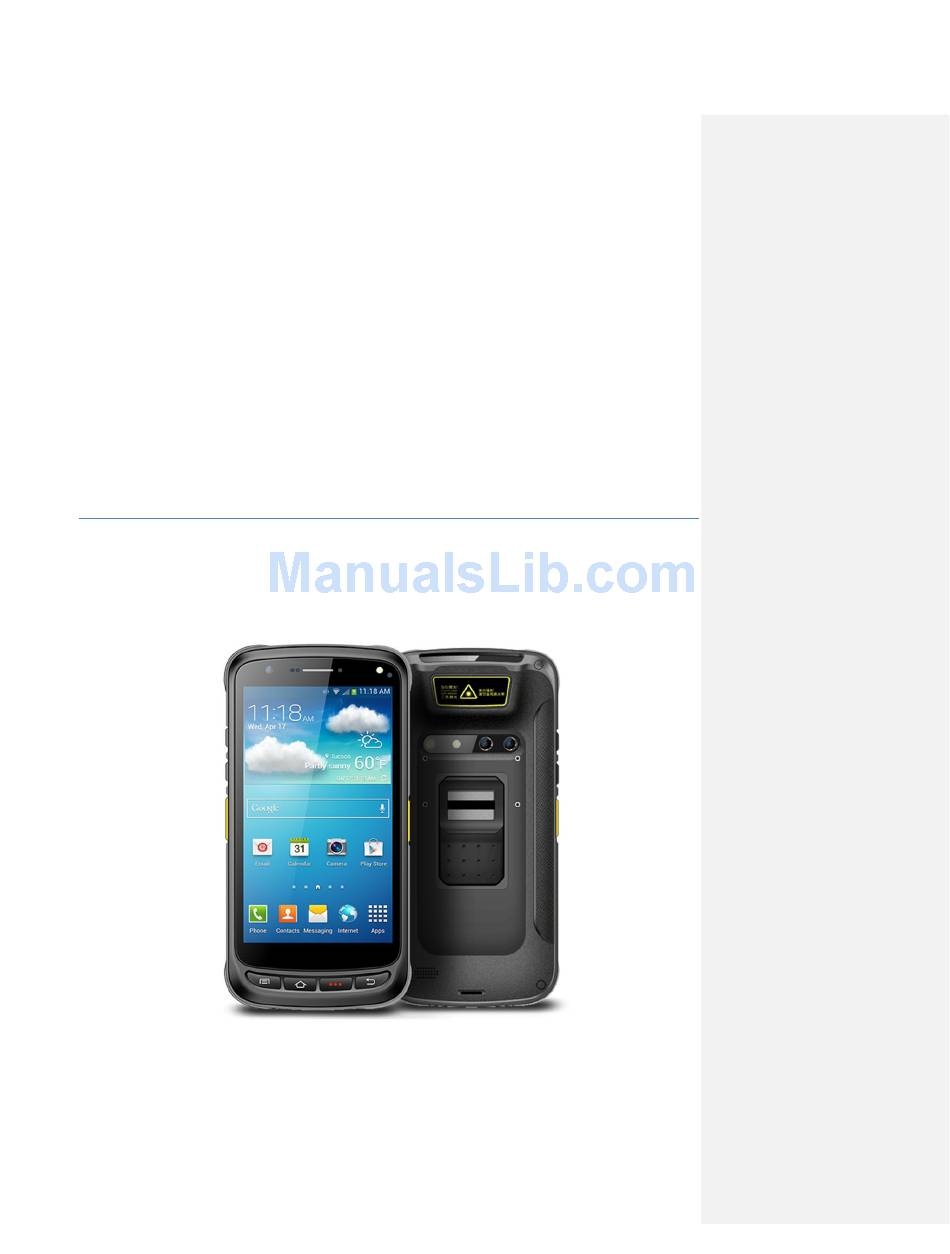

- Page 1 SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO.,LTD Mobile Data Terminal C71 User Manual...
-
Page 2: Table Of Contents
Content Content ..................1 Statement ..................3 Chapter 1 Product Intro ..............4 Intro ..................4 Precaution before using battery ........... 5 Charger ................6 Notes ................... 7 Chapter 2 Installation instructions............8 2.1 Appearance ................8 2.2 Install Micro SD and SIM cards ..........10 2.3 Battery charge ............... - Page 3 7.4 Volume setup ................. 21 7.5 Sensor ................... 22 7.6 Keyboard ................23 7.7 Network ................. 24 7.8 Keyboard emulator ..............25 Chapter 8 Device characteristic ............26 Appendix ..................28 Restrictions: ............错误!未定义书签。 Simplified EU declaration of conformity....错误!未定义书签。 SAR Information ..........
-
Page 4: Statement
Statement 2013 by ShenZhenChainway Information Technology Co., Ltd. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission written from Chainway. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. -
Page 5: Chapter 1 Product Intro
The corporation which deployed C71 will realize the deployment work is simple and maintenance work will be remarkably decreased. C71 is highly rugged, compact and durable. With IP65 water and dust proof capability, the device has met IEC sealing standard. Therefore,... -
Page 6: Precaution Before Using Battery
1.2 Precaution before using battery Do not leave battery unused for long time, no matter it is in device or inventory. If battery has been used for 6 months already, it should be check for charging function or it should be disposed correctly. -
Page 7: Charger
1.3 Charger The charger type is GME10D-050200FUu. Output voltage/current is 5V DC/2A. The plug considered as disconnect device of adapter. -
Page 8: Notes
1.4 Notes Note: Using the incorrect type battery has danger of explosion. Please dispose the used battery according to instructions. Note: Due to the used enclosure material, the product shall only be connected to aUSBInterface of version 2.0 or higher. The connection to so called power USB is prohibited. -
Page 9: Chapter 2 Installation Instructions
Chapter 2 Installation instructions 2.1 Appearance... - Page 10 Buttons instruction Button Description 1.Power Located on left side, press to ON/OFF device. Side Located on left side, its function can be defined by software. 2.Function key button Scanning button located on both sides. There are two scanning 3.SCAN buttons. Display main menu.
-
Page 11: Install Micro Sd And Sim Cards
2.2 Install Micro SD and SIM cards The cards sockets are showing as follows:... -
Page 12: Battery Charge
2.3 Battery charge By using USB Type-C contact, the original adaptor should be used for charging the device. Make sure not to use other adaptors to charge the device. -
Page 13: Buttons And Function Area Display
2.4 Buttons and function area display C71 has 4 side buttons and 4 main buttons, NFC identification area 2D scanning head and Infrared scanning lens locates at front. HD camera, optical fingerprint sensor and flashlight locate at rear. -
Page 14: Chapter 3 Call Function
Chapter 3 Call function 3.1 Calling numbers 1. Click icon 2. Click number key to input phone numbers. 3. Click icon to call. 4. Click icon to end call. 3.2 Contacts 1. Click contacts to open contacts list. 2. Click icon to add new contacts. -
Page 15: Chapter 4 Barcode Reader-Writer
Chapter 4 Barcode reader-writer 1. In App Center, to open 2D barcode scan test. 2. Press “SCAN” button or click scan key to start scanning, the parameter “Auto interval” can be adjusted. Caution: Please scan codes in correct way otherwise the scanning will be failed. - Page 16 Max. radiant power: 0.6mW Wave length: 655nM IEC 62471 (ed.1).
-
Page 17: Chapter 5 Infrared Read-Write Function
Chapter 5 Infrared read-write function 1. Open infrared function in App Center. 2. Click button “Open” to start infrared scanning function. Click “LED” for infrared scanning aim assist. Depending on different application status to compile different commands to realize infrared read and write function. -
Page 18: Chapter 6 Rfid Reader
Chapter 6 RFID reader 6.1 NFC Click App Center, open “NFC” to read and write tag information. -
Page 19: Chapter 7 Other Functions
Chapter 7 Other functions 7.1 PING tool 1. Open “PING” in App Center. 2. Setup PING parameter and select external/internal address. -
Page 20: Bluetooth
7.2 Bluetooth 1. Open “BT Printer” in App Center. 2. In the list of detected devices, click the device that you want to pair. 3. Select printer and click “Print” to start printing contents. -
Page 21: Gps
7.3 GPS 1. Click “GPS” in App Center to open GPS test. 2. Setup GPS parameters to access GPS information. -
Page 22: Volume Setup
7.4 Volume setup 1. Click “Volume” in App Center. 2. Setup volume by requirements. -
Page 23: Sensor
7.5 Sensor 1. Click “Sensor” in App Center. 2. Setup the sensor by requirements. -
Page 24: Keyboard
7.6 Keyboard 1. Click “Keyboard” in App Center. 2. Setup and test the main value of the device. -
Page 25: Network
7.7 Network 1. Click “Network” in App Center. 2. Test WIFI/Mobile signal by requirements. -
Page 26: Keyboard Emulator
7.8 Keyboard emulator The keyboard emulator can be used in multiple operating background and output formats directly. And it includes Prefix/Suffix/Enter/TAB. Please check Keyboard emulator manual for more details. -
Page 27: Chapter 8 Device Characteristic
Chapter 8 Device characteristic Physical characteristics Size 164.2mm*78.8mm*17mm Weight <260g(battery included) Display 5.2 inch，IPS FHD 1920*1080P Touch panel 4 main keyboards, 1 power button, 2 scan buttons, 1 multi-function button Battery Li-ion, rechargeable, 5000mAh Expansion Supports up to 32 GB Micro SD card Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card Audio... - Page 28 Communication 2G： 850/900/1800/1900MHz,max. power33.69dBm 3G： 850/900/1900/2100 MHz, max. power23.52dBm 4G： B1/B3 /B5/B7/B8/B20/B40, max. powe23.359dBm 2G: 850/900/1800/1900MHz, 3G: 850/900/1700/1900MHz, 4G: B2, B4, B7, B12, B17. 批注 [Leo1]: 功率需确认 WLAN IEEE802.11a/b/g/n, embedded antenna, 5 Gigabit WIFI(hotspot is not supported.) wifi 2.4G;max. power 17.75 dBm Wifi 5G-Band1: max.
-
Page 29: Appendix
Appendix... - Page 30 Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
