Summary of Contents for SwissPhone I.SITE III
- Page 1 User Manual I.SITE III Version 1.1 www.swissphone.com...
- Page 2 Document History Version history: Version Date Created by Comments 23 Jul 2013 First edition 25 Sept 2013 Revised and expanded 13 Feb 2014 FCC/IC notices added I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 1/20...
-
Page 3: Table Of Contents
2.3.3 External Connections and Displays 2.3.4 Possible Product Combinations Usage Examples 3 System Description Housing and Electronics Protective Measures Antenna System I.SITE III Hardware Components 3.4.1 Power Supply 3.4.2 Transmission Unit 3.4.3 Controller Board 3.4.4 Displays, Connections, and Operating Controls 3.4.5... -
Page 4: Abbreviations
Random Access Memory R&TTE Radio and Telecommunications Terminal Equipment Software Ultra High Frequency Universal Serial Bus Voltage Alternating Current Voltage Direct Current Video Graphics Array Very High Frequency I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 3/20... -
Page 5: Introduction
2.2 General Description POCSAG transmitter with LAN connection: The I.SITE III is a POCSAG transmitter for digital alarm systems. The transmitter is encased in a rugged IP65-compliant housing, making it suitable for outdoor use. It is controlled via Ethernet LAN, enabling the transmitter to be located remotely. POCSAG messages are created internally and sent via the scalable transmission unit at 1...25W. -
Page 6: Optional Features
If you require one or more of these optional features, make sure to specify these when ordering the I.SITE III. These features can only be added when you purchase the base device. There are a number of Swissphone settings to prevent unauthorized use of these features. For further information, please refer to the “Item Numbers”... -
Page 7: Possible Product Combinations
For this, the customer needs to configure the Digi Connect (Ethernet module with email server) accordingly. The described proprietary Swissphone Telecom AG protocols for integrating the I.SITE III into your solutions are available to third-party suppliers on request. I.SITE III User Manual ©... -
Page 8: Usage Examples
Usage Examples I.SEARCH with I.SITE III (Slave protocol): I.SITE III in stand-alone mode (ASCII Simple protocol): I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 7/20... -
Page 9: System Description

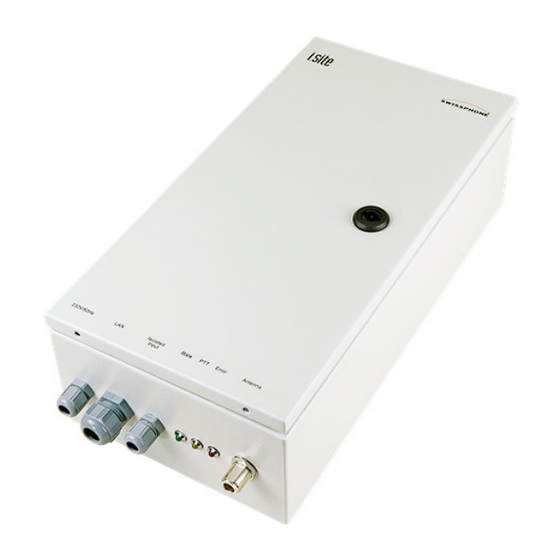

System Description 3.1 Housing and Electronics The I.SITE III is shipped in a rugged metal housing. All electrical connections are provided as water-proof cable feed-throughs. All of the electronics are integrated into a rugged, IP65-protected wall housing. This housing is suitable for indoor and outdoor installation alike. -
Page 10: Transmission Unit
Temperature) FS03 No operating voltage present (AC Power Fail) FS04 (optional) Operating voltage of backup battery below threshold value (ACCU Low) FS05 Incorrect transmitter keying (TX Not Allowed) I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 9/20... -
Page 11: Displays, Connections, And Operating Controls
Transmitter keying is active Controller board is receiving power Reset button (red): Use the Reset button to restart the I.SITE III unit from scratch. All your settings will be retained. PTT button (black): Use the PTT button to test the transmission quality (transmitter keying). -
Page 12: Backup Battery
3.5 Operating Modes The I.SITE III provides a number of different operating modes. These are selected via the 16-step hex rotary dial on the controller board. Following a reset, the position of the operating mode dial is detected and the transmitter is set to the corresponding mode. -
Page 13: Communications Interface
4.1 I.SEARCH Interface Set the I.SITE III’s operating mode dial to ‘2’. In this mode, the I.SITE III can only accept requests from an I.SEARCH via LAN. During start-up, the green LED emits three short flashes. Whenever a message is being transmitted, the yellow LED lights up. -
Page 14: Setting Up Digi Connect
4.3 Setting up Digi Connect 4.3.1 Changing the IP Address This is the I.SITE III’s default IP address: 192.168.1.3 Use a web browser to access the I.SITE III’s IP address. The following window appears: Enter the following access data: Username: root Password: dbps Select ‘Configuration’... -
Page 15: Technical Data
15.8 x 8.3 x 4.7 inches // 400 x 210 x 120 mm Weight 264.75 oz. // 7.5 kg (without optional backup battery) Conformity Data transmission ETS 300 279, ETSI 300 113 Electromagnetic compatibility EN 301489-05, EN55022 Security EN 60950 I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 14/20... -
Page 16: Item Numbers
The following base transmitters and optional features are available for ordering: Item numbers Transmitter VHF4m 0722263 VHF2m 0722262 UHF 400-470MHz 0722261 UHF 450-530MHz 0722264 Item numbers options Backup battery 0722128 Input contacts 0722129 Service contact 0722130 I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 15/20... -
Page 17: Safety Notices
Only operate the device in building locations where it is protected from lightning and • shielded from direct sunlight. Due to the danger of electrical shock, only open the I.SITE III housing if you have been • trained and certified by Swissphone to do so. -
Page 18: Battery Storage
Do not place partially discharged batteries in storage. • Note: If you place the I.SITE III in storage for an extended period of time, there is no need to disconnect the battery from the I.SITE III as the power supply will shut down the battery correctly. -
Page 19: Eu Declaration Of Conformity
EU Declaration of Conformity The I.SITE III complies with all basic requirements of the European 1999/5/EC R&TTE guideline. I.SITE III User Manual © SWISSPHONE Wireless AG Version 1.1 Page 18/20... -
Page 20: Notes For Customers From The U.s. And Canada
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC WARNING: Changes or modifications made to this equipment not expressly approved by Swissphone may void the FCC authorization to operate this equipment. FCC Radio Frequency Interference Statement: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. - Page 21 All rights reserved. All images and technical drawings used in this document are the property of Swissphone Telecom AG and may not be used without our consent. Company and product names mentioned in this document may be protected by trademark, brand, or patent laws.
