H-Band
User Manual
NOTE:
This device complies with Part 15 of the FCC rules.
Operation is subject to following two conditions:
1. This device may not cause harmful interference and,
2. This device must accept any interference received including interference that
may cause undesired Operation of this device.
The changes or modifications not expressly approved by the party responsible for
Compliance could void the user's authority to operate the equipment."
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
Advertisement
Table of Contents
Summary of Contents for PH Technical Labs H-Band-01
-
Page 1: User Manual

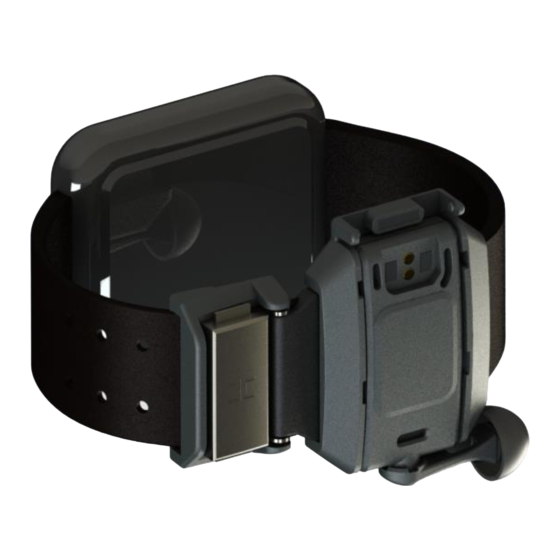

H-Band User Manual NOTE: This device complies with Part 15 of the FCC rules. Operation is subject to following two conditions: 1. This device may not cause harmful interference and, 2. This device must accept any interference received including interference that may cause undesired Operation of this device. - Page 2 H-Band is a Bluetooth audio device built into the strap for Apple Watch or Pebble Time watch or any other wrist watch with 22mm strap with spring-bar. It provides private calling feature to the user using Hands On Talk technology. The main fob can be detached from the frame and can be used as a headset. The H-Band is basically a watch strap with integrated buckle.
- Page 3 Strap length adjustment Hands on Talk for Private call with users Palm The hands on talk technology uses audio fired into the bottom cupped Palm. When this cupped palm is held against user’s ear, it provides total private call experience to the user. The audio would be comparable to user holding the phone to ear.
- Page 4 Wear the watch so that when audio device is flipped out, the speaker hole is at the bottom of the palm (near center depression of the palm base) Cup the hand against the ear and cheek with slight opening at the bottom of the palm. Headset Mode Private call The Bluetooth audio device can also be pulled out of the strap buckle, to be used as an independent Bluetooth headset.
- Page 5 Using the Audio Device Speaker hole Power Button Mic Hole LED Indication Vol - Vol + charger Magnetic LED Indications Powered Off Green flash upon Power Press Normal mode- connected to phone. Blue flash upon Power press Connectable state – will connect when phone is nearby Blue fast Flashing Device is in Discoverable state.
- Page 6 o If device is docked to buckle, flip open the device 180 degrees o If device is outside buckle, short press Power button o The LED should change to Green on for few seconds, indicating call is connected. To Reject Call o Long press function button o The LED should change to fast Red flash for few seconds and switch off During Call...
- Page 7 Music Control The music has to be started on phone first for the band to be in music mode. In music mode Vol + - buttons will forward or reverse the song played on phone. The power button will pull you out of the music mode.
- Page 8 Specs Bluetooth: Output Power: Class 2 Radio Frequency: 2.4GHz to 2.48GHz Bluetooth Range: 10M – 33 Ft Call Modes: Hands on Talk mode and Headset Mode Audio: Echo Cancellation, Auto Volume Gain for wind and external noise Supported Classic Profiles: HFP, A2DP and AVRCP Charging Time: 1 Hour...
