Aircraft
The GDU O2 aircraft, featuring innovative sliding metal arm, aircraft and controller are combined in
one, making it portable to carry, easy to use. The three-axis mechanical gimbal camera can capture 4K
videos and 13.25 megapixel photos; and it is equipped with advanced binocular vision system, support
intelligent obstacle avoidance, visual tracking, gesture recognizing, and other funny functions.
1. Integrated gimbal Camera
2. Downward Vision System
3. Forward Vision System
4. Parameter adjustment/ Data Interface
(Micro USB)
5. Motors
6.Tripods
Remote Controller
O2 remote control is using pulling slide design, making it easy to place mobile devices. It can offer a
and real-time
long-range
time is 1.5 hours.
GDU O2 user manual
7.Head LEDs
8. Propellers
9. Intelligent Battery
10. Battery Level
11. Power Button
12. Tail LEDs
data transmission, maximum distance of 2 kilometers. Maximum working
indicators
Advertisement
Summary of Contents for ProDrone Technology GDU O2
-
Page 1: Remote Controller
GDU O2 user manual Aircraft The GDU O2 aircraft, featuring innovative sliding metal arm, aircraft and controller are combined in one, making it portable to carry, easy to use. The three-axis mechanical gimbal camera can capture 4K videos and 13.25 megapixel photos; and it is equipped with advanced binocular vision system, support intelligent obstacle avoidance, visual tracking, gesture recognizing, and other funny functions. -
Page 2: Specifications

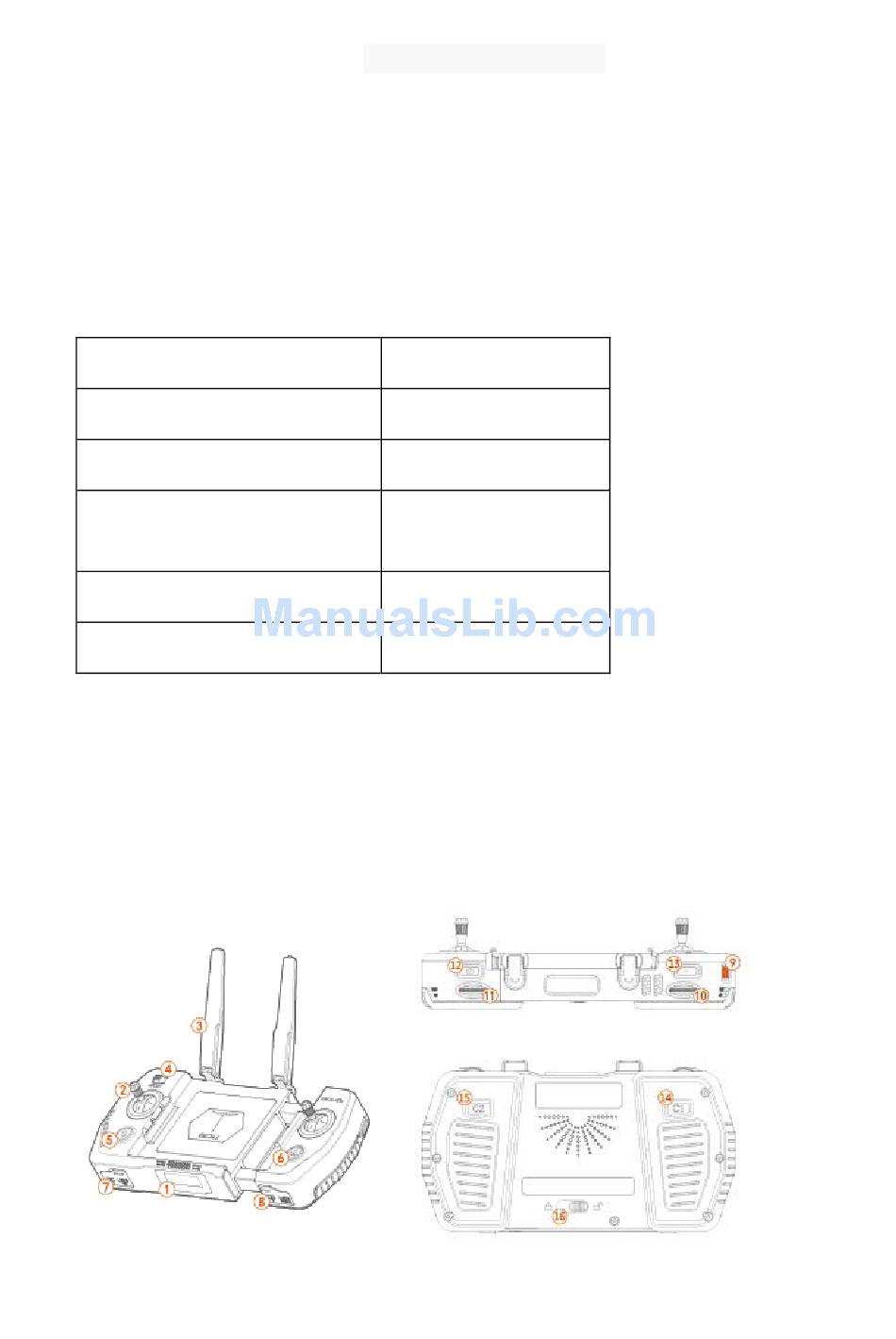

Unfolded Remote Controller 1. LCD Screen 9. Power Button 2. Control sticks 10. Gimbal yaw dial 3. Antennas 11. Gimbal pitch dial 4. Flight Mode Switch 12. Shutter Button 5. One-button Take-off/Vertical landing 13. Record Button 6. RTH Button 14. Customizable Button C1 7. - Page 3 Gimbal Pitch: -80°~30° Controllable range Roll : -30°~30° Yaw : -30°~30° Forward Vision System Sensing range 0.5 to 15 m Operating Environment Obstacle with clear texture and adequate lighting ( lux>15 Common room lights) Downward Vision System ≤10m/S（2m above ground，adequate lighting） Velocity Range Altitude Range 0.3 to 13 m...
-
Page 4: Working Voltage
Video format Supported SD card 32GB Remote Controller and Aircraft Digital transmission frequency Operating Frequency 5.745GHz - 5.810GHz Max Transmission distance Operating Temperature 0- 40℃ WIFI (Image transmission) Transmitting frequency 2.412GHz - 2.462GHz Control distance >1000m 802.11 b /802.11 g /802.11 n 20 Supported protocols and standards Battery... - Page 5 Energy 45.6 Wh Net Weight Approx 240 g Max charging Power Notice： In order to avoid property loss or personal injury, please read through the following messages carefully before using the drone for the first time: Warnings: The Quick Start Guide is designed to help the user to perform the first online flight.
- Page 6 * GDU Mini APP required system version equal or above iOS9.0, Android4.4 . 2. O2 Detachment & Combination Detachment：Before operating O2, please unlock the limit switch of remote controller; then use index finger to push the mobile end (where the C2 customizable button is on its back); remove the remote controller and separate it from the drone;...
- Page 7 intelligence battery. three Check the Battery Levels of remote controller: Press and then hold the power button for seconds to turn on the remote controller. Check the battery level on screen (left side for remote controller; right side for aircraft). Then again press and hold the power button for three seconds to turn off the remote controller.
- Page 8 Input voltage: 100-240V Charge Time: 2 Hours Charge Time: 2 Hours 5. Prepare the Remote Controller 1） Unfold the Remote Controller Antenna Strong signal Weak signal 2） Unlock the Remote Controller 3） Take out the right connecting cable, and get the smaller end go through the slot first.
- Page 9 4) Lock the phone to its proper position and connect the larger end of the cable with the phone charging port; make sure the backward switch is locked. 5) After use, please remove the mobile phone, and fix the connecting cable in the card hook...
- Page 10 6. Prepare the Aircraft 1) Remove the gimbal protective cover. * The gimbal protective cover is used to protect the gimbal; make sure the gimbal protective cover is removed when you are ready to use the aircraft. 2) Unfold the arms and the propellers；...
- Page 11 3) Install intelligent battery 7. Prepare for Takeoff Power on Remote Power on Aircraft Launch GDU Mini App * Ensure the arms and propellers are unfolded before taking off. * The GDU O can be controlled by using the Remote Controller or the GDU Mini app. To switch control mode, please restart the aircraft and then select control mode switch and the corresponding device.
- Page 12 Take off Take off: Move the control sticks in the toe-in directions to unlock the aircraft and activate the motors； Push left stick up slowly to take off. Or press the AUTO TAKEOFF button on the remote controller. Landing: push left stick down slowly until the aircraft lands on the ground. Hold a few seconds until the motors stop.
- Page 13 Or ② Press the RTH button smoothly The default setting of remote control is American mode (including virtual buttons). The left stick controls the aircraft’s altitude and rotation, while the right stick controls its forward, backward, left and right movements. *The motors can only be stopped mid-flight when the flight controller detects critical error.
- Page 14 designed for beginners and classic shot mode is for professionals. Smart Shot Mode Classic Shot Mode 2) Classic Shot Mode 1. Home 5.Waypoint 9. Media in Cloud 10. Photo/Video switch 2. Settings 6. RTH Button 3. Left stick 7.Auto landing 11.Photo/Video Button 4.
- Page 15 1. First Page 5.Auto Landing 9. Current location 2. Settings 6. Erase 10. Map Switch 3. Route planning/Real-time 7.Electronic fence page exchange 4. RTH 8. Plan Waypoints *Please watch the tutorial videos on GDU Mini app or GDU official website www.gdu-tech.com so that you can handle the aircraft and use the functions of intelligent following properly.
- Page 16 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. GDU O2 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled...
- Page 17 environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. GDU Remote Controller This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
