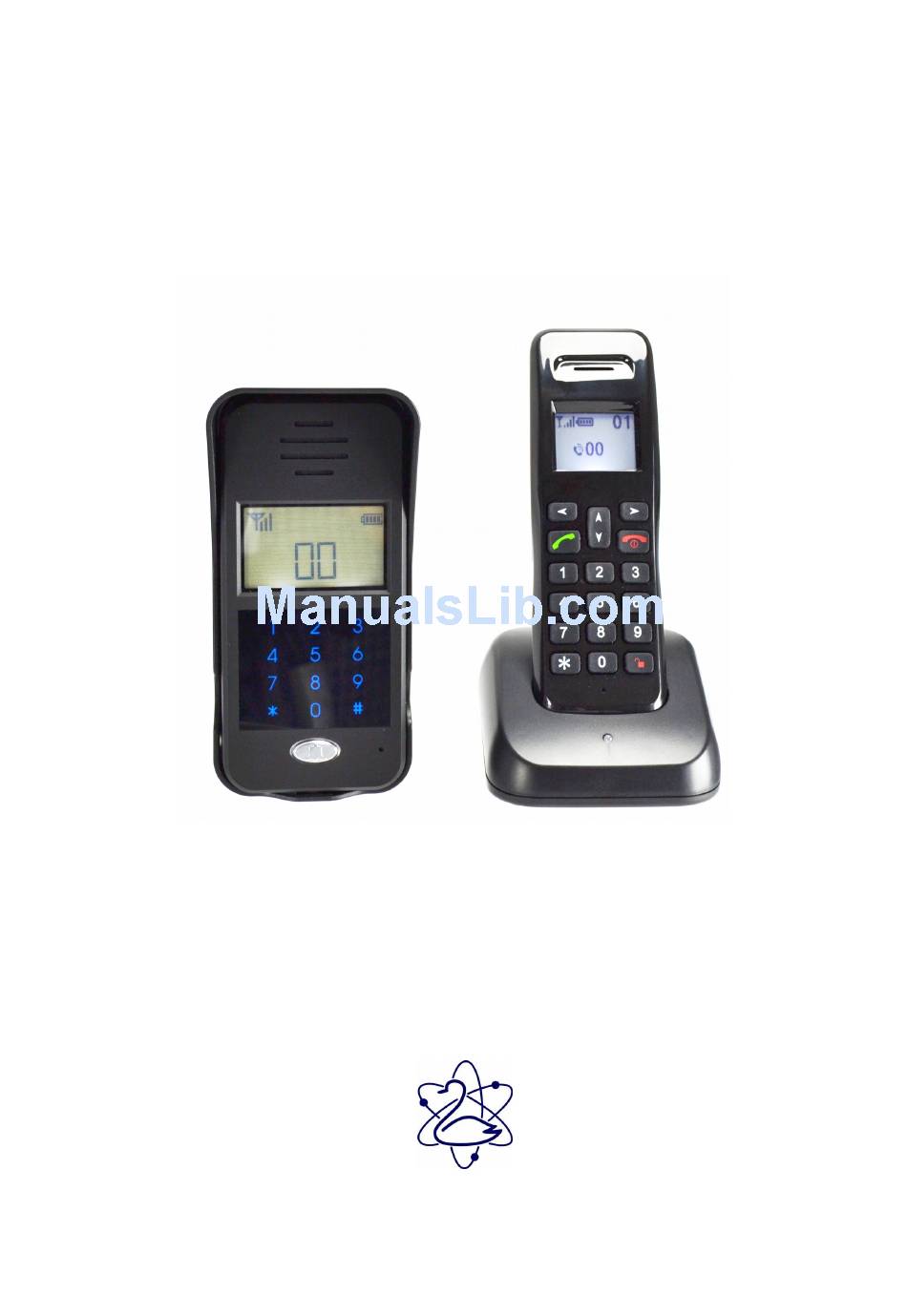

- Page 1 User Manual Wireless Audio Intercom Door Phone Product number: 50000652 SSIHuset SSIHuset SSIHuset Svane Electronic Svane Electronic Arildsvej 27, Gråmose, 7442 Engesvang kunde@svane-el.com Tlf.: 70253010 kunde@svane-el.com Tlf.: 70253010 www.svane-el.dk www.svane-el.dk...
-
Page 2: Table Of Contents
Contents Product Diagram ----------------------------- 3-5 Handset Outdoor Unit Basic Operations ------------------------------- 6 Unlocking Operations ---------------------- 7-8 From the Handset From the Outdoor Unit Pairing Operations ------------------------- 9-13 Pairing the Handset to the Outdoor Unit Pairing to an extra Handset Adding an Extra Outdoor Unit Installation Guide ------------------------------14 Door Lock Wiring guide ---------------------15... -
Page 3: Product Diagram
Product Diagram Handset Up arrow - increase volume Right arrow - screen brightness Left arrow – change ringtone and pairing Hang-up key Down arrow - decrease volume Answer and call key Unlocking Key... -
Page 4: Outdoor Unit
Product Diagram Outdoor Unit Speaker Display Confirm Unlock Call button... - Page 5 Outdoor Unit External DC Lock control power slot slot Pairing and password remove button Wire connection diagram Battery box 4 x AAA 1.5V...
-
Page 6: Basic Operation
Basic Operation Select Ringing tone and volume adjust 1)Press right arrow to wake up screen. 2)Switch tones with left right arrows. 3)Adjust volume with up and down arrows. Calling between outdoor unit and handset 1. Press call key on outdoor unit. 2. -
Page 7: Unlocking Operations
Unlocking operation From the handset In the intercom state press the red lock button on the handset. Both the handset and the outdoor unit will display an unlock symbol. - Page 8 Unlocking from the outdoor unit Touch the keypad to wake up the screen _ _ _ _ _ _ Press the unlock key until you see at the bottom of the display. Type in the password (default 123456) and press the confirm key .
-
Page 9: Pairing Operations
Pairing between the outdoor unit and the handset Press the pairing button located on the back side upper right hand corner of the outdoor unit. ”PAIR” will appear on the screen and is now in pairing mode. - Page 10 On the handset press the right arrow button to activate the screen. Press ” ” then press and hold the left arrow until ”pair” appears on the display. After 1 second the handset will give a beep tone and ”OH” will appear shortly on the outdoor unit.
- Page 11 Pairing between handsets On the existing handset press any number except 1 then press the left arrow until ”pair” appears on the display. On the new handset press the left arrow until pairing is displayed . It will disappear shortly. Now the new handset is paired.
-
Page 12: Adding An Extra Outdoor Unit
Adding an extra outdoor unit Press the pairing button located on the back side upper right hand corner of the outdoor unit. ”PAIR” will appear on the screen and is now in pairing mode. - Page 13 On the handset press any number except 1 then press the left arrow until ”pair ” appears on the display. The outdoor unit wil give a beep tone and then the screen will turn off. Pairing is complete. Note 99 is the maximum number of pairings.
-
Page 14: Installation Guide
Installation The outdoor unit should be installed 1,4 to 1,7 meters above the ground surface. Avoid direct sunlight Mount the raincover to the wall with appropriate fastening screws. Place the batteries in the back of the outdoor unit and manouver the unit into the cover. Secure the unit with the provided screw. -
Page 15: Door Lock Wiring Guide
Examples for wire connections...
