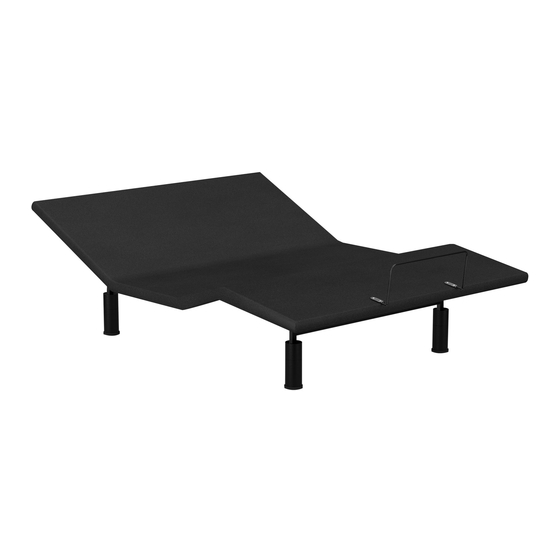

Reverie 3EM Owner's Manual

Wireless power base

Hide thumbs Also See for 3EM:

Owner's manual (15 pages)

Owner's manual and reference manual (27 pages)

Table Of Contents

Reverie 3EM™ Wireless Power Base

Owner's Manual and Reference Guide

REV: 2016-08-03

TW Manual Part No. D1103-301-3EM

Ascion LLC.

Manual Part No. PT-MAN-3EM

Table of Contents

Need help?

Do you have a question about the 3EM and is the answer not in the manual?

Questions and answers

Summary of Contents for Reverie 3EM

Page 1 Reverie 3EM™ Wireless Power Base Owner’s Manual and Reference Guide REV: 2016-08-03 Copyright © 2016. All Rights Reserved. TW Manual Part No. D1103-301-3EM Ascion LLC. Manual Part No. PT-MAN-3EM...
Page 2: Table Of Contents
Reverie 3EM™ Wireless Power Base Table of Contents Safety Precautions.....................3 Parts List......................8 Power Base Assembly Instructions ..............9 Wireless Remote Control...................13 Remote Control Operation Guide..............14 Replacement Remote Control Programming.............15 Remote Control Emergency Power Down Feature..........17 Troubleshooting....................18 Warranty......................19 Warranty Information: Please see warranty information at the end of this manual CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 3: Safety Precautions
Do not use outdoors. • Do not operate where aerosol (spray) products are being used or where oxygen is being administered. • To disconnect, turn all controls to the off position, then remove plug from outlet. CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 4 Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. SAVE THESE INSTRUCTIONS! CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 5 Your power base is strictly designed for in-home use only. It is NOT designed for hospital use and is NOT designed to meet hospital standards. Do not use this base with TENT TYPE oxygen therapy equipment or near explosive gases. CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 6 The input transformer voltage is AC120V (1.5 Amp) 60HZ, and the output voltage is DC24V (3Amp). When there is a short-circuit, the customer should seek professional assistance by calling a licensed electrician or by contacting customer service at 800-973-8374. CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 7 DO NOT SIT ON THE HEAD OR FOOT SECTIONS WHILE IN THE RAISED POSITION. INTENDED USAGE The electric power base should be installed with the head board brackets and/or the head of the frame positioned close to a wall. CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 8: Parts List
Parts List for Reverie 3EM™ Wireless Power Base Note: Before discarding any packing materials, check the power base carton and verify the following items in the parts list are included: PARTS LIST A. Wireless Remote Control (1)* and AA Batteries (2) B.
Page 9: Power Base Assembly Instructions
Improper handling DO NOT lean the power base against the installed legs to flip it over. STEP 6 Plug the power cord into a grounded electrical outlet. NOTE: An electrical surge protection unit is recommended (not included) CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 10 Use the Retainer Bolts (D) and Retainer Bar programmable setting or options, refer to the Plate (E) to fasten the Mattress Retainer Remote Control Guide for more information. Bracket (B) to the front of the power base. (As shown in the diagram below). CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 11 D. 45 L Bracket Bolt (4) E. 40 L Bracket Bolt (8 ) F. 5 / 16 Inch Washer (16 ) G. 5 / 16 Inch Locking Nut (12) H. Allen Key (1) I. Wrench (1) CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 12 5/16 Inch Locking Nut (G) and hand tighten to STEP 2 allow for adjustment. Repeat same procedure for opposing side of the power base. Place your mattress on top of your power base. F A B CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 13: Wireless Remote Control
OF THE POWER BASE B. LOWER FOOT SECTION OF THE POWER BASE C. RAISE HEAD SECTION OF THE POWER BASE D. LOWER HEAD SECTION OF THE POWER BASE E. RETURN ALL SECTIONS TO THE FLAT POSITION CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 14: Remote Control Operation Guide
When this occurs, the customer MUST seek professional assistance. NOTICE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 15: Replacement Remote Control Programming
Press the learn button for 3 seconds. PAIRING INSTRUCTIONS FOR JOINING 2 BASES 1 Wireless Remote Control and 2 Reverie 3EM™ Power Bases. Use the same remote control to pair with Figure 1: Press “Learn Button” to the two power base one after the other initiate the RF learning mode.
Page 16 PLC can jump to the second slot and kick out the first remote. This is why some people have a difficult time joining the remotes. If they are patient and follow the process described they will not have a problem. CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 17: Remote Control Emergency Power Down Feature
Your power base should lower to the flat position. NOTE: The two (2) 9 volt batteries are only intended to be used once. After you complete the emergency lowering, the batteries need to be replaced with new alkaline batteries. CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 18: Troubleshooting
Troubleshooting In the Event the Reverie 3EM Wireless Power Base fails to operate, investigate the symptoms ™ and possible solutions provided in the chart below: Symptom Solution • Verify the power cord is plugged into a working, grounded electrical outlet. A...
Page 19: Warranty
Purchaser. This four (4) year Limited Warranty shall not apply if Purchaser does not return any and all defective parts to Reverie within 15 days of Purchaser’s receipt of replacement part. Purchaser shall bear all service, transportation, labor and shipping costs related to the delivery and/or replacement of the defective part.
Page 20 Upon receiving reasonable written notice at any point in time that is more than five (5) years and up to twenty (20) years from the warranty commencement date, Reverie will offer replacement parts for any mechanical part of the frame found to be defective. Electronics, electrical components, drive motors and massage motors are excluded from this Limited Warranty.
Page 21 Warranty UNLESS OTHERWISE EXPRESSLY STATED IN THIS DOCUMENT, REVERIE AND THEIR RESPECTIVE PARENTS, SUBSIDIARIES, DIVISIONS AND AFFILIATES EXPRESSLY DISCLAIM ANY OTHER WARRANTY WHATSOEVER, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND FREEDOM FROM DEFECTS AND WORKMANSHIP.
Page 22: Limited Warranty
Please prepare a digital copy of your proof of purchase (invoice or sales receipt) when registering online. You may be required to provide the Serial Number for registration, you can find it on the Law Tags attached to the base. Manufactured by Reverie ® For Warranty and Service: 800-973-8374 customerservice@reverie.com...
Page 23 Notes CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
Page 24 CUSTOMER SERVICE: 800-973-8374 CUSTOMERSERVICE@REVERIE.COM...
