Summary of Contents for Knox KN-APFV

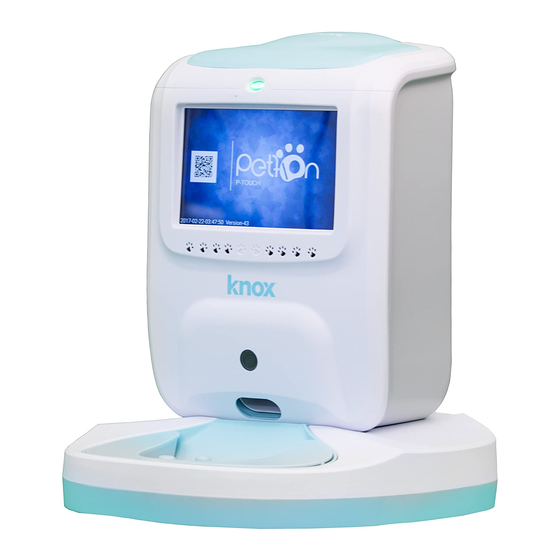

- Page 1 October | 2017 KN-APFV Knox Pet Feeding Tower Instruction Manual *Updated & Revised (please disregard any other manual inside your box) Page | 1...
- Page 2 October | 2017 Index Index Index Index • Safety Information -- Page 2 • Components List -- Page 3 • Assembly Instructions -- Pages 4 to 7 • Pettion App & Wi-Fi Setup -- Pages 8 to 10 • Remote Monitoring -- Page 11 •...
- Page 3 October | 2017 Page | 3...
-
Page 4: Bottom Cover
October | 2017 First, place the MAIN BODY onto the BASE. Next, open the BOTTOM COVER on the underside of the MAIN BODY. Then, insert both TIGHTENING SCREWS into the holes and rotate 90 degrees. This will secure the BASE to the MAIN BODY. Replace the BOTTOM COVER. - Page 5 October | 2017 The SLOW FEEDING BOWL and BOWL INSERT are already fitted into the BASE, but are removable. Remove the BOWL INSERT to give smaller pets easier access to food, or to utilize the entire SLOW FEEDING BOWL for feeding. Page | 5...
- Page 6 October | 2017 To fill the MAIN BODY, open the top cover and pour in your dry food of choice. Once the bin is full, securely replace the top cover. Page | 6...
- Page 7 October | 2017 Once the Knox Pet Feeder is assembled, plug the device in and turn the power on when you’re ready to start Pettion app & Wi-Fi setup. The power switch is located on the back of the BASE.
- Page 8 October | 2017 Download the Pettion app to your mobile device from the Google Play Store or Apple App Store. Just search for “Pettion”. Once installed, open the app and select “User Registration” to create a Pettion account. Please Note – Your account username and password must be a minimum of 6 characters each.
- Page 9 October | 2017 Once you’ve created your Pettion account, it’s time to pair your mobile device to the Knox Pet Feeder. You can do this either via Bluetooth or a QR Code (Tip – Bluetooth sets up faster!) Bluetooth – On the app, tap “Searching Machine”. Then just follow the steps to pair your mobile device like you would with any other Bluetooth device.
- Page 10 October | 2017 Now that you have paired your mobile device to the Knox Pet Feeder, it’s time to connect the Knox Pet Feeder to your Wi-Fi network! Go to “Setting > Machine Connection” in the Pettion app. The Pettion app will search for available Wi-Fi networks. Select your network and enter in your Wi-Fi password if needed.
- Page 11 October | 2017 On the Pettion app’s main menu, select “Interaction”. From here you have two ways to monitor your pet: Single – This will activate the camera on your pet feeder over the internet, allowing you to see what it sees. The monitor on the pet feeder remains off. Both –...
- Page 12 October | 2017 If you want to take a snapshot of what the pet feeder’s camera sees, just tap the “Photo” button on the “Interaction” screen. Please Note – Either the “Single” or “Both” video options must be active for “Photo”...
- Page 13 You can record videos of up to 10 seconds in length from your mobile device, and save them to the Knox Pet Feeder to play for your pet at any time. You can also select one of the clips to play during scheduled feedings.
- Page 14 October | 2017 Recording Videos – Tap “Setting” on the main menu screen and then select “Machine Video”. This brings up the “Video List”. Just tap the circle/+ icon at the bottom to start recording a new 10-second video. Playing Videos •...
- Page 15 October | 2017 You can dispense approximately 1 ounce of food at any given time to your pet. This is in addition to scheduled feedings. Simply go to the Pettion app’s main menu and select “Interaction”, and then tap “Reward”. Page | 15...
- Page 16 Feed Setting” screen. From here you can setup multiple feedings for your pet. Select the amount of food the Knox Pet Feeder should dispense for your pet, and the time it should do it. All of your scheduled feedings can be edited at any time,...
- Page 17 October | 2017 The Knox Pet Feeder doesn’t just let you feed your pet, it also keeps track of how much food your pet has eaten over time. By allowing you to monitor food intake, you can instantly know whether your little one is eating properly or not.
- Page 18 October | 2017 Adding More Mobile Devices – Go to the Pettion app’s main menu and select “Setting”, then select “Share”. From here, select “Share QR Code”. This will display a QR code on your mobile device; have the new mobile device scan this code.
