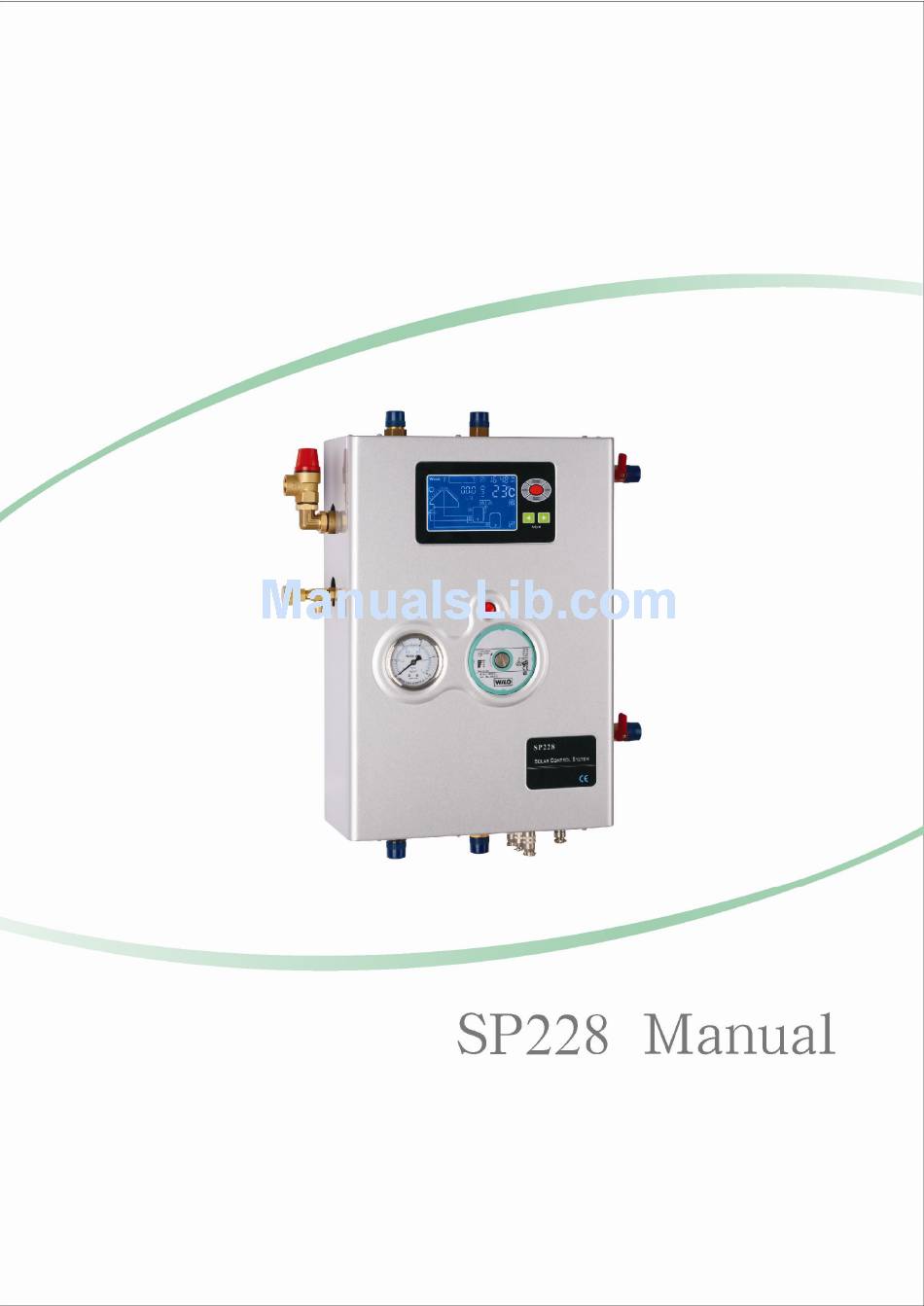

Suunny SP228 Manual

Solar thermal work stations

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the SP228 and is the answer not in the manual?

Questions and answers

Summary of Contents for Suunny SP228

Page 2: Table Of Contents
CONTENT Part 1: Operation instruction Ⅰ General information .……………………………………… 1 Ⅱ Product description ..……………………………………… 2 Ⅲ System description…………………………………………4 Ⅳ Function description………………………………………10 Ⅴ Fault message …………………………………………… 15 Part 2: Installation instruction Ⅰ General information ………………………………………17 Ⅱ Mounting……………………………………………………18 Ⅲ Electrical wiring……………………………………………19 Ⅳ Commissioning.……………………………………………20 Ⅴ...
Page 3: Part 1: Operation Instruction
Work station series for solar water heating control system Part 1: Operation instruction Ⅰ. General information 1. About this manual This manual describes the installation, function and operation of an integrated solar work station, which is suitable for split pressurized solar heating system. Before installing and operating the device, please read the following information carefully.
Page 4: Ⅱ Product Description
Work station series for solar water heating control system Ⅱ. Product information 1. Components Components Function description Filling and flushing Through this connector medium can be pumped into connector solar system Operating screen (LCD) Display operating menu. Pump speed regulation Three speed levels available, offers different flow rate.
Page 5 Work station series for solar water heating control system 1 x Auxiliary heating output (Max. load current: 15A) Output signals 4 x Relay output (Max. load current: 3A) System design pressure 10 bar Safety valve response pressure 6 bar WILO pump SR15/6 Ambient temperature -10~50℃...
Page 6: Ⅲ System Description
Work station series for solar water heating control system Ⅲ System description (8 systems available) Danger: If there is only one temperature sensor in water storage (usually in bottom part T2), it is possible, and that the auxiliary heating function will not be activated or deactivated at a right time, because the water temperature in top part of the storage (T3) cannot be measured.
Page 7 Work station series for solar water heating control system 2. System 2: 1 collector array – 2 storage – 2 pumps Description: When switch–on temperature difference between collector array (T1) and one of the storage (T2 or T5) is reached, the solar circuit pump (P1) or (P0) will switched on. According to the priority switching, tw o storages (T2, T5) will be loaded one by one.
Page 8 Work station series for solar water heating control system T1: Temperature sensor for collector 1 T2: Temperature sensor in the bottom part of storage 1 T5: Temperature sensor in the bottom part of storage 2 P1: Solar collector pump R1: Electromagnetic 3-way valve Note: 1.
Page 9 Work station series for solar water heating control system The solar pump (P1) is switched on as soon as the switch–on temperature difference between one of the two collector arrays (T1, T0) and storage 1 (T2) is reached, the valve R1 is always set so that flow occurs through the warmer of the two collector arrays (T1, T2).
Page 10 Work station series for solar water heating control system 7. System 7: 2 collector arrays – 2 storages – 2 pumps – 1 valve Description: When switch-on temperature difference between one of the two storages (T2, T5) and collector array 1 (T1) or collector array 2 (T0) is exceeded, then the switching valve R2 switched the corresponding collector array (T1 or T0) into the solar circuit.
Page 11 Work station series for solar water heating control system switches relevant storage (T2, or T5) to the solar circuit. Then either solar circuit pump P1 for collector array 1 (T1) or solar circuit pump P0 for collector array 2 (T0) is switch-on, Depending on where the temperature difference occurs.
Page 12: Ⅳ Function Description
Work station series for solar water heating control system Ⅳ Functions and operation Danger: Before connecting the power supply, make sure that the storage, solar collector, solar work station and all temperature sensors are good connected! Note: For safety, auxiliary heating is locked at delivery state. The single “ ”...
Page 13 Work station series for solar water heating control system ì Press “Confirm” button to confirm the setting. Press “Cancel” button to cancel the function. Note: Between 60~70℃ scale can form more easily; we usually set the storage temperature at 60℃. 4.
Page 14 Work station series for solar water heating control system ì Press “Confirm” button to confirm the setting, press “Cancel” button to cancel this setting. ì Immediately after setting the first time period, the display enters into the operating menu of next time period.
Page 15: Frost Protection
Work station series for solar water heating control system Note: When forbid auxiliary heating, customer can’t switch on/off auxiliary heating manually and time-controlled auxiliary heating function is also automatically deactivated. 9. Frost protection In winter, when the temperature of collector drops below the preprogrammed starting temperature of frost protection (default value 5℃), solar pump P1 starts working.
Page 16 Work station series for solar water heating control system shows R1, it’s an error indication! ì ” Press “Choose Function”, until “ displays on the screen. ì Press “ ” “ ” button to adjust the switch-on temperature (T1). Default value: 80℃, setting range: 60~90℃.
Page 17: Ⅴ Fault Message
Work station series for solar water heating control system 18. Reset Function If necessary, all the settings (except time setting) can be reset to the factory settings. ì Press “Choose Function” button, until “ ” displays on the screen. ì Press “Confirm”...
Page 18 Work station series for solar water heating control system There is air leakage in solar Check pipeline System pressure drops. system. exhaust the air. Frost function is activated. Pump works system No error. doesn’t have temp. difference, Holiday function is activated. The solar work station SP118 shows error messages in the main operating menu if there is a problem with temperature sensor.
Page 19: Part 2: Installation Instruction
Work station series for solar water heating control system Part 2: Installation instruction ⅠGeneral information 1. Safety Before installing the device, please read this manual carefully. Please note that the installation must be executed according to relevant technical rules. The installation must be adapted to the conditions provided by the customer.
Page 20: Ⅱmounting
Work station series for solar water heating control system ⅡMounting 1. Open the package carton and take out the solar control system carefully. Determine the mounting position of the solar control system, considering the mounting place for expansion vessel. See picture 1. Picture 1 2.Drill the holes for dowels, put the dowels into the holes, fixed the solar control system on the wall using fastening screws.
Page 21: Ⅲ Electrical Wiring
Work station series for solar water heating control system 4. Determine the mounting place for the expansion vessel. Connect the expansion vessel. See picture5. Picture 5 5. Filling the system ◆ Open the air vent valve. ◆ Open the filling connector (1) and connect a separate pump to the system with pressure hose. The heat medium liquid (usually use water-glycol mixture as heat medium, 50% glycol and 50% water) will be pumped into the system until it overflows through the air vent valve.
Page 22: Ⅳ Commissioning
Work station series for solar water heating control system 2. Connect auxiliary heating wire if available. Cable (coffee) for the “L”, cable (blue) for “N” line, cable (yellow-green) for the ground wire. 3. To connect external circulation pumps or any electromagnetic valves, firstly loose the aviation socket and dismount it as indicated below.
Page 23: Ⅴ Replacing Pump
Work station series for solar water heating control system Picture 11 3. When the flow rate becomes regular, observe the system pressure from manometer. If the pressure is lower than 2 bars, refill the system with heat medium to increase the pressure. Picture 12 4.
Page 24 Work station series for solar water heating control system 3. Open the terminal box, and disconnect the power supply connection. 4. Loose the screws and open the WILO pump. Replace the old one with a new WILO pump. 6. Fasten the WILO pump screws. 7.
Page 25: Ⅵ Packing List
Work station series for solar water heating control system 8. Attach the front half the foam cover. 9. Attach the meal cover and fasten the screws again. Picture 21 Ⅵ Packing list Item Specification Quantity Work station 450×310×150mm 1 pc Power line 1 pc PT1000 sensor...
