Softron M80 Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

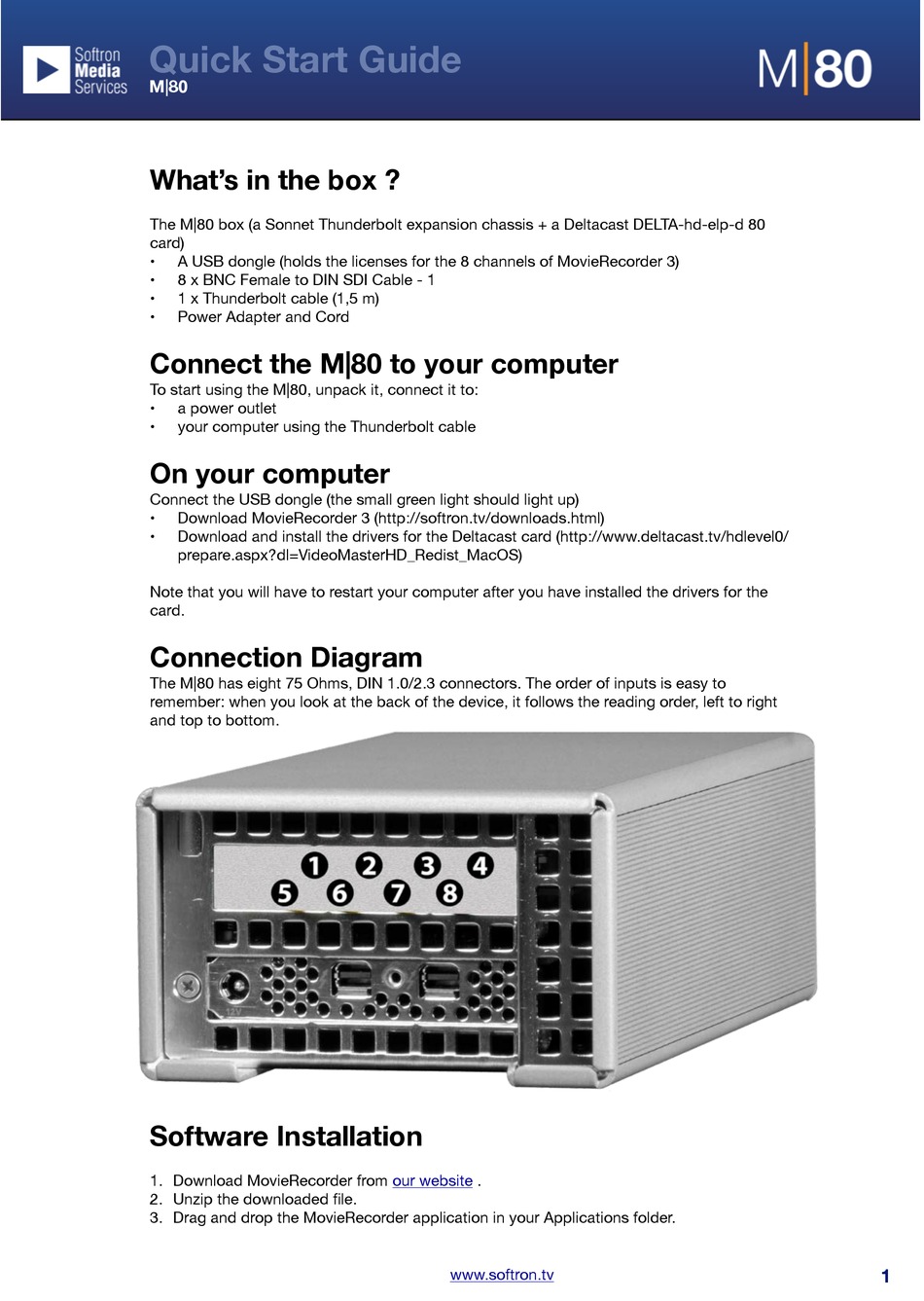

Quick Start Guide

!
M|80
!
What's in the box ?
!
The M|80 box (a Sonnet Thunderbolt expansion chassis + a Deltacast DELTA-hd-elp-d 80
card)
•
A USB dongle (holds the licenses for the 8 channels of MovieRecorder 3)
•
8 x BNC Female to DIN SDI Cable - 1
•
1 x Thunderbolt cable (1,5 m)
•
Power Adapter and Cord
!
Connect the M|80 to your computer
To start using the M|80, unpack it, connect it to:
•
a power outlet
•
your computer using the Thunderbolt cable
!
On your computer
Connect the USB dongle (the small green light should light up)
•
Download MovieRecorder 3 (http://softron.tv/downloads.html)
•
Download and install the drivers for the Deltacast card (http://www.deltacast.tv/hdlevel0/
prepare.aspx?dl=VideoMasterHD_Redist_MacOS)
!
Note that you will have to restart your computer after you have installed the drivers for the
card.
!

Connection Diagram

The M|80 has eight 75 Ohms, DIN 1.0/2.3 connectors. The order of inputs is easy to
remember: when you look at the back of the device, it follows the reading order, left to right
and top to bottom.
!
!

Software Installation

!
1. Download MovieRecorder from
2. Unzip the downloaded file.
3. Drag and drop the MovieRecorder application in your Applications folder.
our website
.
www.softron.tv
!
!
!
!
1
