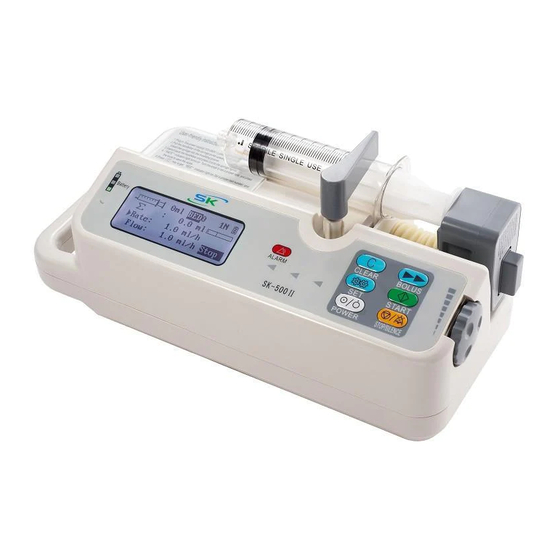

Syringe Pump
Model：SK-500II
Instruction Manual
Shenzhen Shenke Medical Instrument
Technical Development Co., Ltd.
Please read the manual before using the product；
Please keep the manual for reference！
Product Registration No.：Yue FDA（approved）2009 – 2540641
Implement Standard No.： YZB/Yue 0453-2009
Production License No.:Yue FDA (approved) 20040977
Version：V2.1
Advertisement
Table of Contents
Summary of Contents for Shenzhen Shenke Medical Instrument Technical Development SK-500II
- Page 1 Syringe Pump Model：SK-500II Instruction Manual Shenzhen Shenke Medical Instrument Technical Development Co., Ltd. Please read the manual before using the product； Please keep the manual for reference！ Product Registration No.：Yue FDA（approved）2009 – 2540641 Implement Standard No.： YZB/Yue 0453-2009 Production License No.:Yue FDA (approved) 20040977...
- Page 2 Limited Guarantee 1. SK-500II syringe pump is delicately made of top-quality components. 2. Shenzhen Shenke Medical Instrument Technical Development Co., Ltd. guarantees that the product will not have any defect in material or technology within 12 months from the purchasing date.
-
Page 3: Table Of Contents
Contents 1. Basic Introduction........................2 1.1 Product introduction:.......................2 1.2 Application scope: ......................2 1.3 Safety precaution:......................2 1.4 Product functions and features ..................3 1.5 Technical parameters .......................3 1.6 System structures ......................4 1.7 Explanation of Symbols on the Label ................5 1.8 Panel instruction.......................7 1.9 Battery charge ........................8 2. -
Page 4: Basic Introduction
This greatly improves the medical nursing quality, reduces the nurse’s workload, and ensures the patient’s nursing safety. SK-500II syringe pump is a non portable device, which needs to be fixed for use. 1.2 Application scope: It is used in hospitals where patients need intravenous injection at steady speed or continuous and precise injection. -
Page 5: Product Functions And Features
(4) Warning information about injection completion, near completion, occlusion, low battery, injector abnormal, control abnormal; (5) Intellectualized control of injection. 1.5 Technical parameters Product type SK-500II Maximum injection rate 1500ml/h (Different injectors have different maximum rate.) Range of flow rate 5ml injector: 0.1-100ml/h... -
Page 6: System Structures
Environment temperature 5 ~40 ≤80% 80kPa ~106kPa，relative humidity Storage conditions Environment temperature -40℃~55℃, ≤ pressure 50kPa~106kPa， relative humidity Applicable syringes syringes 5ml、10 ml、20 ml、30ml、50 ml Electrical safety accordance with stipulation IEC60601-1 1.6 System structures SK-500II syringe pump contains the following components:... -
Page 7: Explanation Of Symbols On The Label
1. The microcomputer system: the “brain” of the whole system, giving intellectualized control and management over the whole system and processing the detected signals. The two single-chip Micyoco (SCM) systems are used for mutual backup copy and supervision. When one SCM goes wrong, the other one will give an immediate warning signal and cut the power of the host computer, which will then stop completely, thus ensuring patient’s safety. - Page 8 2. Label Mark Mark Description Production batch No. Serial Number Caution! Consult user manual Class II equipment Type BF applied part Protection against vertically falling IPX1 water drops It indicates that the equipment should be sent to the special agencies according to local regulation for separate collection after its useful life.
-
Page 9: Panel Instruction
※ Please contact the sales agent or the manufacturer if there are components above mentioned missing when you open the packaging. 1.8 Panel instruction 11 10 No. Description Function Battery capacity indicator light Flashing when there is no AC power connection. AC power indicator light AC indicator light is on when using AC power. -
Page 10: Battery Charge
and can only be moved by the engine. Keep pressing this key during injection, the machine will inject at the maximum rate, back to original speed after releasing this key. On settings menu screen, press “BOLUS” can lock or unlock BOLUS the syringes parameters. - Page 11 1.10 Machine installation 1. The syringe pump is used at the general level of the position 2. Make sure the screw aims at the central thread hole of the under shell, then rotate the screw to fix the anchorage clip on the syringe pump. the screw aims at the central thread hole, then rotate the screw to fix the anchorage...
-
Page 12: Setting Parameters
2. Setting Parameters 2.1 Setting menu parameters Under stop condition, press “clear+set” keys to enter the Menu Parameters setting screen. Press “clear+set” keys again to go back to the original screen. As shown in diagram 3 and diagram 4. Enter the Menu Parameters setting screen Diagram 3 Diagram 4... - Page 13 ① 5~50 syringe: This parameter is the length of the injector, unit is mm. Specific measurement can be found in the behind operational guidelines, [3.4 'change syringe suppliers' second step]. ②.Basic occlusion value: 0.04～0.16Mpa. Default value 0.1. This value decides the occlusion alarm sensitivity of different syringes.
-
Page 14: Setting Mode Parameters
well with the connecting pipe. Press ‘start’ key to begin the injection, press ‘SET+STOP’ to enter the pressure value preview ④ interface[diagram 6]. Observe the manometer, when the value reaches 0.1 ± 0.02Mpa, the syringe pump should give an alarm for occlusion, and the pressure value shows 1.8kg. If it is not alarming when the value reaches 0.1 ±... -
Page 15: Setting Parameters Under 'Stop' Condition
flow rate = dose*weight* fluid volume ÷drug mg / kg / h ug / kg / min flow rate = 60 *dose*weight* fluid volume ÷drug ÷ 1000 2.3 Setting parameters under ‘stop’ condition Under the ‘stop’ condition, turn the coder to display the parameters that can be adjusted. Turn the adjusting knob and use the cursor to point to the parameter need to be set, then press adjusting knob, turn the coder to set, press the adjusting knob again to save the parameter newly set. -
Page 16: View Transducer Value
will show preset volume, timing information and total amount of drug (mg). displays preset volume, timing information and total amount of drug (mg) Diagram 9 2.5 View transducer value Under the interface of main menu (operation or stop condition), mode parameter setting, menu function, press ‘SET+STOP’... - Page 17 Step 1 Power connection Attention: Insert the power cord into the power supply (50/60 HZ, AC 100 V～240V). Diagram 11 Diagram 11 Connect the power cord as shown in Diagram 11 Step 2 Turn the power on The light is on, it means that the pump is in the state of charge.
- Page 18 the suitable place right wrong Turn the compression strut of the syringe around 90° and then let go of it Syringe butt close to the Pistons Diagram 14 The compression strut should cling to the syringe The LCD displays the specification of injector Diagram 15 Step 4 Select the injection mode and adjust the speed...
- Page 19 Press SET key to enter mode parameter setting interface Adjust the knob Diagram 16 Step 5 Clear accumulation (1) Make sure the pump is in stop condition (2) Press" CLEAR" key to eliminate the accumulated volume. Diagram 17 Note: accumulation number can be observable only in injection condition and be eliminated only in stop condition.
-
Page 20: Start Bolus
The running direction Running indicator light Diagram 18 Step 8 Injection completion (1) When the injection is near completion, the alarm indicator light flashes and LCD screen displays ‘NEAR’ to remind the user that the injection will complete soon. Attention: press the knob to stop alarm but it sounds again in two minutes. (2) When the injection is finished, the pump stops operations and in the meanwhile the indicator light flashes. -
Page 21: Start / Stop Near Completion Alarm Function
Attention: Bolus dose not influence alarm function. The bolus rate depends on the size of syringe as shown in diagram. Size of syringes Bolus rate 5 ml 100 ml/h 10 ml 200 ml/h 20 ml 400 ml/h 30 ml 400～600 ml/h 50 ml 400～1500 ml/h Diagram 22... - Page 22 Step (3) Install the injector 1. Push the syringe piston to the end, and install it according to normal operation. (diagram 27) Push the syringe piston to the end Compress the injector with the compression strut Diagram 27 Step (4) set syringe parameters 1.
-
Page 23: Clear Injector Parameter, Reset Injector Parameter
The parameters of 5ml injector Diagram 31 4． Setting injector parameters for 10ml、 20ml、 30ml、 50ml are similar to the process of setting 5ml injector: Selecting 10ml、 20ml、 30ml、 50ml injector parameters separately, repeating the above mentioned Step Two and Step Four, entering parameters setup interface menu, directing by rotary knob, the cursor points to “10ml injector”... -
Page 24: Adjust Occlusion Sensitivity
Only plastic injectors or glass injectors under the same brand can be used. We test and set the parameters of the machine under the brand of “double dove”, if glass injectors or other plastic injectors are needed, pressing CLEAR + SET keys together to enter into the parameters setup interface menu, then press BOLUS key for unlocking, under this status, press CLEAR key, then all injector parameters been eliminated. -
Page 25: Maintenance And Storage
4. Maintenance and Storage 4.1 Machine maintenance 1． Keep the machine clean. Use a piece of cloth to wipe the syringe pump clean when any liquid drops on the pump. 2. Special attention must be paid when cleaning the syringe pump. Use a tampon moistened with 75% of alcohol to wipe the outer shell. -
Page 26: Environmental Protection
The service life of the products is 3 years. Machines over its life should be discarded, please contact the manufacturer or distributor for more relevant information. 1. SK-500II syringe pumps that are no longer in use could be delivered to its distributors or manufacturer for proper recycling. -
Page 27: Alarm And Solutions
6. Alarm and Solutions 6.1 Common alarm indication and solutions Reason Description Solution Display Alarm indicator flicker 1.press the knob to cancel the alarm(the alarm will ring again Injection after two minutes) The injector will be near emptied 2. Press STOP key to stop the completion syringe pump and cancel the alarm. -
Page 28: Common Problems And Solutions
1．The injector fall Solution for No.1： off or is not Reinstall the injector installed well. Solution for No.2： 2．The parameter is Alarm for Refer to this manual page12『3.5 setting installation change the injector supplier』set incorrect. error the parameter again 3. Something Solution for No.3：... - Page 29 Manufacturer：Shenzhen Shenke Medical Instrument Technical Development Co., Ltd. Address：8 Floor, Building No. 615, 2 Bagua Road, Futian District, Shenzhen 518029, P.R. China Tel. No.: 86-755-8240 2696 Fax No.: 86-755-8243 8567 Mail box：sk@sk-medical.cn Website：www.skmedica.com Zip Code：518029...
