Summary of Contents for Shenyang Torch-Bigtide Digital Technology Co. HL1916LBT
-
Page 1: User Manual

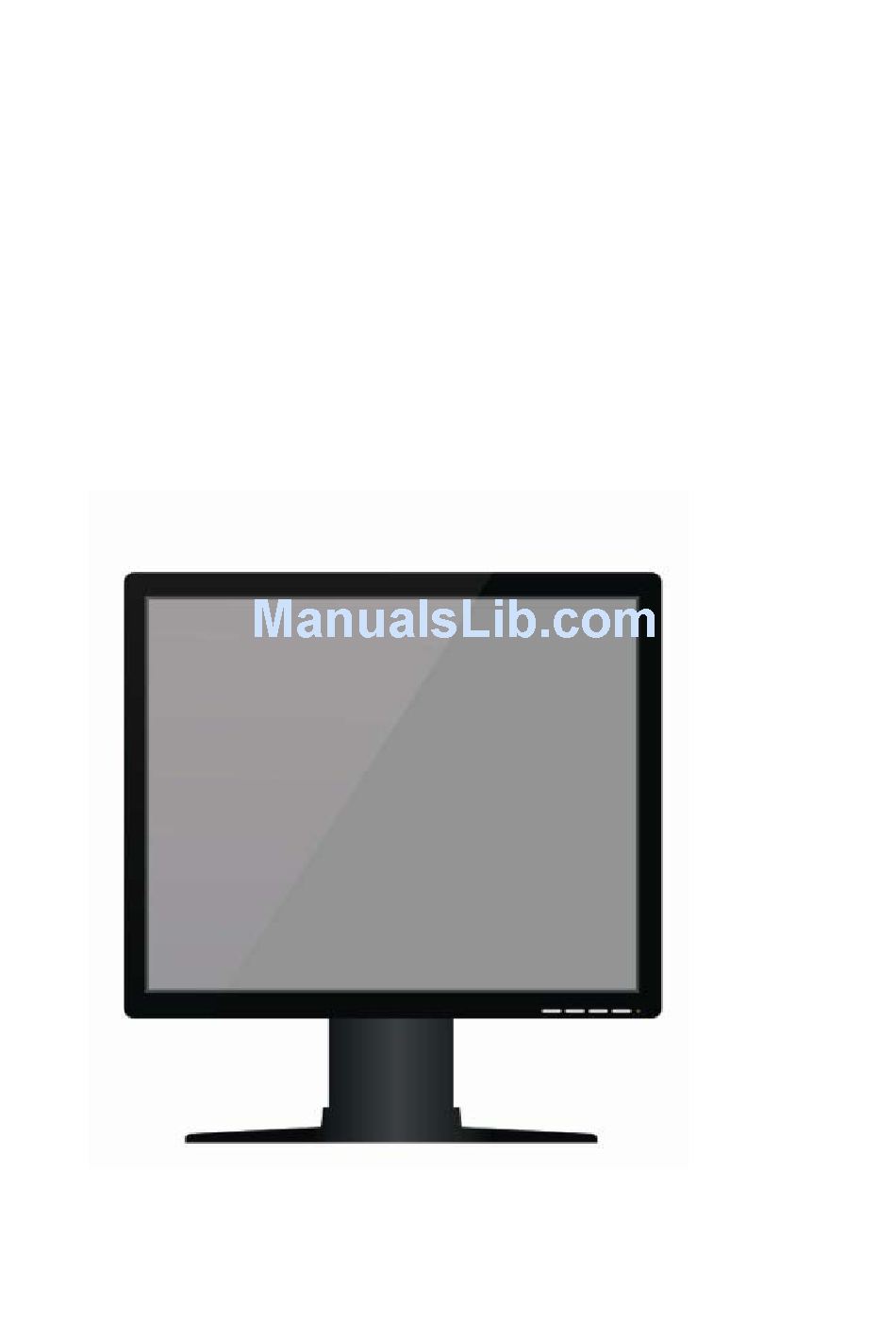

User Manual 19 inch Color LCD Display Model: HL1916LBT,C15S,HL1916LA,C13S Rev.: A0... -
Page 2: Table Of Contents
Contents 1. Application................. 1 2. Declarations................1 3. Installation................6 4. Start-up..................6 4.1 Connecting the power and signal cables ..........7 4.1.1 Little cover (removing)............7 4.1.2 Cable (attaching)..............8 4.1.3 Stand base (attaching)............9 4.1.4 Mounting Use..............10 4.2 Switching on the display.............. -
Page 3: Application
1. Application This high-resolution color display with touch screen use is specifically designed to meet the rigorous performance standards needed for diagnostic, interventional radiology, and other medical applications. To guarantee image integrity, features include accurate signal conversion and a wide range of interfacing options. Compact design -Low weight and small size with improved performance make the color flat panel display HL1916S SERIAL preferable to conventional CRT monitors. - Page 4 Appliance coupler or separable plug of is used as isolation means to isolate the equipment from mains supply. Accessory equipment connected to the analog and digital interfaces must be certified according to the respective IEC/EN standards (e.g.IEC/EN950 for data processing equipment and IEC/EN 60601-1 for medical equipment).
- Page 5 Do not place any objects on top of the units Penetrating liquids may result in a fire or electric shock. Connection No contact to a patient must occur when handling the cables. Do not hurt yourself, when moving the display The display can be tilted backwards and forwards.
- Page 6 screws. Turn switch off and then remove power cord. Mounting information: The stability of the display must be guaranteed following mounting of the foot/holder. The immersion depth of the mounting screws has to be 10 to 12 mm including a 3 mm VESA mounting plate.
- Page 7 The permissible ambient temperature range (5 °C ... 35 °C) must not be violated. Do not subject device to unnecessary shocks. Take care when transporting! Use the original packaging! The panel in particular should be protected against shocks. When touching the panel surface, the mechanical contact or an electrical discharge may cause a brief disturbance in the picture quality.
-
Page 8: Installation
3. Installation Provide adequate ventilation Ventilation slots are located on the rear of the housing. Ambient temperature The permissible ambient temperature range must not be violated. Minimize reflections The display should be positioned so that reflections of lights, windows, furniture with shiny surfaces or light-colored walls do not appear on the screen. -
Page 9: Connecting The Power And Signal Cables
If the display is to be used in a sequence of several displays, or if it is not exactly known whether the graphics card standard can be output by the display, refer to Section 5.1 "Connection of the flat panel display". -
Page 10: Cable (Attaching)
4.1.2 Cable (attaching) Connect the cables to the display. VGA connector: the flat panel display can be connected to the computer system using a VGA Cable on D-sub connection for analog signal. The Page 8 of 26... -
Page 11: Stand Base (Attaching)
display is adapted using an OSD menu. DVI-D connection: The connection to the computer can also be made via the digital single link. The picture quality, noise immunity and radiated interference of the complete system depend on the cable quality and length. DP connection: The connection to the computer can also be made via the DisplayPort connection. -
Page 12: Mounting Use
Button of stand base Note: the stand base is optional. 4.1.4 Mounting Use Remove the stand base according to the contrary way in 4.1.3. Fix the mount by mounting screws (see page 6 table Mounting Screws for details). Page 10 of 26... -
Page 13: Switching On The Display
4.2 Switching on the display Switch on the flat panel display using the power switch. The operation LED lights up (color: green, provided the timing has been recognized – please refer to section 7 "Fault diagnostics"). 4.3 Adjusting the image geometry The display automatically recognizes the used standard, and set-up values for each standard are preprogrammed. -
Page 14: Connections
5. Connections 5.1 Connecting the flat panel display Note All screening precautions contained in the corresponding EMC guidelines must be observed. If these guidelines are not observed, interference signals could penetrate the monitor. Information on cable installation Only screened cables are permitted for the signal connections. All connectors should be of screw or locking types (as far as possible). -
Page 15: Analog And Digital Inputs (Dvi,Vga,Dp)
5.4 Analog and digital inputs (DVI,VGA,DP) DVI socket With DVI digital signal through DVI cable. VGA socket Use VGA cable for VGA input. DP socket With DP digital signal through DP cable. 5.5 Power supply connection Note Device fuses can not be exchanged outside of the repair centers. The display power supply is connected using an appliance plug. -
Page 16: Adjustments
Figure 4 USB-B connector Signal VBUS 6. Adjustments 6.1 Picture adjustment This section describes the settings for operation of the flat panel display with a video source. The most important settings are: Adjusting the graphics memory of the video source As with all monitors, the flat panel display also has certain limits, e.g. -
Page 17: Optimum Picture Quality
horizontal/vertical picture position and the picture sharpness. This can be carried out for the color flat panel display HL1916S SERIAL using an OSD menu. To optimize the display settings for the installed graphic board, and to ensure all gray levels are distinguishable, we recommend to adjust the brightness and contrast levels for and only for analog inputs. -
Page 18: Osd Menu
edge. And similarly for an offset to the left, top or bottom. If the vertical lines are still slightly fuzzy, adjust the setting "Frequency/phase" (see Section 6.4 "Description of the menus"). 6.3 OSD menu 6.3.1 Keys assignment and operation LED Menu Down A “dynamic help for keypad function”... -
Page 19: 3Key Functions In The Osd Menu
While there is no sync in VGA input, there is instruction on the OSD to indicate that how to define the analog input as VGA input. Press and hold the ‘UP’ key for about 2 seconds, the monitor will change the analog input between VGA. The ‘Down’... - Page 20 already optimized for digital signals. Manual changes to these values are not recommended, as this can result in an impairment of picture quality (loss of grayscales). Contrast 0…100 Adjustment of contrast. This allows the brighter area to be seen more distinctly. The center point is in 50 position.
-
Page 21: Fault Diagnostics
Input DVI-D Select active input source Source priority. If you call this OSD menu, the current source is displayed. If current source is inactive (NO sync) and, it will auto search other port. Auto Adjust Auto-Color ON / OFF Automatically input signal (Analog only) -
Page 22: Technical Data
the display, Power cable not Insert power cable operation LED off inserted or incorrectly inserted No picture appears on No video signal Check video cable the display, Video source not Check video source operation LED green supplying a signal blinking Fuzzy picture, Scanning frequency Adjust frequency and phase... -
Page 23: Power Supply
Horizontal viewing Typically ± 85° (CR≥10) angle Vertical viewing angle Typically ± 80° (CR≥10) Backlight Brightness Max backlight: brightness MIN 260 cd/m² . Factory setting: 200 cd/m² (with touch screen) Lifetime of backlight 50,000 hours typically for LED (applies to an ambient temperature for the backlight of 25° C) 8.2 Power supply Input Voltage AC100-240V±... -
Page 24: Digital Signal Input
8.4.2 Digital signal input DVI-D input Via DVI socket , single link DP input Via DP socket Via DVI 8.4.3 Serial interface RS232 Via RJ11 connector 8.4.4 Timing Input Item SPEC Horizontal: 31 ~ 82kHz Frequency Vertical: 56 ~ 75Hz Pixel clock 25—140 MHz Video Bandwidth... -
Page 25: Controls And Connection Elements
8.5 Controls and connection elements Front Side Four keys for OSD menu, operation-LED Rear • Power switch •Power supply connection • DVI socket • DP socket • VGA socket • RS 232 sockets 4 pins RJ11 8.6 Mechanical design Item Width 416.5mm Depth... -
Page 26: Mechanical Requirements
Ambient temperature range -20 -- +60℃ Temperature gradient Max. 10℃/h, no condensation Relative Humidity 10%-90% Atmospheric pressure 70 – 106 kPa 8.8 Mechanical requirements Operation Vibration According to EN 60068-2-6 10 ... 58 Hz with ± 0.075 mm deflection 58 ... 500 Hz at 10 m/s² Shock According to EN 60068-2-27 (single shock) 150 m/s², 6 ms... -
Page 27: Dimensional Drawings
FCC Part15 class B 9. Dimensional drawings All dimensions in mm. 9.1 Front, Platform and Side view 10 Remarks and contact address Invalidity of guarantee All unauthorized electrical or mechanical alterations on or in the unit result in loss of the guarantee. Information on the Instruction Manual For clarity reasons, this Instruction Manual does not contain all detailed information on this product. - Page 28 respective sales contract which also contains the complete and solely applicable warranty conditions. These warranty conditions in the contract are neither extended nor limited by the contents of this Instruction Manual. Repairs Please contact your distributor from whom you originally purchased the product.
- Page 29 FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
