TAM-A Type 705/1 and TAM-D Type 705/2

OPERATING INSTRUCTIONS

Transducer Amplifier Module TAM

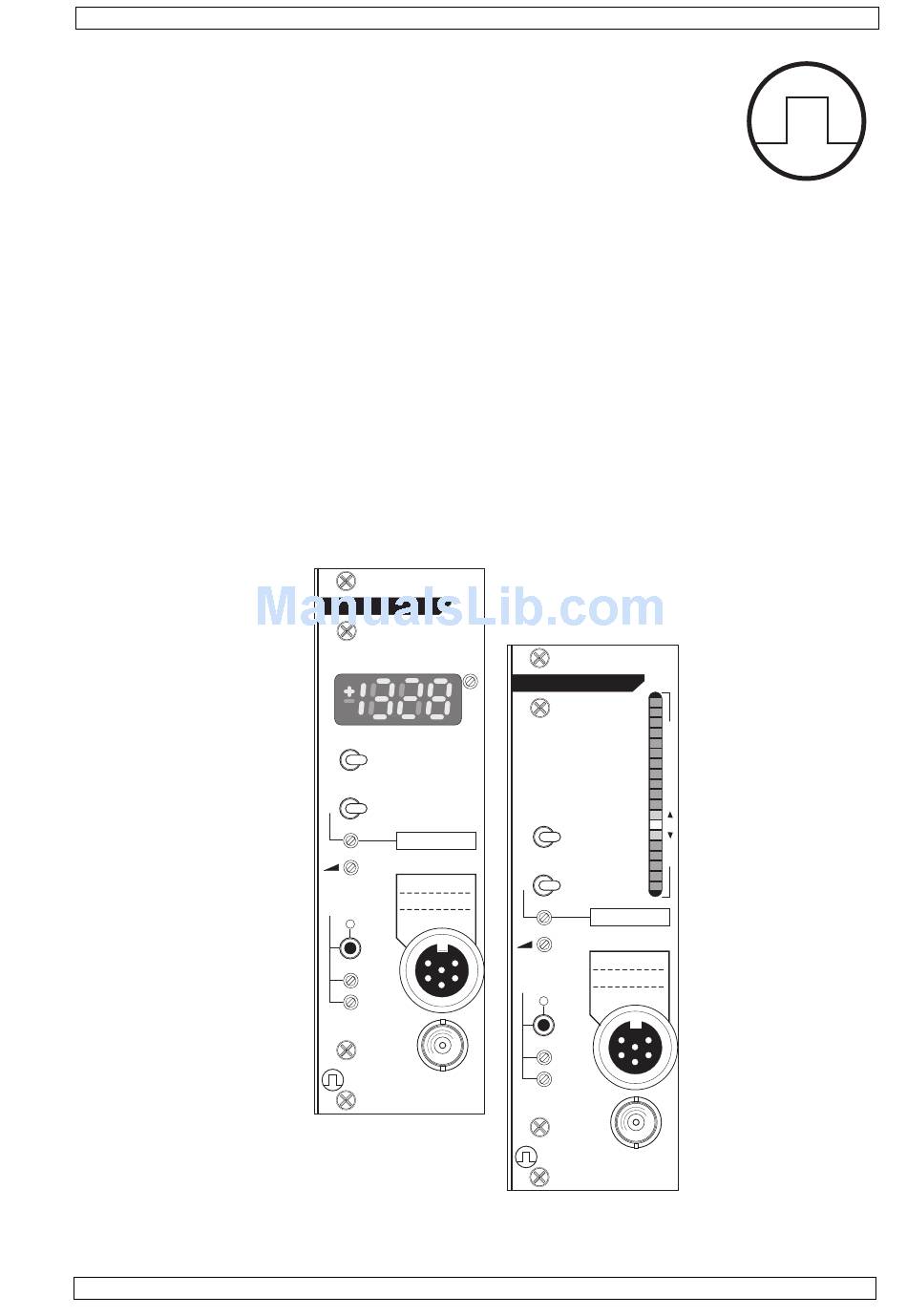

Version TAM-A Type 705/1 with bargraph display

Version TAM-D Type 705/2 with digital display

HUGO SACHS ELEKTRONIK - HARVARD

for the

PLUGSYS

(Version 1.4 / printet: June 2013 / Hellstab / TB / Zi)

HUGO SACHS ELEKTRONIK

D-79232 MARCH GERMANY

TAM-D

TRANSDUCER

AMPLIFIER MODULE

100 FILTER (Hz)

300

OFF

CAL

MEASURE

GAIN

REF.

20-100%

ZERO

TRANSDUCER

AUTO

FINE

COARSE

H S E

TYPE 705/2

OUTPUT

(± 10V)

NOT FOR HUMAN USE

A P P A R A T U S

Module

HUGO SACHS ELEKTRONIK

ADJ.

D-79232 MARCH GERMANY

TAM-A

TRANSDUCER

AMPLIFIER MODULE

FILTER (Hz)

100

300

OFF

CAL

MEASURE

GAIN

REF.

20-100%

ZERO

TRANSDUCER

AUTO

FINE

COARSE

H S E

TYPE 705/1

OUTPUT

(± 10V)

GmbH

D-79232 March-Hugstetten Germany

Page 1

H S E

Table of Contents

Need help?

Do you have a question about the PLUGSYS TAM-A and is the answer not in the manual?

Questions and answers

Summary of Contents for HSE PLUGSYS TAM-A
