Visit our website to see more of our products.
www.AquaLogicInc.com

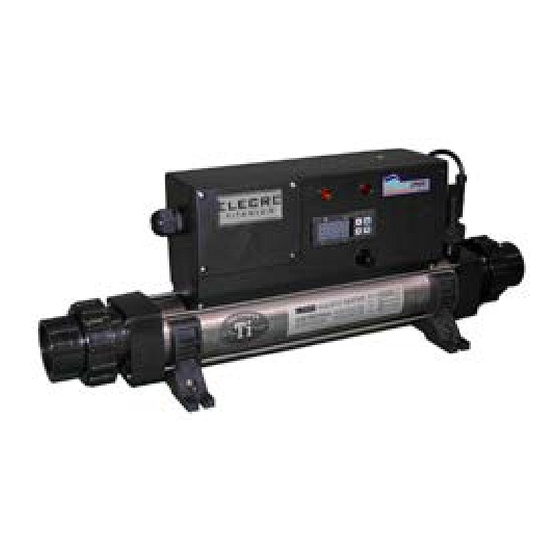

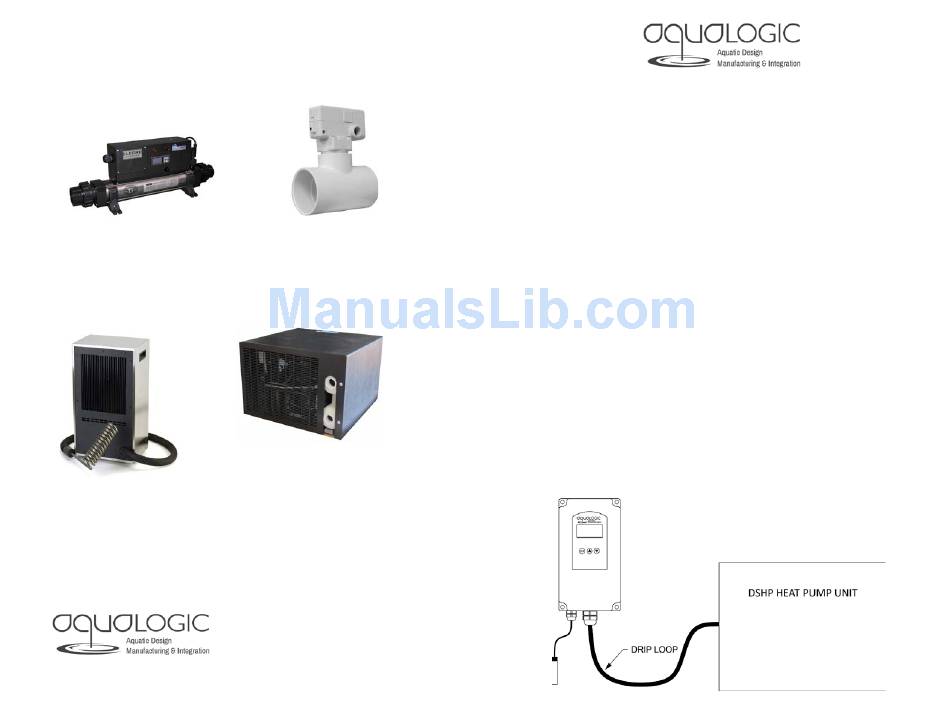

Inline Titanium heaters
1 kW thru 60 kW
TLC Trimline Cyclone Drop-
in coil water chillers -1/4
and 1/3 HP
© 2017 Aqua Logic, Inc.
Safety water flow
cutout switches
1" thru 3" pipe
Delta-Star inline water
chillers. -1/4 thru 1-1/2 HP
Aqua Logic, Inc.
9558 Camino Ruiz.
San Diego, CA. 92126
PH: 858.292.4773
email: info@aqualogicinc.com
www.AquaLogicInc.com
Rev 1
DC SERIES DUAL STAGE DIGITAL TEMPERATURE
CONTROL INSTRUCTION MANUAL FOR ALL DSHP
HEAT PUMPS
Model No. DC-DSHP
Thank you for purchasing our digital temperature controller. It is
designed to provide on/off control for commercial heating and cooling
applications. It is equipped with a red LED display that provides a
constant readout of the water temperature, and a touch keypad that
allows the user to easily and accurately select the setpoint
temperature, differential and heating / cooling modes of operation.
The control enclosure has an NEMA 4X rating but, if installed
outdoors, it should be protected against the direct weather.
Installation.
1. Mount control on a wall or any vertical surface that water
can't splash on it.
2. Install the titanium temperature sensor in your tank or sump.
Careful not to submerse beyond the warning label.
Note: For your safety, you must plug the HEAT PUMP into a dedicated 15 or
20 Amp. GFIC (Ground Fault Interruption Circuit) circuit. When installing the
control in a wet area make sure to have the power cords with drip loops so
water does not collect around the electrical connections.
Advertisement
Summary of Contents for AquaLogic DC-DSHP
- Page 1 DC SERIES DUAL STAGE DIGITAL TEMPERATURE CONTROL INSTRUCTION MANUAL FOR ALL DSHP HEAT PUMPS Model No. DC-DSHP Thank you for purchasing our digital temperature controller. It is designed to provide on/off control for commercial heating and cooling applications. It is equipped with a red LED display that provides a...
- Page 2 Temperature Controller Set-up This digital controller has been pre-programmed with all the necessary parameters to ensure reliable service and operation. The controller is pre-set from the factory with a temperature range from 30 °F to 100 °F with a display resolution of 1 degree °F and with a 1 °F temperature differential.
- Page 3 Limited Warranty Temperature Differential: When the water has reached the set point temperature, the chiller or This controller has a one (1) year limited warranty. heater will switch off and will not switch back on until the water Aqua Logic, Inc. warrants this temperature controller to be free of temperature has changed by 1 °F.
- Page 4 TEMPERATURE CONTROL PROGRAMMABLE PARAMETERS TABLE SPECIFICATIONS Parr Description Units Range Def. Set Note Probe Range: Set Point 1 out1 (CHILLER) Degrees r4 to r6 PTC: -58 to 302°F (-50 to 150°C). Set Point 2 out2 (HEATER) Degrees r5 to r7 Input: PTC 1000 Ω...
