Operation Manual
Model name
Model No
Index
1-Rating
2-Button Function Spec
3-Operating manual(Bluetooth/Handsfree)
4-Operating manual(Wi-Fi Hotspot)
5-Reference
FT0106B
Car Audio
FT0106B
FUJITSU TEN CONFIDENTIAL
Page
2P
3P
4P
5P
6P
(1/6)

Advertisement

   Summary of Contents for Fujitsu FT0106B

  • Page 1

    FT0106B Operation Manual Model name Car Audio Model No FT0106B Index Page 1-Rating 2-Button Function Spec 3-Operating manual(Bluetooth/Handsfree) 4-Operating manual(Wi-Fi Hotspot) 5-Reference FUJITSU TEN CONFIDENTIAL (1/6)

  • Page 2

    RATED VOLTAGE 12.0V(10.5~16.0V)-GROUND LOAD IMPEDANCE 4Ω BACK UP CURRENT 2.1mA OR LESS 4A or less RATED CURRENT (Vcc=13.2V 0.5W OUTPUT) AM TUNING RANGE 530~1710kHz(10kHz step) FM TUNING RANGE 87.75~107.9MHz(200kHz step) XM TUNING RANGE 2332.5~2345MHz CD/DVD TYPE 12cm DISC FUJITSU TEN CONFIDENTIAL (2/6)

  • Page 3

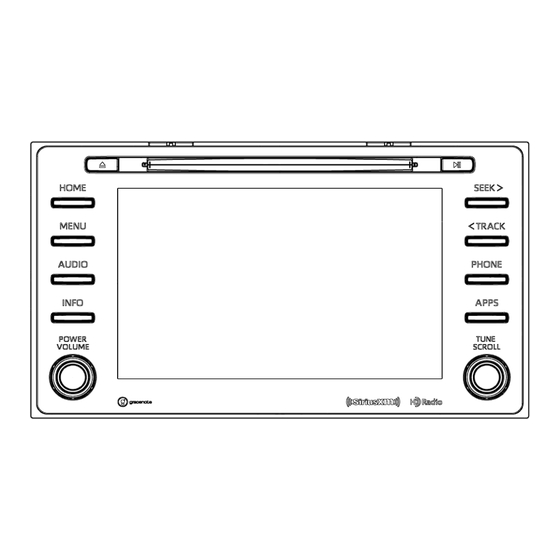

    AUDIO Display an audio source selection screen INFO Display an car infomation screen SEEK> Track up Button <TRACK Track down Button PHONE Transition to PHONE mode APPS Transition to delivery app mode PLAY/PAUSE Play /Pause Button FUJITSU TEN CONFIDENTIAL (3/6)

  • Page 4

    ⑤”Setup”画面に遷移することを確認し、画面上の"Bluetooth"釦を選択。 Confirm to change ”Setup” screen, select the ”Bleuetooth” button on the display. ※電話機の表示にしたがって操作してください ※Operat the phone after the message on the screen Push this button ⑨完了すれば"STEP3:connecting"の画面になります。 It becomes the screen of ”STEP3:connecting” if completed. STEP3:connecting↓ FUJITSU TEN CONFIDENTIAL (4/6)

  • Page 5

      ※カナダ向けモデルはWi-Fi機能なし。 Canada model :Wi-Fi unused. Push this button ⑤”Setup”画面に遷移することを確認し、画面上の 釦を押下後、 "Wi-Fi"の釦を選択。 Confirm to change ”Setup” screen, push down the button on the display. And then,”Wi-Fi” button on the display. Push this button Push this button FUJITSU TEN CONFIDENTIAL (5/6)

  • Page 6

    Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ■IC IC: 2024B-FT0106B This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
