Summary of Contents for Shimpo WHISPER-T series

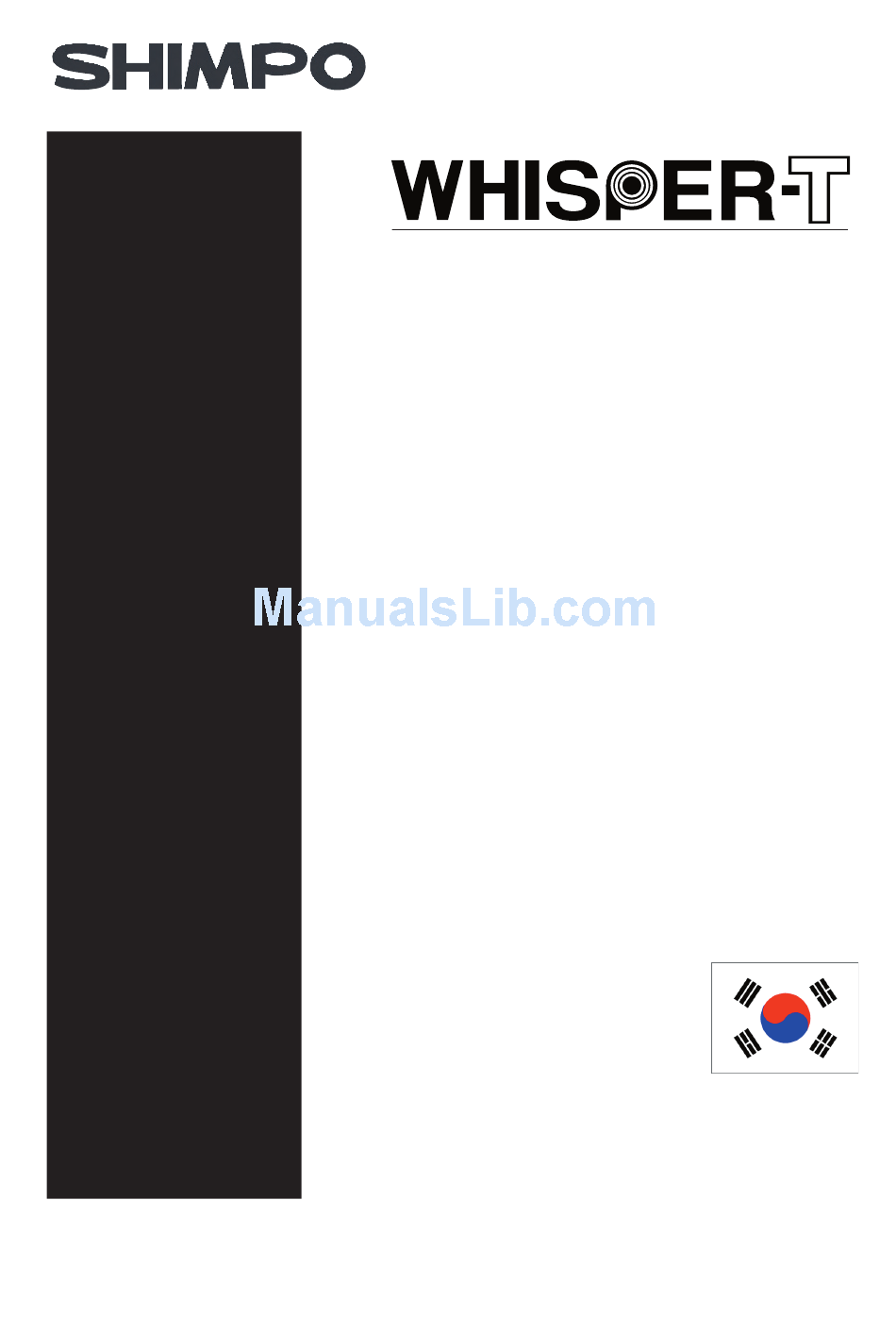

- Page 1 92776C POTTER'S WHEEL INSTRUCTION MANUAL NIDEC-SHIMPO CORPORATION...
- Page 3 Please read the entire instruction manual thoroughly before initial set-up and operation; the information contained herein will aid you in operating your Shimpo Whisper T wheel safely and with excellent results. If you have any questions regarding our product(s), call your local Shimpo dealer.
-
Page 4: Features And Benefits

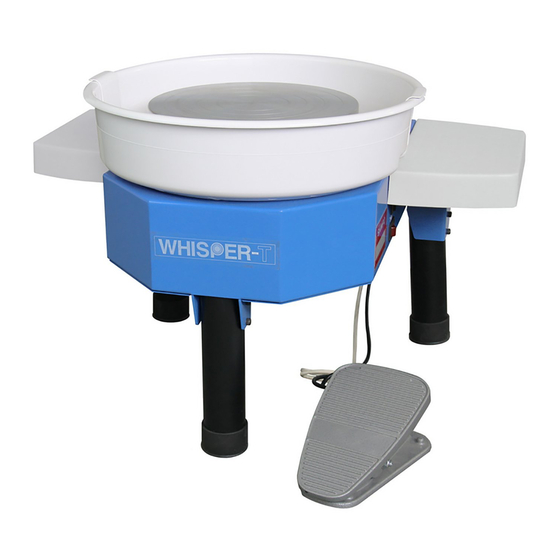

Features and Benefi ts The Whisper T Series offers the power, resilience and quietness that Shimpo wheels are known for. Features of the Whisper T include ●Heavy-duty steel construction assures long service life. ●Brushless DC motor direct drive system ensures powerful yet essentially noiseless operation. - Page 5 Injury may occure May cause injury. Stop operation of the wheel if you smell or see smoke or hear unusual noises. Shut off the power, unplug power cable and contact the Shimpo dealer or Shimpo. ！ Warning Handle with extreme care when...
- Page 6 Be careful of loose fitting clothing Do not move or hold the wheel while power is on. and long hair. The wheel cabinet may start turning and your May catch in clay or wheelhead causing hand may be caught between the wheelhead damage or injury.
-
Page 7: Leg Installation
Power connection Leg Installation Power connection ① Place the wheel vertically on Connect the power cable to a 230v the carpet as displayed in the single phase AC power outlet only. picture to the right. ② Remove the rubber caps. (keep those for future use.) Caution: Wheel is not stable... -
Page 8: Operation Warning
Operation Starting and Stopping Operation Power Switch ・Start The power switch has two functions. One is to turn wheel on and off. The other is a reset function. This wheel has ① Turn the power switch on a safety feature for over load. In order to reset, operator must switch off and on again. -
Page 9: Troubleshooting
The wheel could be overloaded causing the built-in breaker to open, ● stopping the wheel. Remove some clay. Allow the breaker to cool. Turn on. If the breaker opens again see your authorized Shimpo dealer. Did an overload cause the breaker/fuse to open at the main power source? ●... -
Page 10: Warranty
●LIMITED EXPRESS WARRANTY Shimpo warrants, to the original purchaser of new products only, that this product shall be free from defects in work- manship and materials under normal use and proper maintenance for one year from the date of original purchase. This... - Page 12 1 Terada, Kohtari, Nagaokakyo-city, Kyoto, Japan Phone ： ++81-75-958-3608 Fax ： ++81-75-958-3647...
