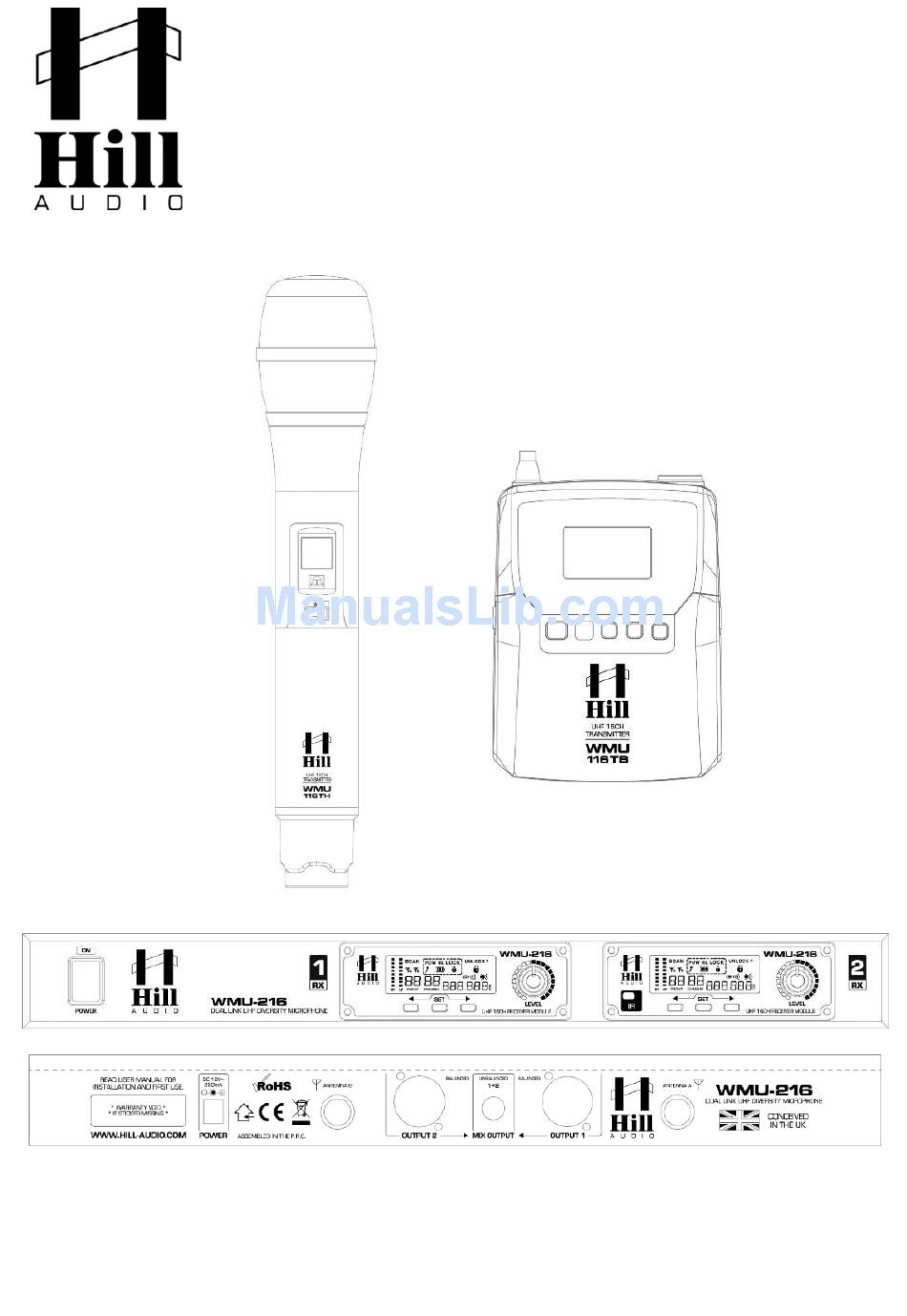

- Page 1 Dual Channel Radio Mic System USER MANUAL WMU-216-H (Hand Held) WMU-216-B (Belt Pack) Dual Channel Radio Mic System...
- Page 2 WMU-216 Radio Microphone Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English. For other languages, visit www.hill-audio.com Important Safety Instructions •...
- Page 3 WMU-216 Radio Microphone Introduction Thank you for choosing the Hill WMU-216 wireless microphone system. This professional set provides two high quality microphone with a PLL tuned UHF radio system for freedom of movement without loss of audio quality. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase.
- Page 4 WMU-216 Radio Microphone Hand Mic Transmitter 1. LCD display 2. IR sync detector 3. On/off switch 4. Battery compartment Belt Pack Transmitter 5. Antenna 6. Mute switch 7. Mini XLR socket 8. LCD display and on 9. On/off button 10. Battery compartment 11.
- Page 5 WMU-216 Radio Microphone Setting Up Insert the supplied AA batteries into the transmitters by carefully unscrewing the base of the handheld or opening the flap of the bodypack to reveal the battery compartment. Insert the batteries (ensuring that + and - are the correct way round for each cell) and carefully replace the cover. For neckband or lavalier microphones, connect the microphone lead into the bodypack, ensuring it is securely pushed into the socket.
- Page 6 WMU-216 Radio Microphone causes the GROUP label to flash in the display. Buttons 16 & 17can be used to select the Group from 1 to 7. Pressing the SET button again causes the CHANNEL label to flash. The channel can be selected within a group using buttons 16 & 17. Groups 1 to 6 have between 3 and 5 preset channels, whilst Group 7 allows access to all 81 possible frequencies.
- Page 7 WMU-216 Radio Microphone Specifications Power supply 12-18Vdc 350mA adaptor (supplied) Batteries 2 x AA (included) Carrier frequency 863.00 to 865.00MHz Channels 81 tuneable UHF frequencies Tuning method Phase-locked loop S/N ratio >105dB THD <0.5% @ 1KHz Frequency response 50Hz - 18kHz (±1dB) Image rejection 85dB typical Range 60m (max) Output impedance 2.2k ohms...
-
Page 8: Troubleshooting
WMU-216 Radio Microphone Troubleshooting LCD display does not light on receiver Ensure power adapter is connected to mains and working properly Ensure receiver is switched on Receiver LCD is on but now RF or AF signals showing Ensure that the transmitter is switched on Check that the transmitter is not out of reception range Check that the transmitter batteries are good /charged Ensure transmitter and receiver frequencies are synced (see “Tuning”)
