Summary of Contents for Fritz!Box 7360

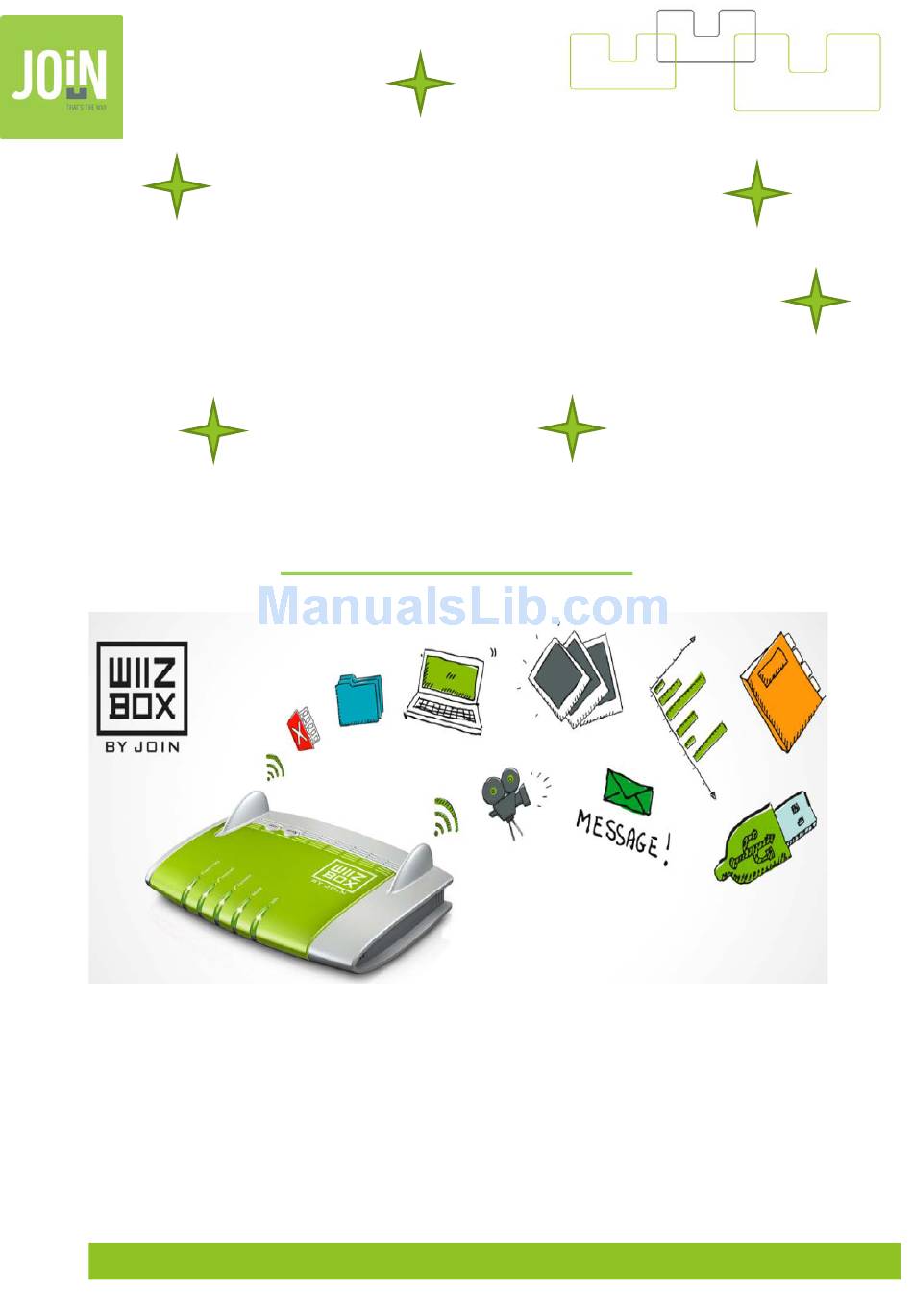

- Page 1 User Guide for FritzBox JOIN Edition : Join VDSL Join Expérience VDSL V4-6.52...
-
Page 2: Table Of Contents
How to connect your FritzBox ? ................3 First configuration : accès of the settingS ..............3 Select Language ....................5 Select Your country .................... 5 Select Annex..................... 6 Automatic reboot ....................6 Choose password....................7 wizard assist ..................... 7 Select your provider ................... -
Page 3: 1- How To Connect Your Fritzbox
HOW TO CONNECT YOUR FRITZBOX ? DSL Line Fixed telephone USB 2.0 Computer LAN Laptop LAN Wifi Connexion LAN connexion Turn on the WLAN by Pushing Wlan button and wait until Wlan led turn light. FIRST CONFIGURATION : ACCES OF THE SETTINGS Join Expérience VDSL V4-6.52... - Page 4 To set up your modem, connect your computer to your modem via Ethernet cable or WIFI. Launch a web browser and enter the following into the search address bar: http://fritz.box http://192.168.178.1 address: Join Expérience VDSL V4-6.52...
-
Page 5: 3- Select Language
SELECT LANGUAGE In this case, pick English SELECT YOUR COUNTRY Chose Luxembourg Join Expérience VDSL V4-6.52... -
Page 6: 5- Select Annex
SELECT ANNEX The first time, try with the default setting: Annex B. ( At the end of the configuration, if you don’t have any internet connection, change to Annex in A, shown in chapter n°18 AUTOMATIC REBOOT After having validated the Annex, your modem will reboot automatically. Join Expérience VDSL V4-6.52... -
Page 7: 7- Choose Password
CHOOSE PASSWORD The default password is « AVM », if you choose another password don’t forget it. The password has to be communicated to our call center if you call them. WIZARD ASSIST Click on Next. Join Expérience VDSL V4-6.52... -
Page 8: 9- Select Your Provider
9- SELECT YOUR PROVIDER Select « Join Experience » and « Join DSL ». 10- CONFIRM INTERNET CONNECTION SETTINGS Uncheck « Check the Internet connection after saving » Join Expérience VDSL V4-6.52... -
Page 9: 11- Waiting, Saving Settings
11- WAITING, SAVING SETTINGS Please wait. 12- SUMMARY INTERNET CONNECTION Click on Next. Join Expérience VDSL V4-6.52... -
Page 10: 13- Account Phone Settings
13- ACCOUNT PHONE SETTINGS If the internet connection is up, you’ll directly receive the settings from our server. If you didn’t subscribe to a fix number, just click next. 14- WIFI SETTINGS You can change the name and the password of your WiFi or just let the default settings as they are. Password is under the Modem Join Expérience VDSL V4-6.52... -
Page 11: 15- Check Fritz Os Update
15- CHECK FRITZ OS UPDATE Wait a few seconds. 16- UPDATE FINISHED If You have the last version of Fritz OS, click on “Finish Wizard” otherwise instal the last version detected. Join Expérience VDSL V4-6.52... -
Page 12: 17- Overview
17- OVERVIEW When the modem is correctly setup, internet connection IVP4 and IPV6 are connected. In case, you are not connected, please change the Annex, (Chapter-18). Join Expérience VDSL V4-6.52... -
Page 13: 18- Change Annex - Connection Failed
18- CHANGE ANNEX – CONNECTION FAILED If you have this overview, you need to change the Annex. Finish the wizard settings. Join Expérience VDSL V4-6.52... - Page 14 Go to -> Internet -> DSL Information -> (Change view to advanced) -> Line Settings On Line Settings, you can change the Annex and reboot your modem Join Expérience VDSL V4-6.52...
-
Page 15: 19- Factory Settings
FACTORY SETTINGS You have 2 solutions to reset your modem. By factory settings: click on « Forgot your password » You must restart your modem just before Next, click on « Restore Factory Settings » Join Expérience VDSL V4-6.52... - Page 16 Your modem will reset to factory settings. This will take a few minutes. The second method. Go to “system” -> “Backup” -> Factory Settings Join Expérience VDSL V4-6.52...
-
Page 17: 20- Settings Your Own Modem
20- SETTINGS YOUR OWN MODEM If you are using your own modem, the model and the firmware need to be compatible. To add the login and the password sent by Join Experience. Connect on your modem, go to “internet” and then “account information”, selected “Join Experience”... -
Page 18: 21- How To Update Your Modem
HOW TO UPDATE YOUR MODEM ? With operational internet connexion, you can update your firmware, to do it : Go to « System » -> « Update » and click on « Find New FritzOS. If your modem finds a new OS, please install it. Without internet connexion : Go to «... - Page 19 Insert the password « AVM » and click on « Start Update ». Choose the FritzOs file you previously downloaded to your computer or copy from the manufacturer's website AVM: FritzBox 7360 : http://download.avm.de/fritz.box/fritzbox.fon_wlan_7360_v2/firmware/english/FRITZ.Box_Fon_WLAN_7360. en-de-es-it-fr-pl.124.06.52.image FritzBox 7490 : http://download.avm.de/fritz.box/fritzbox.7490/firmware/english/FRITZ.Box_7490.en-de-es-it- fr-pl.113.06.52.image FritzBox : http://download.avm.de/fritz.box/...
- Page 20 During the firmware update, until the modem reboots, the light « info » is flashing. Don’t touch anything on the web page and don’t disconnect any câble. At the end of the update progress, your modem will reboot automaticaly. Join Expérience VDSL V4-6.52...
-
Page 21: 22- Forwarding Call
22- FORWARDING CALL When you want to transfer your calls from your fixed line to another number, for example a mobile number, you can configure this transfer directly on your modem as follows: On the modem configuration page, click on "Telephony" -> "Call management" -> "Call forwarding ->" New call forwarding ". - Page 22 Add the destination number, for example : 671 000 000. You can choose which fix number phone emits the call or leave it in automatic mode. Join Expérience VDSL V4-6.52...
- Page 23 You have 5 solutions for your forwarding call: Immediately = your fix line doesn’t ring and the call will be directly sent to the destination phone number, 671 000 000 for example Delayed = Forwarding call with average 4 – 5 tones (standard setting) Long delay = Forwarding call with 7 –...
-
Page 24: 23- Calling Line Identification Restriction
23- CALLING LINE IDENTIFICATION RESTRICTION You have the option to hide your phone number during a call, in order to do this, you have two methods: First, by connecting to your modem by browsing, on the menu "Telephony" -> "Telephony Devices" Select your device, in this example "Handset 2". - Page 25 The second method, use your phone by pressing the keys: * 31 * then dial the number of your destination. Example: * 31 * 671000000 Join Expérience VDSL V4-6.52...
-
Page 26: 24- Answering Machine
24- ANSWERING MACHINE Activate your answering machine by clicking the « 0/1 button » on the "Answering Machine" menu. In the case where a call forwarding is active, do not activate your answering machine, it will be create a conflict with the delay time of the answering machine and the forwarding call. - Page 27 Set your schedule time and answering mode: You can be alerted by e-mail when you have a new message on your answering machine. To remotely interrogate your answering machine, you must configure a four-digit PIN. Join Expérience VDSL V4-6.52...
- Page 28 Join Experience website https://joinexperience.com/en-Lu USER GUIDE FRITZBOX 7360 LINK: https://en.avm.de/fileadmin/user_upload/EN/Manuals/FRITZ_Box/Manual_FRITZBox_7360.pdf USER GUIDE FRITZBOX 7490 LINK: https://be.avm.de/fileadmin/user_upload/BENL/Service/Manuals/fr/FRITZ_Box/Manual_FRITZ_Box_7490_fr.p In case your internet connection failed : Call center at 9009 from mobile or 671 009 009 or 28 89 90 09 Contact : https://joinexperience.com/contact-us...
