Summary of Contents for Audio-Opus Opus#11

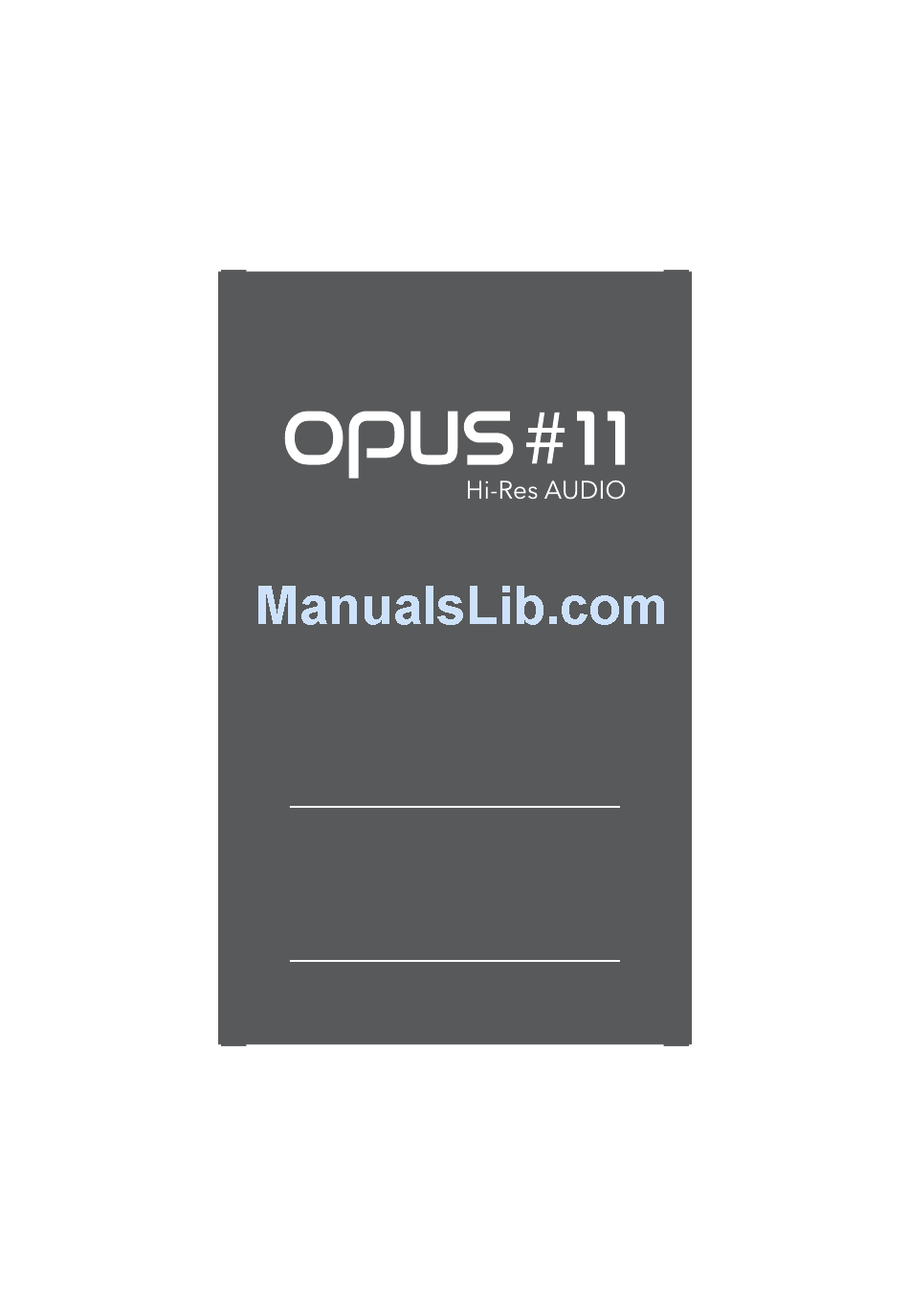

- Page 1 INSTRUCTION BOOK...
-
Page 2: Table Of Contents
| CONTENTS Ⅰ. Essential Information to Get You Started Components ••••••••••••••••••••••••••••••••••••••••••••••••••••••••• Names and functions ••••••••••••••••••••••••••••••••••••••••••••••••• Power supply management and charging ••••••••••••••••••••••••••••• Ⅱ. Using USB DAC player/application introduction •••••••••••••••••••••••••••••• Connecting phone and listening to Hi-Res music •••••••••••••••••••••••• PC driver installation and instructions ••••••••••••••••••••••••••••••••• Ⅲ. -
Page 3: Components
Warranty Card CHARGE BAT. / CONNECT USB Micro B to Micro B (50mm) for Android USB DAC Headphone Amplifier Opus#11 USB A to MICRO B (160mm) (For USB Camera Adapter connection) Apple iPad Lightning to USB Camera Adaptor (Sold separately) USB Cable (1.2M) -
Page 4: Names And Functions
| Names and functions DC JACK-IN USB 2.0 IN EARPHONE-OUT (5V/1.5A) (MICRO 5PIN) (3.5pie) Charge indicator Charging : Red Finished : LED off Battery capacity indicator and USB connection status indicator Battery capacity color indicator Over 50% : Blue 49%~20% : Purple 19%~5% : Less than 5% : Blink, Red... -
Page 5: Power Supply Management And Charging
| Power supply management and charging ∙Connecting and charging OPUS#11 OPUS#11 CHARGE CHARGE BAT. / CONNECT BAT. / CONNECT 1. Use Micro USB cable provided to connect device with PC to charge or 5V/1.5A adaptor plugged in DC JACK-IN. - Charge LED will turn red when charging and when charging is complete it will automatically be turned on. -
Page 6: Usb Dac Player/Application Introduction
| Power management and charging the device ∙USB DAC player/application introduction ※ Caution! You must install and use the USB DAC application among those listed below to ensure high quality Hi-Res audio files playback. Android: USB Audio Player Pro (Purchase at Google Store) Onkyo HF Player (Purchase at Google Store) Neutron Music Player (Purchase at Google Store) iphone:... -
Page 7: Connecting Phone And Listening To Hi-Res Music
| Connecting phone and listening to Hi-Res music ∙Android OS smartphones CHARGE BAT. / CONNECT 1. Connect provided USB cable (50 mm) to a smartphone USB port (5 pin). 2. The power will be turned on automatically when earphones are connected to the product. (CONNECT LED will blink for 5 sec.) 3. - Page 8 | PC driver installation ※ Download and install driver (TheBIT_DriverSetup_v3.34.0.exe for Windows OS from www.audio-opus.com to operate the product from PC. Turn the power on by plugging earphone or headphone into earphone port when connecting the product with PC for installation.
-
Page 9: Pc Driver Installation And Instructions
| PC driver installation and instructions ※ Connect the device with PC through USB cable, check for driver availability as depicted below in Device Manager menu (Control panel > System and security > System > Device Manager). In case the driver is not installed properly follow next instructions. -
Page 10: General Specifications
| General specifications General Specifications Body Material[Design] Aluminium[Slim] 7.9T Dimensions[mm] 56 x 103 x 7.9T Weight Battery Capacity 1,400mAh / 3.7V Playing Time 8.5Hr XS1-U8A-64 (XMOS) Sabre32 ES9018K2M (32bit DAC) OUTPUT IMPEDENCE 1.2 ohm OUTPUT LEVEL 2.1Vrms(No Load) 118dB @ 1kHz S/N Ratio CROSS TALK 133dB @ 1KHz... -
Page 11: Safety Measures And Escape Clauses
| Safety measures and escape clauses Please check the following measures before use. No liability or responsibility is accepted by the manufacturer, importer for any injury, damage, loss, accidents arising from the neglecting the measures listed below when using the device. ▪... -
Page 12: Fault Detection Prior To A/S Request
| Fault detection prior to A/S request Q: It can not be turned on. A: Check the battery power level. Charge the device for 1 hour and recheck. Q: It can not be charged. There is no connection with PC. A: 1. -
Page 13: A/S Request And Customer Service
| Customer support T.B.D / 12 Other Information...
