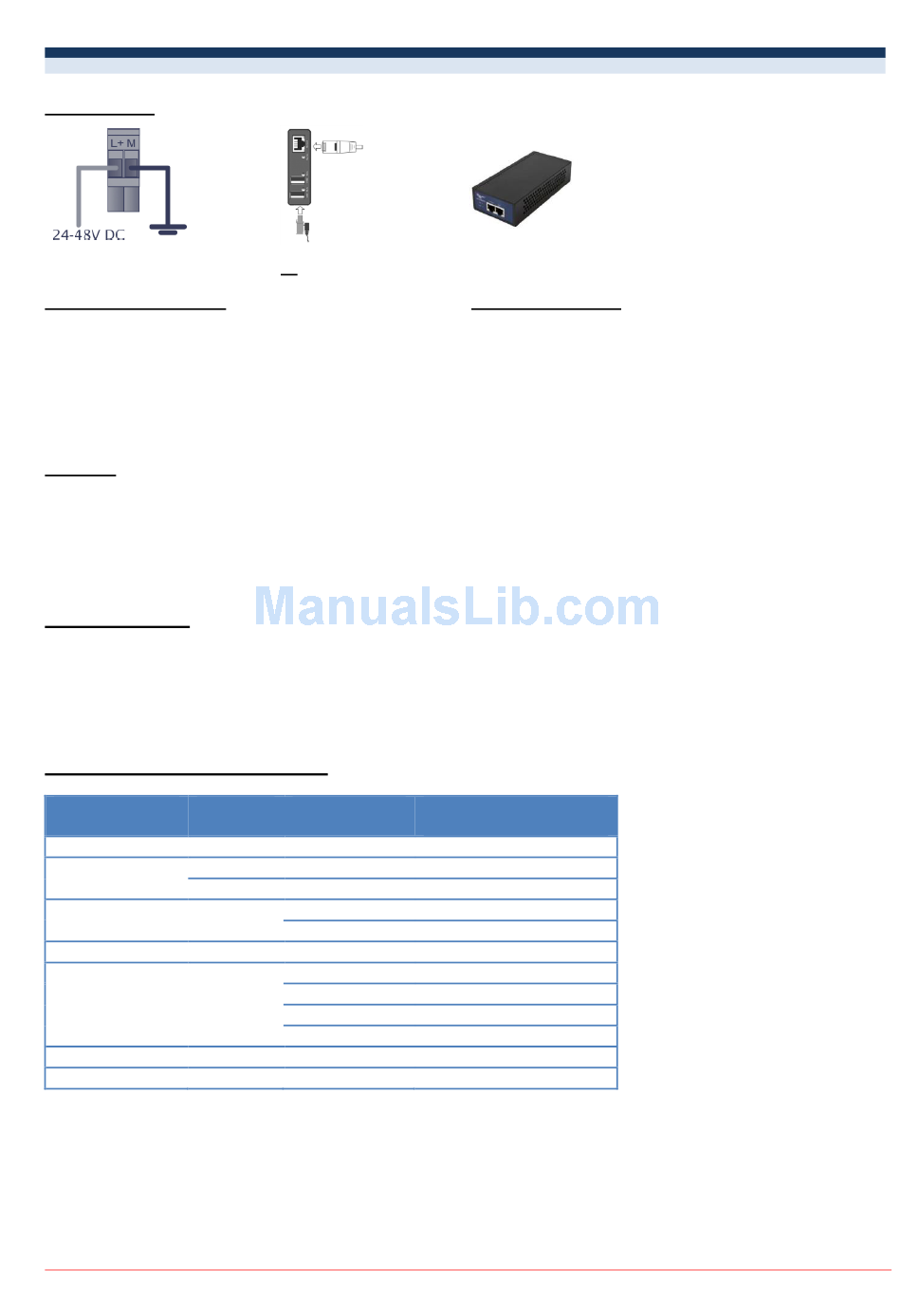

USB Server Gigabit – Quick Start Guide
Power supply
24 V power supply
System-LED (green/ orange)
GREEN ON
Power supply and system OK
GREEN flashing
System start
ORANGE flashing
Current firmware update or reset to factory
settings
ORANGE ON
Reset to factory settings finished; Restart
required
Software
Install the software programs from the Software-CD (folder: USB-Server):
WuTility
USB Redirector
Scope of Supply
USB Server Gigabit
24 V power supply
Ethernet cable, 1m
Quick Start Guide
Connection variants USB server
Model
Channel
PI 160
IR
PI 2xx
IR+VIS
IR
PI 4xx
IR
PI 6xx
IR
PI 1M/ 05M
IR
Pyrometer
IR
PI + Pyrometer
IR
ACPIUSBSGB-QSG-E2017-07-A
or
max. speed
max. number of units
on one USB server
120 Hz
2
128 Hz
1
128 Hz
2
80 Hz
1
27 Hz
2
32 Hz
1
27 Hz
2
32 Hz
1
80 Hz
1
1 kHz
1
-
2
-
2
Power over Ethernet [Part-No.: ACPIPOE]
State-LEDs (green/ red)
GREEN ON
USB port in use
RED ON
The USB server has been disconnected the power
supply of the port e.g. due to overload or temporary
disconnecting of the USB device
1/8
Advertisement
Summary of Contents for optris ACPIPOE
- Page 1 USB Server Gigabit – Quick Start Guide Power supply 24 V power supply Power over Ethernet [Part-No.: ACPIPOE] System-LED (green/ orange) State-LEDs (green/ red) GREEN ON Power supply and system OK GREEN ON USB port in use GREEN flashing System start...
- Page 2 USB Server Gigabit – Quick Start Guide 1. Direct Connection USB Server Gigabit [ACPIUSBSGB] (Point-to-Point-Network) Installation On a direct connection to a PC both, the USB server as well as the PC must use a fixed IP address. There is no DHCP server available.
- Page 3 USB Server Gigabit – Quick Start Guide If you want to switch between a user-defined IP address and a DHCP server, the following alternative configuration is recommended: Under the General tab choose Obtain an IP address automatically, and on the Alternate Configuration tab, click User configured and enter a user defined IP address: Starting the program WuTility...
- Page 4 USB Server Gigabit – Quick Start Guide 8. The standard setting of the USB server is DHCP. On a direct connection to a PC set a static IP address to the device. Take care that the network part of the address is identical to the network part of the IP address of the connected PC (therefore: 192.168.0).
- Page 5 USB Server Gigabit – Quick Start Guide 11. You see in the Redirector the connected USB device. Mark it and press the Claim button. The status is changing now to Connected. You can see the IP address of your local PC under Client: The device (IR camera PI, CTvideo or CSvideo) can now be used in the same way as it would be connected directly to a local USB port of your PC.
- Page 6 USB Server Gigabit – Quick Start Guide 2. Connection USB Server Gigabit [ACPIUSBSGB] via Network Installation On a connection to a PC both over the network, the USB server as well as the PC must use an automatic IP address. Here the DHCP server is available. Review the following settings on your PC once (depending on the operating system the procedure can differ from the here shown –...
- Page 7 USB Server Gigabit – Quick Start Guide Start the WuTility program. Regardless of the network settings of the USB server, this is now displayed (if not, simply update the view with Scan). Select the USB server and then press the IP address: ...
- Page 8 USB Server Gigabit – Quick Start Guide The status is changing now to connected. You can see the IP address of your local PC under Client: The device (IR camera PI, CTvideo or CSvideo) can now be used in the same way as it would be connected directly to a local USB port of your PC.
