Summary of Contents for seeCube Glasses-Free 3D

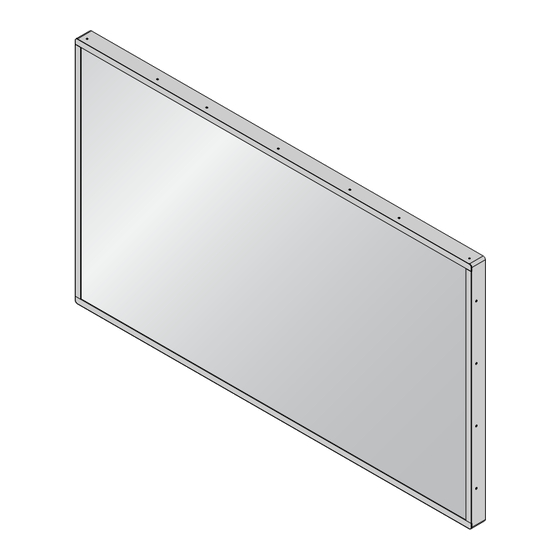

- Page 1 65” Glasses-Free 3D Display User Manual Version: 1.0...
-
Page 2: Table Of Contents
Table of Contents 1. Safety Precaution 1.1. Power ........... 1 1.2. - Page 3 4.5. Preferences Menu ......... 23 Network Mode Menu ................24 Upgrade Software ...................26 4.6.
-
Page 4: Compliance Information
Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without the express written consent of the manufacturer. Disclaimer The information in this document is subject to change without notice. - Page 5 Canadian Department of Communications Compliance Statement DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No.60065-03. FCC Information: 8VH WKH DWWDFKHG VSHFL¿HG FDEOHV ZLWK WKH VHH&XEH *ODVVHV)UHH ' monitor so as not to interfere with radio and television reception.
-
Page 6: Limited Warranty
(b) the Product will be free from defects in materials or workmanship. About this Manual This document provides information related to functionality of this seeCube Glasses-Free 3D device. Although it provides basic information related to equipment connections, this document is not LQWHQGHG WR SURYLGH KDUGZDUH VSHFL¿FDWLRQV... -
Page 7: Safety Precaution
Disconnect your seeCube Glasses-Free 3D from the power source before cleaning. Do not clean your seeCube Glasses-Free 3D while it is switched on. Use a soft and damp cloth to clean the surface of product. Do not use chemical cleaners to clean the screen. Do not apply cleanser directly on your display. -
Page 8: Vent Holes
Safety Precaution 1.3. Vent Holes Vent holes on the cabinet of your seeCube Glasses-Free 3D product ensure optimum performance of your display without overheating. Do not block the openings in any way. 1.4. Temperature & Fire 'R QRW H[SRVH \RXU VHH&XEH *ODVVHV)UHH ' WR ¿UH RU KLJK KHDW sources. - Page 9 2, right side x 2) for attaching the stand. 6. Align the holes on the stand with the holes on the rear side of the seeCube Glasses-Free 3D. 7. Secure the stand with the provided screws. The following screw type is recommended for use in a pedestal stand installation: M6 x 9mm.
-
Page 10: Installation Of A Wall Mounting Bracket
Safety Precaution Installation of a Wall Mounting Bracket Please use a wall bracket appropriate for the size and weight of the display. The seeCube Glasses-Free 3D is compatible with a standard VESA mount. ‡ Four people are required for installation 1. -
Page 11: Overview
Overview 2. Overview 2.1. Packing Checklist seeCube Glasses-Free 3D Remote Control(XY1041) Power Cord Remote Control USB Receiver(XY1041) -
Page 12: Display Overview
Overview 2.2. Display Overview Item Description Audio jack Connect to an external speaker. Connect to remote control USB receiver or USB device (for USB ports playback of Ultra-D formatted content). HDMI ports Connect to the HDMI device. LAN port Connect to the RJ45 cable for internet software update. Power socket Connect a power cord. -
Page 13: Remote Control Overview
Overview 2.3. Remote Control Overview Item Description Home Press to display or hide the OSD. Navigates and changes settings in the OSD. Left Navigates and changes settings in the OSD. Down Navigates and changes settings in the OSD. Back Press to return to the previous level or exit the OSD menu. 3UHVV WR JR WR WKH SUHYLRXV 8OWUD' ¿OH LQ /RDG 3OD\ Previous... - Page 14 Overview Item Description Conversion Press to display the CONVERSION menu (OSD). Press 3D Depth DQG SUHVV WR DGMXVW WKH GHSWK 3D Depth factor. Next 3UHVV WR JR WR WKH QH[W 8OWUD' ¿OH LQ /RDG 3OD\ PRGH 3UHVV WR SOD\ RU SDXVH WKH 8OWUD' ¿OH LQ /RDG 3OD\ PRGH Play/Pause (Currently no support this function)
-
Page 15: Setup
Setup 3. Setup 3.1. Setting up the Remote Control The remote control comes with one 3V lithium battery (CR2025). The battery is pre-installed in the remote control. To begin using the remote control, remove the plastic tab from the battery compartment. Changing the Battery 1. - Page 16 Setup 2. Remove the old battery. 3. Insert the new battery with the positive terminal facing up. 4. Angle the battery cover into the remote and insert it. 5. Flip down to close the battery cover. CAUTION: ‡ Use only a 3V lithium battery (CR2025). ‡...
-
Page 17: Install Remote Control Usb Receiver
Install Remote Control USB Receiver Pairing the Remote Control 1. Connect the USB receiver to the seeCube Glasses-Free 3D. 2. Press Right and Back buttons on the remote control 3 minutes. One the USB receiver and remote control are paired to the display,... -
Page 18: Connecting The Display
Setup 3.2. Connecting the Display Connecting to HDMI Device Real-Time Conversion Real-Time conversion mode converts 2D or 3D stereoscopic video from the HDMI input into the Ultra-D format for display on the monitor. This process adds depth to the video, allowing the Ultra-D display to produce a 3D viewing experience without requiring the viewer to wear 3D glasses. -
Page 19: Connecting A Usb Device
Setup Connecting A USB Device Load & Play Load & Play is a feature that lets you play back pre-converted content HQFRGHG LQ WKH ODWHVW YHUVLRQ RI WKH 8OWUD' IRUPDW 8OWUD' Y ¿OH H[WHQVLRQ ³XOWUDG´ RQ WKH GLVSOD\ 3OD\EDFN RI RWKHU ¿OH W\SHV LQFOXGLQJ OHJDF\ 8OWUD' ¿OH IRUPDWV LV QRW VXSSRUWHG DQG PD\ UHVXOW in a black screen. - Page 20 Certain USB device brands may not exhibit expected results-- unplugging them does not exit Load & Play mode. A message “Unfortunately, seeCube has stopped” may display. When a USB device is not functioning, discontinue use of that USB device and...
-
Page 21: Connecting The Audio Device
Setup Connecting the Audio Device An external speaker may be connected via the 3.5mm stereo jack. Connecting to Ethernet 7KH (WKHUQHW SRUW LV SURYLGHG VROHO\ IRU GRLQJ ¿UPZDUH XSGDWHV DQG LV not intended for accessing streaming content or other data. -
Page 22: Powering On The Display
Setup 3.3. Powering on the Display 1. Connect the power cord to the display and the other end to a wall outlet. 2. Turn on the power switch. -
Page 23: On-Screen Display Menu
On-Screen Display Menu 4. On-Screen Display Menu This section introduces the On-screen Display (OSD) menus and SURYLGHV LQIRUPDWLRQ IRU WKH VHWXS DQG FRQ¿JXUDWLRQ RI WKH GLVSOD\ functions. 4.1. Main Menu The main menu is available by pressing the HOME button on the UHPRWH FRQWURO 3UHVV WR VHOHFW WKH GHVLUHG VXEPHQX MAIN MENU... -
Page 24: Input Menu
On-Screen Display Menu Label Description Press OK to enter the DEVICE STATUS menu to view DEVICE STATUS display information. See “Device Status Menu” on page 29. Press OK to enter the INFO menu to display brand INFO information. See “Info Menu” on page 30. 4.2. -
Page 25: Conversion Menu
On-Screen Display Menu Label Description ULTRA-D PLAYBACK / Start or stop Load & Play of content from a USB STOP ULTRA-D PLAYBACK storage device. Stop Real Time Conversion and bypass the conversion process so the currently selected video input is displayed unprocessed. Menu interface is BYPASS disabled while in BYPASS mode. -
Page 26: Mode Menu
On-Screen Display Menu Mode Menu The MODE menu allows you to select the 2D or 3D input source. It also allows you to watch 2D as 2D without applying any conversion to Ultra-D. To select the type of mode: 1. Press HOME on the remote control. 2. -
Page 27: Picture Menu
On-Screen Display Menu 4.4. Picture Menu The PICTURE menu allows you to adjust the depth factor, depth offset, brightness, and contrast properties of the video source. To select the type of property: 1. Press HOME on the remote control. 2. 3UHVV WR VHOHFW PICTURE. -
Page 28: Borders Menu
On-Screen Display Menu Borders Menu The BORDERS menu allows you to setup the 3D depth settings. To navigate to the BORDERS menu: 1. Press HOME on the remote control. 2. From the MAIN menu, select PICTURE and press OK. 3. 3UHVV WR VHOHFW BORDERS and press OK. -
Page 29: Preferences Menu
On-Screen Display Menu 4.5. Preferences Menu The PREFERENCES menu allows you to select certain utility functions. To select a setting menu: 1. Press HOME on the remote control. 2. 3UHVV WR VHOHFW PREFERENCES. 3. Press OK to select the method. FACTORY RESET NETWORK MODE : DHCP UPGRADE... -
Page 30: Network Mode Menu
On-Screen Display Menu Network Mode Menu The NETWORK MODE menu allows you to setup the network settings. To select the network setting type: 1. Press HOME on the remote control. 2. From the MAIN menu, select PREFERENCES and press OK. 3. -
Page 31: Network Settings
On-Screen Display Menu 6HWXS ,3 &RQ¿JXUDWLRQ 7KH IROORZLQJ VHFWLRQ GHPRQVWUDWHV KRZ WR PDQXDOO\ FRQ¿JXUH \RXU network settings. 1. 3UHVV WR VHOHFW ,3 DGGUHVV VXEQHW PDVN JDWHZD\ DQG DNS settings. 2. Press OK to enter a setting. NETWORK CONFIGURATION IP ADDRESS SUBNET MASK GATEWAY SAVE... -
Page 32: Upgrade Software
On-Screen Display Menu Upgrade Software The following section demonstrates how to perform the software upgrade procedure. CAUTION: Do not disconnect or power down the display at any time during the upgrade process to prevent damage or corruption to the ¿UPZDUH The Upgrade Software procedure requires a network connection with Internet access. - Page 33 On-Screen Display Menu If there are no updates available, a System is up-to-date screen displays. System is up−to−date When a new upgrade version is available, you are asked to initiate the download. 4. Press OK to start the download process. Upgrade version mim8974−eng.git.20151021.130652 is available on server Press OK to start downloading...
- Page 34 On-Screen Display Menu Once the download is complete, you will need to reboot the display to initiate the installation process. 5. Press OK to reboot and install the new upgrade version. Downloaded version mim8974−eng.git.20151021.190452 Press OK reboot and install...
-
Page 35: Device Status Menu
On-Screen Display Menu 4.6. Device Status Menu The DEVICE STATUS menu lists information regarding the display’s hardware and software state. It is only for display. The information is QRW FRQ¿JXUDEOH WKURXJK WKLV PHQX 1. Press HOME on the remote control. 2. -
Page 36: Info Menu
On-Screen Display Menu Label Description Display the current input signal resolution from the active HDMI input. The information displays available HDMI Input Status resolution, Unknown for unrecognized resolution formats, and No HDMI Input if an HDMI signal is not detected. Displays the current signal status of HDMI port 1: ‡... -
Page 37: Troubleshooting
Troubleshooting 5. Troubleshooting This section lists known issues with the software release. Future software releases may resolve these issues. Question: Flashes and corrupted image during mode switch. Answer: During a mode switch the system restarts the video capture stack, but the trigger for this process relies on invalid images being sent through the system which means the image GLVSOD\HG ZLOO EH FRUUXSWHG EULHÀ\ ZKLOH WKH V\VWHP UHORFNV WR the new HDMI signal. - Page 38 Troubleshooting Question: Video plays black, then blinks. Answer: This is a known issue. Either unplug and plug the HDMI input cable (HDMI In 1) and try again, or power down (turn off) the monitor, wait 5 seconds, then power up (turn on) the monitor. Question: Video mode switch is slow.
- Page 39 Troubleshooting 4XHVWLRQ 'LVSOD\ ÀDVKHV DQG UHWXUQV ZLWK VSHFNOHVGLVWRUWLRQ black lines. Answer: This shows up as fringing around objects and is especially visible in dark areas of the video. Power down (turn off) the monitor, wait 5 seconds, then power up (turn on) the monitor to resolve this.
-
Page 40: Faq
6. FAQ This section contains frequently asked questions and answers. Question: I’m trying Load & Play but every time I play a pre- HQFRGHG ¿OH , JHW D EODFN VFUHHQ :KDW¶V JRLQJ RQ" $QVZHU 7KH /RDG 3OD\ IHDWXUH RQO\ SOD\V EDFN ¿OHV HQFRGHG XVLQJ WKH ODWHVW UHYLVLRQ RI WKH 8OWUD' ¿OH VSHFL¿FDWLRQ 8OWUD' Y HQFRGHG ¿OHV ZLWK D ³XOWUDG´... -
Page 41: 6Shfl¿Fdwlrqv
6SHFLÀFDWLRQV 7. 6SHFL¿FDWLRQV 7.1. 6SHFL¿FDWLRQV Display 10-bit, 16.7 million colors Visible Screen Size 3840 x 2160@60Hz 4:4:4 Power Supply 100-240 V, 50/60 Hz Power Consumption ‡ 640 x 480p/60 ‡ 480p/60 (4:3/16:9) ‡ 720p/60 ‡ 1080p/24 ‡ 1080p/30 ‡ 1080p/60 Supported Video Resolutions ‡... -
Page 42: Preset Modes
6SHFLÀFDWLRQV 7.2. Preset Modes 7.3. HDMI Timing 7.4. Video Input Limitations The following is a list of video signals that are compatible with all units: ‡ 480p60 (both 4:3 and 16:9 aspect ratios are supported, however 4:3 content will be stretched horizontally) ‡... - Page 43 6SHFLÀFDWLRQV Signal rendering results in a slight delay in the display of the signal and may be apparent when gaming. It is recommended to use the BYPASS mode when playing games to eliminate the lag time from broadcast to display. The device automatically detects the input signal format.
