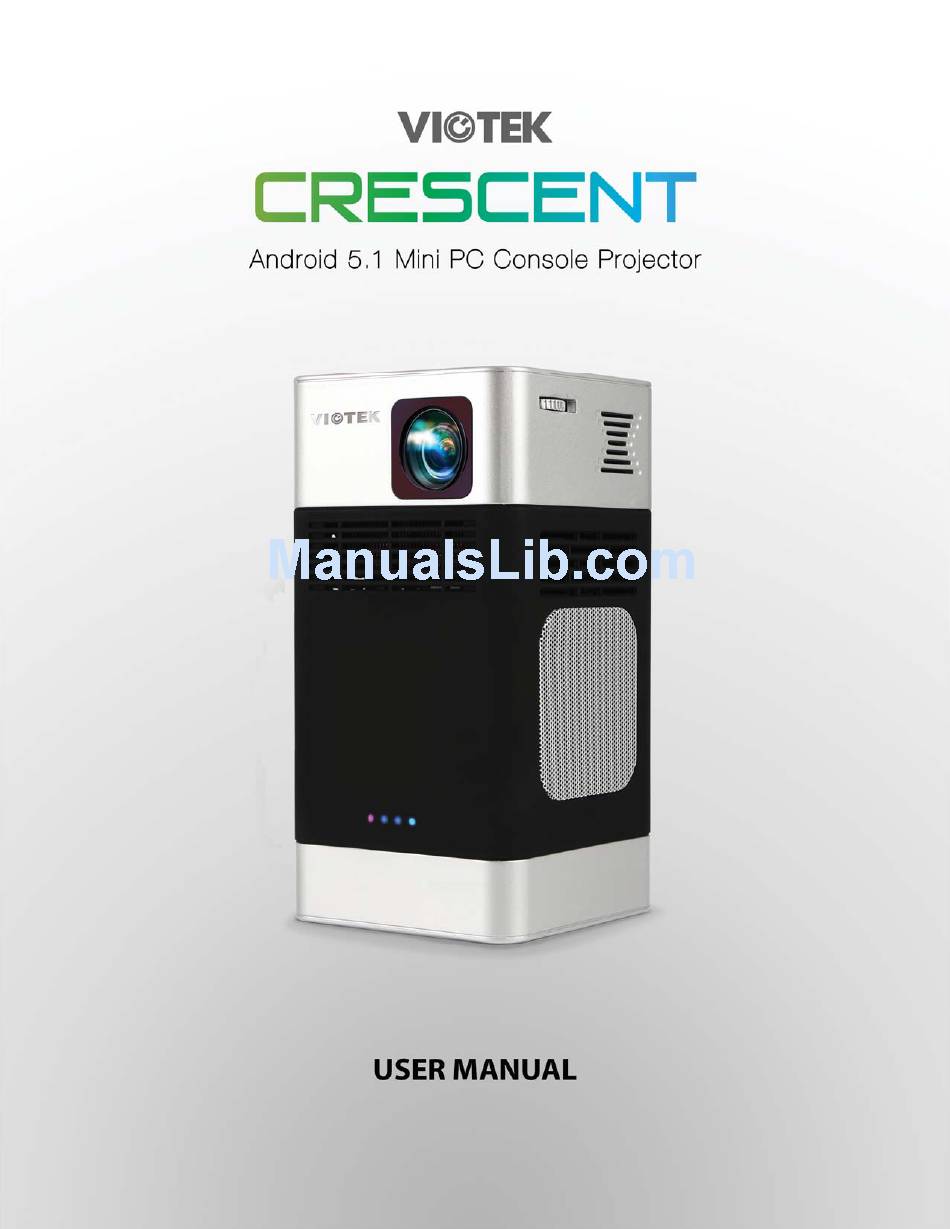

Viotek CRESCENT User Manual

Android 5.1 mini pc console projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRESCENT and is the answer not in the manual?

Questions and answers

Summary of Contents for Viotek CRESCENT

  • Page 2 Customer Service: 1-855-229-9472...

  • Page 3: Table Of Contents

    3.1 Indicator Information .......................... 7 3.2 Charging Instructions ......................... 7 3.3 Remote Control Instructions ......................8 Section 4. Powering the Crescent On and Off ..................9 Section 5. Adjustment ..........................10 5.1 Focus ..............................10 5.2 Keystone Correction ..........................10 5.3 Throw Distance ............................

  • Page 4: Section 1. Safety Information & Guidelines

    • Charge the projector at least 6.5hrs before attempting to use it for the fi rst time. • If the Crescent will not be used for a long period of time, discharge and recharge the battery once a month and store in a dry, suitable location.

  • Page 5: Disposal At End-Of-Life

    The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any Viotek Crescent at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility. Local regulations and laws pertaining to the recycling and disposal of lithium ion batteries and/or products containing them will vary according to country, state, and local governments.

  • Page 6: Crescent Diagram

    2.2 Crescent Diagram FRONT BACK Projector Lens Air Vents USB-C USB 2.0 Port Charging Port HDMI Port Rear Indicator Laser Keyboard Front Indicator SIDE TOP & BOTTOM Focusing Dial Air Vents Power Button Air Vents Speaker ON/OFF Switch...

  • Page 7: Laser Keyboard Diagram

    3. USB-C Charging Port: This port may only be used for charging the projector. Use only the cables included in the original packaging or received from Viotek as a replacement.

  • Page 8: Remote Control Diagram

    2.5 Remote Control Diagram To ensure full functionality, the remote should be used within range of the projector. The projector’s Remote Control allows you to control the projector’s functions. Power Mute Confirm / Pause Left / Rewind Down Right / Fast Forward Menu Volume Up / Down Return...

  • Page 9: Glasses Diagram

    • If the projector doesn’t charge, check that its Charging Adapter is securely connected. • Use only the Charging Adapter included in the original packaging or received from Viotek as a replacement. • Before storing, fully charge the projector to prevent battery over-discharge due to non-use.

  • Page 10: Remote Control Instructions

    3.3 Remote Control Instructions The projector’s Remote Control allows you to control the projector’s functions. Power Mute Confirm / Pause Left / Rewind Down Right / Fast Forward Menu Volume Up / Down Return Home Power: Press to turn the projector on or off Mute: Press to silence audio from the speakers Up/Down:...

  • Page 11: Section 4. Powering The Crescent On And Off

    Section 4. Powering the Crescent On and Off When powering on your projector, there are two diff erent options. Locate the ON/OFF switch on the bottom of the projector and make sure it is in the ON position. This switch should only be used to reset the projector and/or for complete power off for safe storage and transportation.

  • Page 12: Section 5. Adjustment

    Section 5. Adjustment 5.1 Focus Depending on the surface you are using for projection and the distance between the surface and the projector, some adjustment may be needed. Rotate the wheel slowly to the left or right until the screen is clear.

  • Page 13: Section 6. Home Menu Functions

    Section 6. Home Menu Functions After the projector fi rst turns on and loads, the Home Menu will show. This menu has two screens and can be accessed by pressing the remote’s Home button. 6.1 Language Selection Step 1. From the Home Menu, select “Settings”. Step 2.

  • Page 14: Casting From Your Phone

    6.3 Casting from Your Phone The projector is capable of mirroring your phone’s screen or sending information from your phone’s screen if desired. To use this feature, see the following image(s) and information. Android Start Mirroring (AirPinCast): Step 1. Connect the projector and phone to the same Wi-Fi network. Step 2.

  • Page 15: Using The File Manager

    6.4 Using the File Manager Once connected to a stable Wi-Fi connection, the projector can be used to download, copy, and use fi les that are compatible with the Android OS. If needed, fi les can also be deleted. To use this feature, see the following information. Downloading Files: Step 1.

  • Page 16: Connecting To Bluetooth

    6.6 Connecting to Bluetooth The projector uses Bluetooth 4.0. To use this feature, see the following image(s) and information. Bluetooth REFRESH RENAME THIS DEVICE SHOW RECEIVED FILES Paired devices Laser Projection Keyboard Available devices 44:3Q:17:T4:3C:69 JATRPF006 PSAD-URP Pairing: Step 1. From the projector’s Home Menu, select “Settings”.

  • Page 17: Section 7. Additional Functions

    Section 7. Additional Functions 7.1 Speaker The projector has built-in speaker functionality. To use this function, simply use the projector to play any content with audio. 7.2 Power Bank The projector can be used as a power bank for your mobile phone or device.

  • Page 18: Section 9. Laser Keyboard Information & Instructions

    Section 9. Laser Keyboard Information & Instructions The projector has a built-in laser keyboard. It is removable and can be used like a mouse To eject the laser keyboard: Use 2 for easier navigation and searching on the fingers evenly spaced on the top and bottom of the laser keyboard internet etc.

  • Page 19: Laser Keyboard Features

    9.1 Laser Keyboard Features Locking Shift: The shift key features a locking function. After pressing shift once, the key will not need to be pressed again to use shift. Press shift again to cancel the function. Volume: To adjust the keyboard’s volume, press and hold the “FN” key and tap the left or right arrows to lower or raise volume level.

  • Page 20: Section 10. Storage & Maintenance

    Section 10. Storage & Maintenance 10.1 Storage Instructions & Information Before using your projector, ensure the storing environment is suitable. Properly storing your projector will help improve performance and battery life expectancy. Step 1. Ensure the projector is fully charged. Charge it if needed. Step 2.

  • Page 21: Section 11. Basic Troubleshooting

    The device is too far from the Move closer and attempt to use projector. again. If the information in Section 11 does not resolve your issue, please visit our website at www.viotek.com or contact customer support 1-855- 229-9472.

  • Page 22: Section 12. Warranty Information

    ONE YEAR LIMITED HARDWARE WARRANTY YOUR VIOTEK CRESCENT MINI PC CONSOLE PROJECTOR (“PRODUCT”) INCLUDES A ONE YEAR LIMITED HARDWARE WARRANTY (“WARRANTY”). THE WARRANTY COVERS PRODUCT DEFECTS IN MATERIALS AND WORKMANSHIP UNDER NORMAL USE. THIS WARRANTY IS LIMITED TO RESIDENTS OF THE UNITED STATES AND CANADA ONLY AND IS AVAILABLE ONLY TO ORIGINAL PURCHASERS.
