Summary of Contents for Himoto Racing Monster truck E18MT

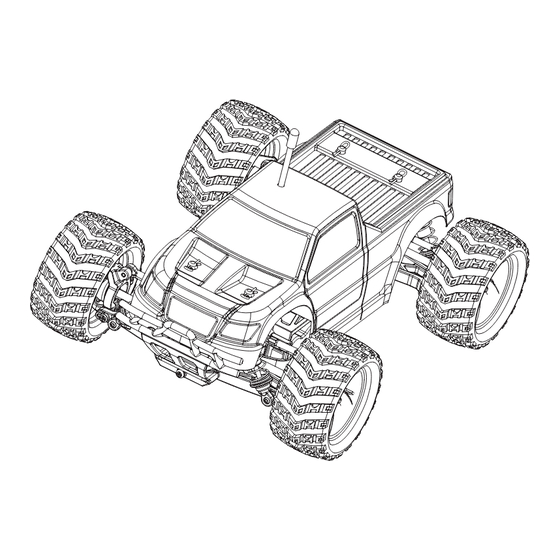

- Page 1 1/18TH SCALE ELECTRIC off-road instruction manual monster truck E18MT/E18MTL MONSTER truck E18mc/E18mcl buggy E18XB/E18XBL truggy E18XT/E18XTL...
- Page 3 Do not mix alkaline batteries, standard(carbon-zinc) or rechargeable(Nickel-Cadmium) batteries.
-
Page 4: System Specifications
MT-201 System Specifications MT-201T MT-201RE Operating 6.0~8.4V( 6.0~7.4V(Li-poly 2s) Steering Trim Steering Dual Rate Lerer (CH1) Lever (D/R) Antenna (Built in) Working Station Indicator Connects to the steering servo Switch Battery connector Motor connector Antenna Wire LED Indicator Installing the Transmitter Batteries Open the battery holding Incorrect battery insertion tray to expose the empty... - Page 5 MT-201T &MT-201RE Bind Step 1: Power off both transmitter Step 2: Turn on receiver. Step 3: Turn on the transmitter. and receiver. The LED indicator on the receiver will The transmitter and receiver will now bind begin to flash. automitically within the next 2 seconds. MT-201RE MT-201T MT-201T...
-
Page 12: Parts List
Parts List 23601 23602 23603 23604 23605 Chassis Shock Absorbers Knuckle Arms Rear Hub Front Hub 23606 23607 23608 23609 23610 (Not suitable for OR/DT) Lower Susp Arm Wheel Axle Dogbones Steering Joint Motor Mount 1 Set 23612 23613 23614 23615 23611 Plastic Motor Gear 13T(RE Only) - Page 13 23632 23633 23634 23635 23636 Cap Head Screws 2.5x14 Button Head Screws 2.5X10 Button Head Screws 2.5X8 Button Head Screws 2.5X6 Button Head Screws 3X8 23637 23638 23639 23641 23640 Flat Head Screw 3X6 Cap Screws 2X6 Flat Head Screw 2X8 Grub Screws M3X3(BL Only) Lock Nuts M3 23642...
- Page 14 Parts List 28653/28653V 28663/28663V 28659/28659V 28736B/28736V Truggy Monster Truck(MT) Buggy Tires & Rims Tires & Rims Tires & Rims Monster Truck(MC) Tires & Chrome Rims Tires & Chrome Rims Tires & Black/Chrome Rims Tires & Chrome Rims Electronics List MT-202 MT-201 MT-201T MT-202T...
-
Page 15: Optional Parts List
Optional Parts List M601 M602 M604 M603 Alum Knuckle Arms Alum Rear Uprights F/R Alum Diff Case Alum Shock Absorbers M605 M606 M608 M607 Alum Front Hub Carrier Alum Lower Susp Arm Alum Front Bumper Alum Dogbones M612 M609 M610 M611 Alum Center Driveshaft Alum Servo Saver...
