Summary of Contents for Entre Matic Ditec PWR50H

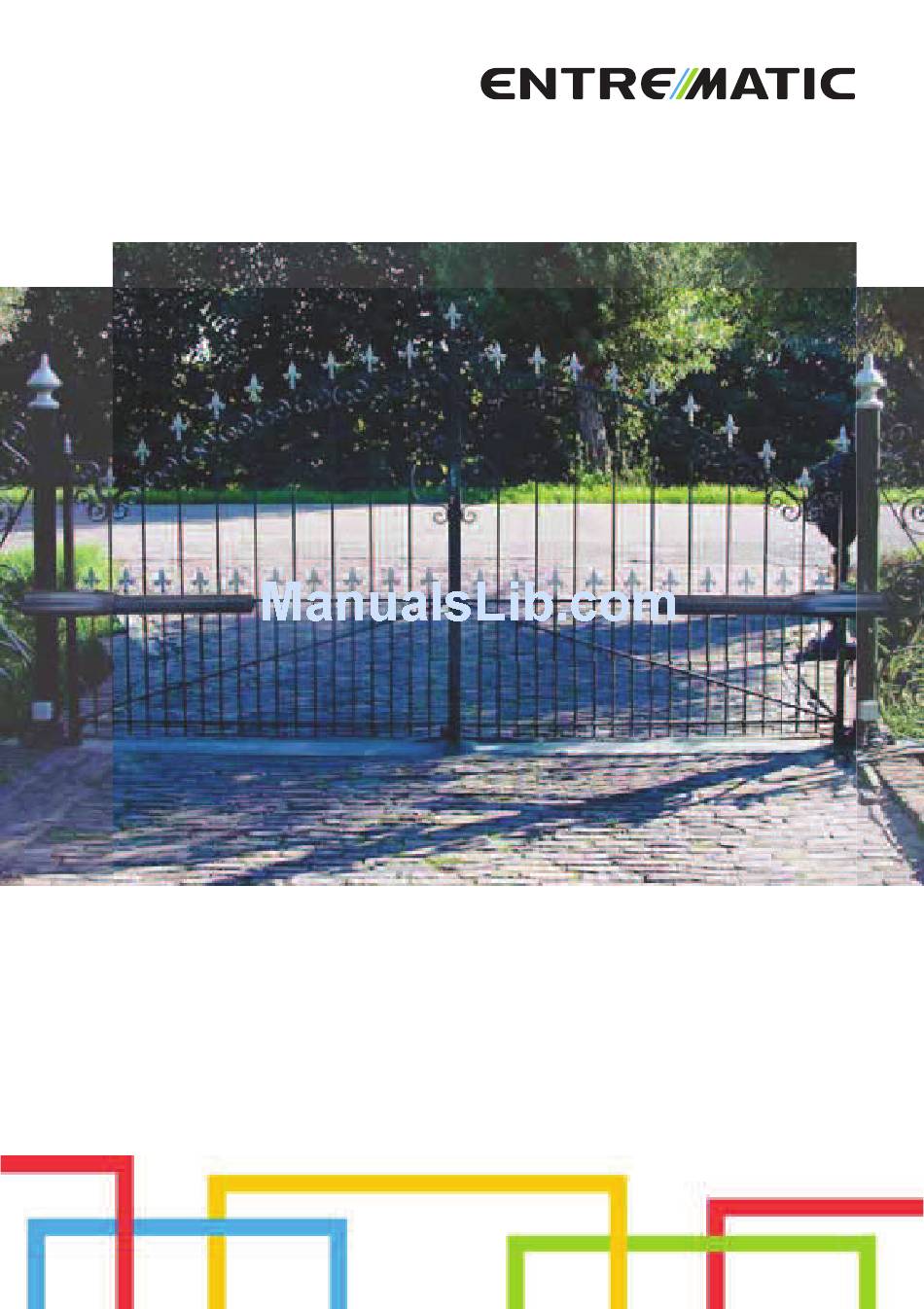

- Page 1 Ditec PWR50H/HV/HR IP2253EN Technical Manual Automation for swing gates (translation of the original instructions) www.entrematic.com...
-
Page 2: Table Of Contents
Contents Subject Page General safety precautions Declaration of incorporation of partly completed machinery Machinery Directive Technical specifications Standard installation Dimensions and gearmotor references Installation Preliminary checks Fastening the brackets Using the positioning template Installing the gearmotor Adjusting the mechanical end stops Adjusting the lever limit switch Electrical connections Routine maintenance plan... -
Page 3: General Safety Precautions
1. General safety precautions Failure to respect the information given in this manual may cause personal injury or damage to the device. Keep these instructions for future reference This installation manual is intended for qualified personnel only. Installation, electrical connections and adjustments must be performed in accordance with Good Working Methods and in compliance with the present standards. -
Page 4: Declaration Of Incorporation Of Partly Completed Machinery
2. Declaration of incorporation of partly com- pleted machinery (Directive 2006/42/EC, Annex II-B) The manufacturer Entrematic Group AB, with headquarters in Lodjursgatan 10, SE-261 44 Landskrona, Sweden, declares that the Ditec PWR50 automation for swing gates: - is designed to be installed on a manual gate to form a machine pursuant to Directive 2006/42/ EC. -
Page 5: Technical Specifications
3. Technical specifications Tab. 3.0 PWR50H PWR50HV PWR50HR Type Non-reversible Non-reversible Reversible Stroke management (limit Mechanical close stops Magnetic limit switches Mechanical close stops switch) Power supply Max absorption Power absorbed 65W nom / 288W max Max thrust 6000 N Maximum stroke 500mm Opening time... - Page 6 The product lifespan is Index of conditioning factors conditioned by the ex- >150kg tent of other onerous >200kg conditions: >300kg Gate wing weight >400kg with reference to Tab. 3.1, >500kg various corrective factors >600kg have been assessed in >700kg relation to the weight and >3m Gate wing width width of the gate wing...
-
Page 7: Standard Installation
4. Standard installation Ref. Description Cable Transmitter Flashing light 2 x 1mm² Antenna (integrated in the flashing light) coaxial 58 Ω Key selector switch 4 x 0.5mm² Digital combination wireless keypad Actuator without magnetic limit switches 2 x 1.5mm² Actuator with magnetic limit switches 3 x 1.5mm²... -
Page 8: Dimensions And Gearmotor References
5. Dimensions and gearmotor references PWR50H/HR PWR50HV Fig. 5.1 Fig. 5.2 Ref. Description Rear cover Release lock window Screw for fastening the rear cover Screw for fastening the front cover Front cover Protective brushes Mechanical close stops Magnetic limit switches Drive screw Split nut + magnet 1044... -
Page 9: Installation
6. Installation The declared operating and performance features can only be guaranteed with the use of EN- TREMATIC accessories and safety devices. Unless otherwise specified, all measurements are expressed in mm. 6.1 Preliminary checks Make sure the gate structure is sturdy and the hinges are lubricated and smooth. If possible, fit an opening and closing stop. -
Page 10: Fastening The Brackets
6.2 Fastening the brackets After selecting the most suitable point for fastening the front bracket [18] to the gate wing, to establish its height you must first size, position and fasten the rear bracket [17]. If necessary, shorten the rear bracket [17] following the indications given in Tab. 6.1. Once you have fastened the rear bracket [17] following the measurements given on page 12, fasten the front bracket [18] to the gate. -
Page 11: Using The Positioning Template
Ø9 Ø9 Ø22 Ø14 6.3 Using the positioning template During installation, the bracket positioning operation can be greatly simplified by using the po- sitioning template (optional accessory) which allows you to establish the correct position of the brackets and the distance between them. This avoids positioning errors and incorrect fixing hole alignment, thanks also to the built-in spirit-level. -
Page 12: Installing The Gearmotor
6.4 Installing the gearmotor • Open the lock window [8], loosen the screw 6.3 x 19mm [9] and remove the rear cover [7]. Loosen the screw M4 x 8mm [10] and take out the front cover [11] as shown in the figure. Release the piston by inserting the key [23] in the relative lock [24] and turning it clockwise (see the USER INSTRUCTIONS). -
Page 13: Adjusting The Mechanical End Stops
6.5 Adjusting the mechanical end stops (standard on PWR50H/HR) Bring the gate wing to its fully open or closed position. Loosen the mechanical end stops with a 4mm Allen wrench, just enough so that they can slide along the drive screw, then move them up against the split nut and fix them in place. -
Page 14: Electrical Connections
6.7. Electrical connections The PWR50H/HR/HV gearmotors can be connected to the LCU40H control panels. To connect the automation to the control panel, proceed as follows: • Remove the rear cover [7] as explained in paragraph 6.4. • Fit the cable gland on the automation, inserting it in the relative threaded hole in the metal fusion (Fig. -
Page 15: Routine Maintenance Plan
7 . Routine maintenance plan Carry out the following operations and checks every 6 months or 36.000 cycles. Disconnect the 230V~ power supply and batteries (if present): - Clean and lubricate the gate rotation pins, hinges and drive screw with neutral grease. - Check the state of wear of the brushes [12], and replace them if necessary. -
Page 16: Operating Instructions
Operating instructions General safety precautions for the user These precautions are an integral and essential part of the product and must be supplied to the user. Read them carefully since they contain important information on safe in- stallation, use and maintenance. These instructions must be kept and forwarded to all possible future users of the system. -
Page 17: Manual Release Instructions
they are supervised. To ensure that the system works efficiently and correctly, the manufactur- er’s indications must be complied with and only qualified personnel must perform routine maintenance on the motorised door or gate. In particular, regular checks are recommended in order to verify that the safety devices are operating correctly. - Page 18 Entrematic Group AB Lodjursgatan 10 SE-261 44, Landskrona Sweden www.entrematic.com...
