Bandspeed AirMaestro 3100AG User Manual

Hide thumbs Also See for AirMaestro 3100AG:

Advertisement

Quick Links

Download this manual See also: User Manual

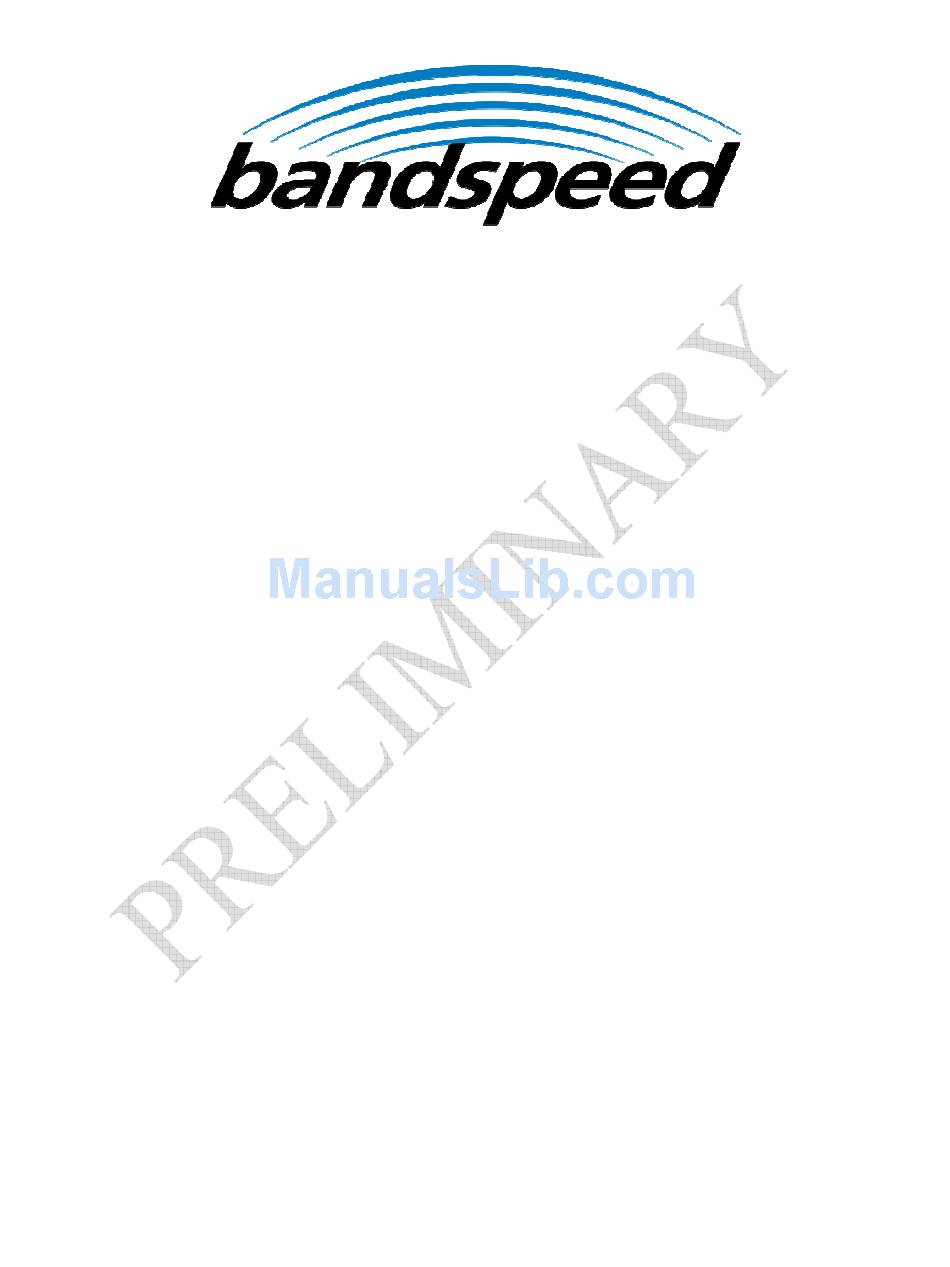

Bandspeed AirMaestro 3100AG Access Point
User's Guide
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the AirMaestro 3100AG and is the answer not in the manual?

Questions and answers

Related Manuals for Bandspeed AirMaestro 3100AG

Summary of Contents for Bandspeed AirMaestro 3100AG

  • Page 1 Bandspeed AirMaestro 3100AG Access Point User’s Guide - 1 -...

  • Page 2: Safety And Regulatory Notices

    SAFETY AND REGULATORY NOTICES FCC STATEMENT The Bandspeed AirMaestro 3100AG Access Point has been tested and found to comply with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
  • Page 3 Note: Dual antennas used for diversity operation are not considered co-located. Canadian Department of Communications Industry Canada (IC) Notice: This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210 du Canada.
  • Page 4 Important Factory Defaults Here are the factory defaults that you may need to get your AirMaestro 3100AG AP up and running on your local network. The defaults were chosen to provide quick initial access to the system and you will likely want to change some of them.
  • Page 5 (see Important Factory Defaults). You can access the AirMaestro 3100AG’s configuration web page by creating an isolated network with a personal computer, a DHCP server, an Ethernet switch (or hub) and the AirMaestro 3100AG in one of the configurations shown using a standard CAT-5 cable with RJ-45 connectors.
  • Page 6 - 6 -...
  • Page 7 Factory Defaults) in the "Address" field and press <Enter>. When prompted for user name and password, enter “admin” as the user name and the factory default password (see Important Factory Defaults) as the password. You will see the AirMaestro 3100AG configuration home page (below). - 7 -...
  • Page 8 Select Configure at the main menu and the configuration page will appear (below). - 8 -...
  • Page 9 (below). If you use a DHCP server on your network to assign IP addresses and you want the AirMaestro 3100AG to obtain its IP address from the DHCP server, select “Obtain an IP address automatically (DHCP client)”, then press [Apply].
  • Page 10 The configuration change should be saved to the Current Boot Config (nueces in this case). Enter nueces in the Filename text field and press [Save Config]. - 10 -...
  • Page 11 Connect the AirMaestro 3100AG’s ethernet port to a switch on your enterprise network where the DHCP server can provide its IP address. Power-on the AirMaestro 3100AG. Test the connection by attempting to access the AirMaestro 3100AG’s web page from a personal computer on the enterprise network.
  • Page 12 AirMaestro 3100AG through the serial port and type “get tcpip<Enter>”. See Configuring AirMaestro 3100AG Over the Serial Port for more information. - 12 -...
  • Page 13 After restarting and logging in to the new automatically-obtained IP address, your Configure/TCP/IP page should look something like the one shown below. The DHCP server has not only provided an IP address dynamically, it has also provided a Default Gateway address and DNS server addresses dynamically. This will vary depending on how your network is set up.
  • Page 14 Press [Apply] when finished. Save the configuration change as described in the dynamic IP address section, power-off the AirMaestro 3100AG and test the configuration as indicated in Figure 2. After restarting and logging in to the new static IP address, your Configure/TCP/IP page should look something like the one shown below.
  • Page 15 Connecting a 2.4GHz Wireless Client (station) At this point, wireless clients should be able to “see” the AirMaestro 3100AG on the 2.4 GHz network. For the purposes of this guide, we’ll assume that the AirMaestro 3100AG SSID has been set to “QuickStart”. You do not need to change the SSID on your system for this test.
  • Page 16 2.4GHz spectrum or the 5GHz spectrum or both. By default, the AirMaestro 3100AG is broadcasting its services in the 2.4GHz spectrum, supporting either .11b or .11g clients. If your client NIC supports .11b and/or .11g, its “discovery”...
  • Page 17 Under “Choose a wireless network”, you’ll see a list of the APs “discovered” through your wireless NIC. The AirMaestro 3100AG’s “QuickStart” SSID should appear in this list. If it doesn’t, try selecting “Refresh Network List” under “Network Tasks”. If the AirMaestro 3100AG’s SSID still doesn’t appear, contact Bandspeed for technical...
  • Page 18 Once your wireless client can “see” the AirMaestro 3100AG’s “QuickStart” SSID, you should be able to connect it to your enterprise network through the AirMaestro 3100AG. Continuing with a Windows XP client, highlight the AirMaestro 3100AG’s “QuickStart” entry in the list under “Choose a wireless network” (see previous paragraphs) and press [Connect].
  • Page 19 TCP/IP and ethernet. Bandspeed recommends changing the admin and root passwords immediately. The AirMaestro 3100AG admin password may be set through the web (HTTP) or command line interfaces. Changing the Password Using the Web Interface Launch your personal computer’s web browser, enter the AirMaestro 3100AG’s IP...
  • Page 20 When prompted for user name and password, enter “admin” as the user name and the current password. You will see the AirMaestro 3100AG configuration home page (below). - 20 -...
  • Page 21 Select Configure at the main menu and the configuration page will appear (below). - 21 -...
  • Page 22 Select Password from the configuration menu bullet list and you will see the password configuration screen (below). Enter the new password in the fields provided, consulting the Password Guidelines if needed. Press [Apply] to commit the password change. - 22 -...
  • Page 23 You can access the AirMaestro 3100AG command line by ssh (recommended) or telnet login to the AirMaestro 3100AG’s base IP address. Note that using telnet to set passwords is not secure, in that the password is exposed in clear-text on your network. If you must use telnet, Bandspeed recommends using it on an isolated network only, where network traffic can not be viewed by unauthorized parties.
  • Page 24 Enter the AirMaestro 3100AG factory default password and the IXP425 prompt appears. Set a new “admin” password using the Bandspeed “set password” command as shown. Press <Enter> and you’ll be prompted for the new password as shown. - 24 -...
  • Page 25 Enter the same password a second time when prompted as shown. If you’ve successfully entered the same password twice, you’ll see the following screen acknowledging the password change. The process for using UNIX or Linux as a client is similar to the process above. - 25 -...

  • Page 26: Configuring Ssids

    Configuring SSIDs You will likely want to use site-specific SSIDs on your wireless LAN, as opposed to the AirMaestro 3100AG factory default or the “QuickStart” SSID used in preceding examples. You can configure site-specific SSIDs through the AirMaestro 3100AG configuration web page, as follows.
  • Page 27 Select Configure at the main menu and the configuration page will appear (below). - 27 -...
  • Page 28 Select Wireless Sectors from the configuration bullet-list and the Wireless Sectors configuration page will appear (below). The current broadcast SSID for wireless sector 1 is displayed under Broadcast SSID Settings. You can configure the same SSID on each of sectors (interfaces) 1, 2 and 3 or different SSIDs on each of them.
  • Page 29 To change the SSID for wireless sector 1, select Basic Settings under Configurations and the Wireless Sectors Basic Settings page will appear (below). - 29 -...
  • Page 30 To change the SSID, edit the text between <> in the Broadcast SSID Settings text box and press [Apply]. This example sets the SSID for sector 1 to “QuickStart1”. - 30 -...
  • Page 31 To configure an SSID on a different wireless sector (interface), open the Sector pull- down under Wireless Sector and select the sector you want to configure. Repeat the process above for this wireless sector. - 31 -...
  • Page 32 Configuring AirMaestro 3100AG Using the Serial Port Should the AirMaestro 3100AG become inaccessible over the network (ethernet or wireless), you may need to configure it using the serial interface. Connect a null-modem cable from an industry-standard PC to the serial port on the back of the AirMaestro 3100AG.
  • Page 33 Enter admin as the user name as shown and press <Enter>. - 33 -...
  • Page 34 Enter the admin password when prompted. You are now logged in to the AirMaestro 3100AG, just as with the ssh/telnet examples given earlier. All Bandspeed CLI functionality is available. See the AirMaestro 3100AG User Guide for more information on functionality available from the CLI.
