Summary of Contents for Geser LOHD71-DIR

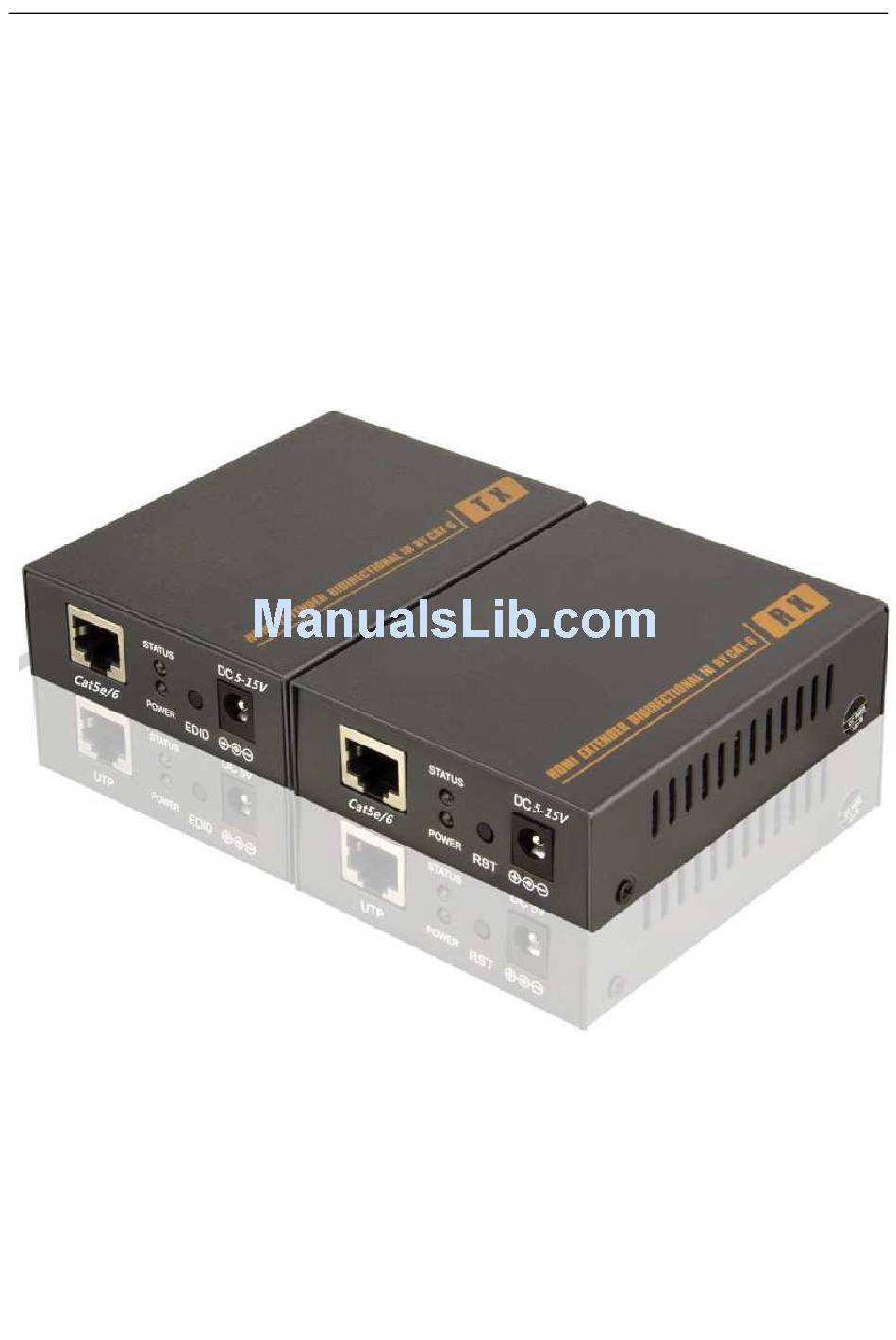

- Page 1 HDMI Extender Via Cat6/7E With local HDMI loop output User manual...
- Page 3 Description The HDMI extender provides extension of HDMI signals long distances over a single CAT6/7e cable, it supports high resolution up to 1080p, support EDID copy and loopout function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
-
Page 4: Specifications
Specifications Parameter Description HDMI 1.3; HDCP 1.2 Standards 165MHz Maximum pixel clock 6.75Gbps Maximum data rate Video 1920X1080@60Hz Resolution HDMI-A Connector 100Ω Impedance Interface 3.5mm earphone seat Signal direction bidirectional direction Signal type Digital IR frequency 20k-60kHz Interface RJ45 standard of IEEE-568B. RJ45 Connection Cat5e/6 UTP CAT6/7E: 60m；CAT5e-40m... -
Page 5: Package List
Panel Transmitter: Receiver: Port name Description HDMI IN/OUT HDMI signal input/output Cat5e/6 RJ45 interface DC/5-15V Power adapter socket EDID button, press 3 second to copy EDID form EDID displayer that connect TX HDMI IN port. IR signal input/output Reset system(Press for 5 second to restore RESET system setting to factory default) LED indicator... -
Page 6: Installation
HDMI transmitter ……………………….……. 1 pcs HDMI receiver …………………………………. 1 pcs Power adapter ………………………………..1 pcs IR blaster extension cable ………………1 pc IR receiver extension cable …………… 1 pc User manual …………………………………..… 1 pcs Installation 1、Connect the HDMI input source (such as HD-DVD、PS3、STB etc. ) to transmitter. 2、Connect a CAT6 cable from Cat5e/6 port of transmitter to Cat5e/6 port of receiver 3、Connect the HDMI sink(such as HD-LCD、HD-DLP）to receiver, 4、Connect the transmitter Cat5e/6 port to the receiver Cat5e/6 port using a single...
