Summary of Contents for Kantech Intevo Compact

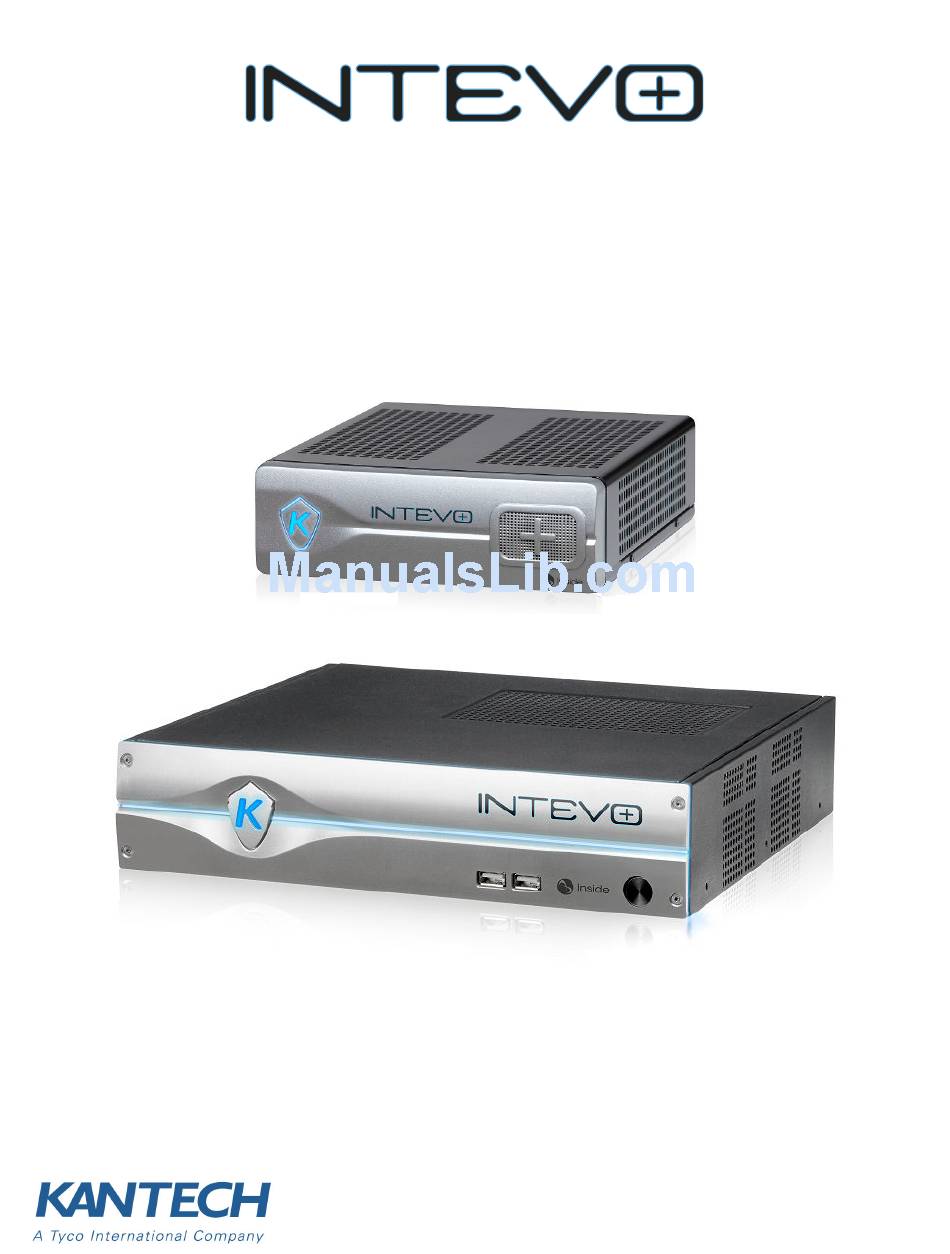

- Page 1 Access Control and Video Software Management Intevo Compact Intevo Advanced Installation Manual Advanced and Compact Models DN2056-1303 V 1.0...
-
Page 2: Table Of Contents
The Administrator Environment ................11 Configuring a Printer ......................11 Create a new user: ........................ 11 Camera/HDVR Registration: ....................11 The Operator Environment .................. 11 The Task Bar ........................12 The Gadget Bar ........................12 Troubleshooting ....................14 Kantech Technical Support Information ..............15... - Page 3 TYCO INTERNATIONAL LTD END-USER LICENSE AGREEMENT FOR KANTECH Software Provided With or Without Products or Components IMPORTANT - READ THIS END-USER LICENSE AGREEMENT ("EULA") CAREFULLY BEFORE OPENING THE DISK PACKAGE, DOWNLOADING THE SOFT- WARE OR INSTALLING, COPYING OR OTHERWISE USING THE SOFTWARE.
- Page 4 m Upgrades and Updates. To the extent Tyco makes them available, Software upgrades and updates may only be used to replace all or part of the original Software that you are licensed to use. Software upgrades and updates do not increase the number of copies licensed to you. If the Software is an upgrade of a component of a package of Software programs that you licensed as a single product, the Software may be used and transferred only as part of that single product package and may not be separated for use on more than one computer or System.
-
Page 5: Compliance Specifications
FCC Compliance Statement CAUTION: Changes or modifications not expressly approved by Kantech could void your authority to use this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 6: Overview And Recommendations
Overview and Recommendations WARNING: When HTTPS is used an SSL certificate is required. Installation Instructions For installation instructions, please refer to the Intevo Quick Setup Guide DN2055 for details. Understanding LED Patterns The status LED states are the following: Power Off – LED is steady off. •... -
Page 7: Hdvr Calculator
HDVR Calculator The HDVR calculator provides an estimate of the number and variety of IP cameras that can be supported on the HDVR. We recommend using the HDVR calculator in order to configure your video system with the correct parameters. The maximum bandwidth throughput can be calculated based upon the camera configuration by using the HDVR calculator. -
Page 8: Configuration
Configuration The Configuration Tool For a local access: Power on the Intevo (done automatically when connecting the AC power cable). Follow the steps in the First Boot Wizard (Please refer to the First Boot Wizard section). For a remote access: Power on the Intevo (done automatically when connecting the AC power cable). -
Page 9: The First Boot Wizard
Serial Number / MAC Address icons: • : The device cannot be accessed or the admin password has been changed . • : The device can be accessed and the Tools menu options can be used. • : The firmware update is in progress. •... - Page 10 Step 2: The Welcome Tab The Welcome tab displays a welcome message and a short introduction of Intevo’s First Boot Wizard.
- Page 11 Step 3: The End User License Agreement Tab The End User License Agreement tab displays the End User License Agreement that must be accepted in order to proceed to the next step. Step 4: The System Tab In the System tab, you are able to display all of your product information, such as: The serial number •...
- Page 12 The time zone • Step 5: The Network Tab The Network tab is where you will enter your Local Area Connection information: The IP Address • The Subnet Mask • The Default Gateway • The Primary DNS Server • The Secondary DNS Server •...
- Page 13 NOTE: The DHCP check box is always checked by defauIt, which implies that the system is waiting for an address from the DHCP server. NOTE: If a DHCP configuration is selected, the received address must be reserved from the router. NOTE: We recommend using ETH1 for your data network and ETH2 for your video camera network.
- Page 14 Step 6: The Site information Tab As the last step of the First Boot Wizard process, you must provide all the information pertaining to your site and dealer, as they will populate simultaneously your EntraPass dealer information configuration. Step 7: The Final Tab Should any information be omitted in a particular step of the wizard, you will be prompted in the Final step to include it in order to complete the installation.
- Page 15 Once all the information is entered, simply click the FINISH button and the information you entered will be saved. Your computer will reboot and you will be able to log in with your admin username and password. NOTE: Once all the steps are completed, EntraPass will launch and the information you entered in the First Boot W izard will be saved and transferred automatically into EntraPass.
-
Page 16: The Administrator Environment
The Administrator Environment EntraPass and Webstation can be accessed remotely using intevo1 as ID and password. Configuring a Printer A new printer can be added in the Administration environment using the Start/Devices and Printers Windows menu to print reports and badges. Create a new user: From the Windows Control Panel, click on User Accounts. -
Page 17: The Task Bar
The navigation bar cannot be resized. The Gadget Bar The gadget bar allows the user to display the following: Application versions (EntraPass, video) • Kantech and AD services status • DMS (Device Monitoring Status) status • CPU and memory usage •... - Page 18 Storage status • same flexibility navigation bar applies to the gadget bar as it can also be docked either on the right side of the screen (default), or on the left side.You can also choose to set it to the auto-hide mode (always on by default) and resize the width by clicking the edge.
-
Page 19: Troubleshooting
Troubleshooting How to recover your Operating System data (Recovery tool) Should you ever need to recover your data, you must press the F8 key, right after the bios display, to access the recovery menu. Once you choose the Repair your computer option, you must enter the password (12345). Please note that this password in NOT modifiable. -
Page 20: Kantech Technical Support Information
Kantech Technical Support Information For technical assistance with the Invevo and other Kantech products, please contact technical support, Monday to Friday. See the following table for the technical support phone numbers Support Country/Region Phone Numbers E-mail Hours North America Toll Free +1 888 222 1560 (GMT -05:00) - Page 21 © 2013 Tyco International Ltd. and its Respective Companies. All Rights Reserved. www.kantech.com DN2056-1303...
