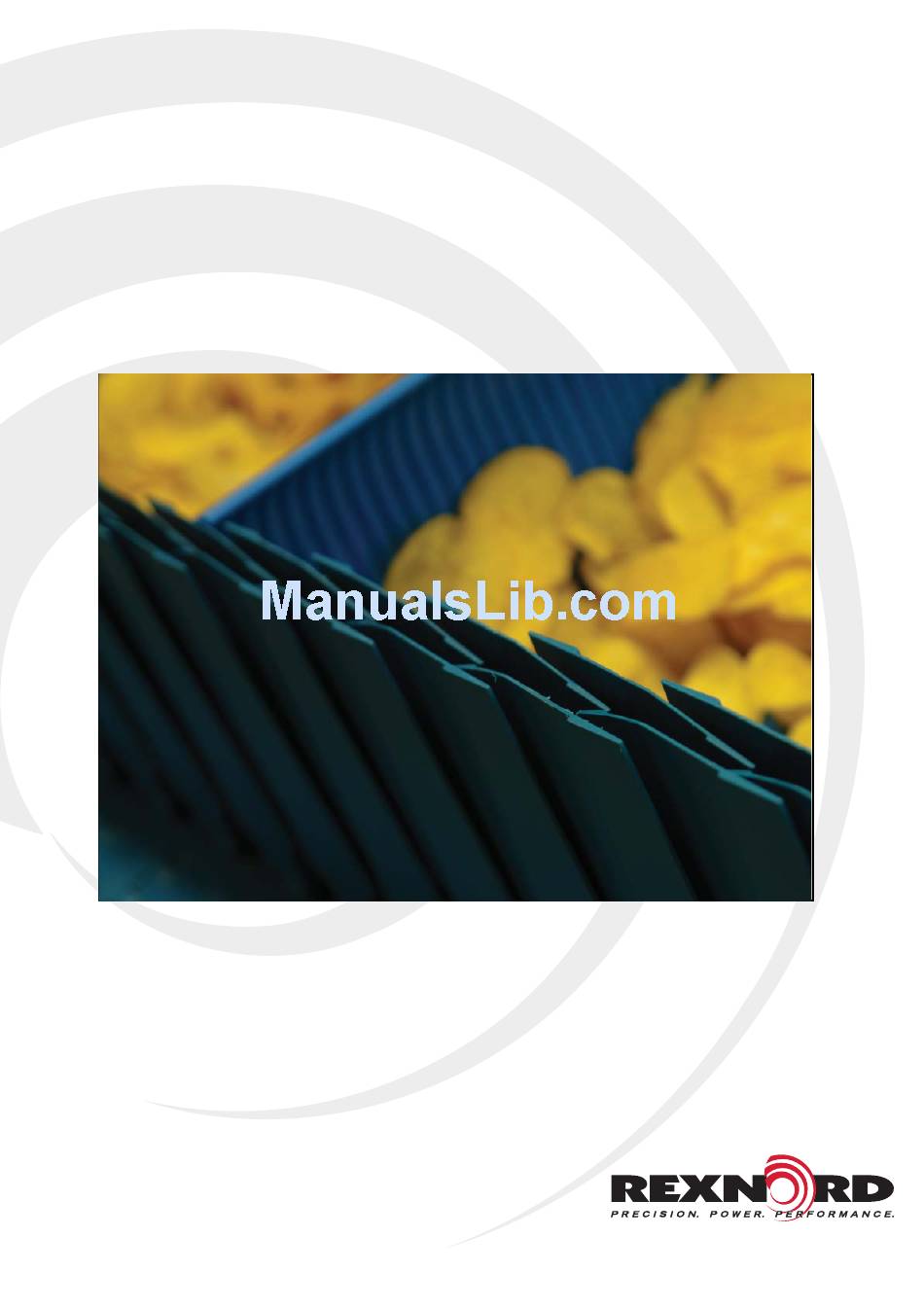

- Page 1 CONVEYOR CONVERSION MANUAL VERSION 1 ® ® ® Rexnord TableTop and MatTop Chains 2010-SERIES INTEGRATED SIDERAIL FLATTOP...
- Page 2 Rexnord Industries, LLC For more than one hundred years, Rexnord has provided superior power transmission, bearing, aerospace and specialty components to industry across the globe. We pride ourselves in commitment and dedication to the customer – from development to manufacturing, from installation to service.
-
Page 3: Table Of Contents
CONTENTS SAFETY CONSIDERATIONS 1.1 Introduction Current Systems 1.2 Why Change? Rexnord Intergrated SideRail 1.3 New Systems 1.4 Existing Systems Rexnord Intergrated SideRail 1.5 Check list... -
Page 4: Safety Considerations
PRODUCT SAFETY: Products designed and manufactured by Rexnord are capable of being used in a safe manner; but Rexnord cannot warrant their safety under all circumstances. PURCHASER MUST INSTALL AND USE THE PRODUCTS IN SAFE AND LAWFUL MANNER IN COMPLIANCE WITH APPLICABLE HEALTH AND SAFETY REGULATIONS AND LAWS AND GENERAL STANDARDS OF REASONABLE CARE;... - Page 5 MatTop chain on this kind of conveyor is the 2-inch pitch food grade execution, like the Rexnord 2010 series. Rexnord is introducing a new type of side rail, the Integrated SideRail. This is a side rail that retains product, travels with the chain and is an integral part of the chain design.
-
Page 6: Current Systems
CURRENT SYSTEMS 1.2 WHY CHANGE? In processing lines currently several system are being used in combination with 2- inch pitch food grade Modular belting/MatTop chains: Flighted chains with static side guides Flighted chains with conventional sidegaurds (Loose ele ments to the chain) Fligthed chains in combination with Integrated (or Molded-In) side-gaurds Although the functionality of all these systems should be the same;... - Page 7 CURRENT SYSTEMS • Cleaning of the inclined conveyor is often not easy because of their height. The chain rotates and passes the lowest point in the conveyor and therefore can be cleaned. However, the static guides at the top of the conveyor cannot be reached easily.
- Page 8 CURRENT SYSTEMS • The conventional sideguards are available up to 4-inch high and therefore can not be combined with 6-inch tall pusher fl ight, limiting the capacity of the inclined conveyor. • However, because the sideguards located in an angled overlapped position they cannot be properly reached for cleaning and large surface areas remain unexposed.
-
Page 9: Rexnord Intergrated Siderail
REXNORD INTEGRATED SIDERAIL Integrated Side Rail (ISR) Based on feedback from the market Rexnord has designed the new Integrated SideRail to address the defi ciencies of most conventional systems. The system consists of 2 integrated staggered blades per end module that interact together when the chain operates;... -
Page 10: New Systems
fl avouring. NEW SYSTEMS Obviously the Rexnord 2010 ISR system can be used on new equipment as well. In this case you will experience the easy and simple conveyor design needed for the 2010 ISR. Details about new conveyor design can be found in our engineering manual, section inclined conveyors. - Page 11 • If the current chain is not a Rexnord 2010-series chain, the drive sprockets need to be changed. If sprockets are being used on the idler shaft, these need to be replaced as well. Discs (or other systems not interacting with the chain...
-
Page 12: Checklist
Besides the up mentioned recommendations, as with any renewal or conversion of conveyor Modular belt/chain the carry way and return way should be inspected on their general condition. CHECKLIST To determine if your conveyor can be changed to Rexnord Integrated SideRail the following checklist should be completed: Item Description Yes/No Defi... - Page 13 NOTES...
- Page 14 Rexnord represents the most comprehensive portfolio of power transmission and conveying components in the world with the brands you know and trust. ********* are registered trademarks, and $$$$$$ are trademarks of Rexnord Industries, LLC. All rights reserved. WORLDWIDE CUSTOMER SERVICE AUSTRALIA...
- Page 15 ® ® ® Rexnord TableTop and MatTop Chains ® ® Rexnord 2010 Series MatTop Integrated Side Rails OPTIMIZE PRODUCTIVITY The maximum-height 6 inch ISR model increases conveyor capacity and can be used with high-capacity ® Rexnord ’s new Integrated Side Rail ( ISR) system for 6 inch straight and curved Pushers.
- Page 16 Microban is safe, durable and effective. Microban is a registered trademark of Microban Products Company. Rexnord, TableTop and MatTop are registered trademarks of Rexnord Industries, LLC. All rights reserved. WORLDWIDE CUSTOMER SERVICE AUSTRALIA FLATTOP EUROPE...
