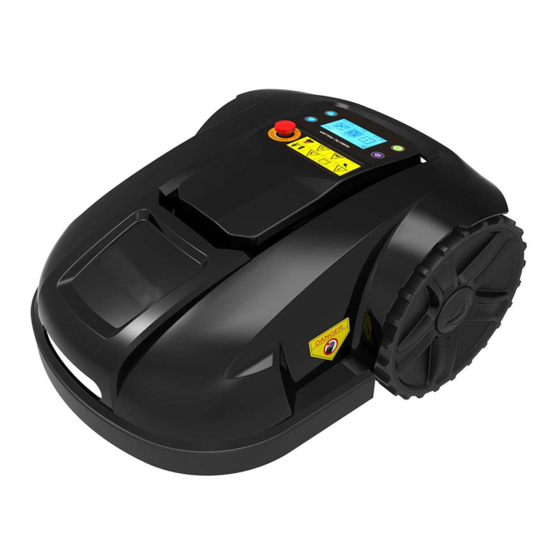

Summary of Contents for Exgain E1800S
- Page 1 USER MANUAL Please read this manual carefully before use ROHS Please keep this manual for future reference...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION AND SAFETY 2. PRESENTATION 3. INSTALLATION 4. CONTROL PANEL 5. APP USER MANUAL 6. USE 7. MAINTENANCE AND STORAGE 8.TROUBLE SHOOTING 9. EXPLODED VIEW... -
Page 3: Introduction And Safety
1. WARNING-this is a dangerous power tool. Use care when operating and follow all safety 1.1 Introduction instructions and warnings. The products are manufactured by Zhejiang EXGAIN 2. Read the owners/operating manual carefully TECH Co., Ltd. and follow all safety instructions before operating www.exgain-tech.com... - Page 4 1. INTRODUCTION AND SAFETY - Inspect and clear the mowing area of all debris (toys, 4. Charging station symbol. tree branches, items of clothing, anything with a height less than 6cm) before operating the mower. CAUTION! - Never raise the mower or attempt to inspect the blades while the mower is operating.
-
Page 5: Presentation
2. PRESENTATION 2. PRESENTATION This chapter contains information you should be aware of before placing the installation. 2.1 What’s in box Charger Emergency button Rotate it to turn on the mower. Virtual wire (100m): Press it to turn off the mower. Used to mark mowing area and LCD display create a virtual wall for the mower. - Page 6 2. PRESENTATION 2.2 Function of E1800 - Two cutting modes There are two cutting modes of the mower, go straight - Lift sensor and go circle (high efficiency). There are lift sensors located between the top and middle In Auto, mower selects cutting mode intelligently. cover.
- Page 7 2. PRESENTATION 2.3 Technical data Model No. E1800S E1800 E1800T Battery Type of battery Lithium Mower technical date Battery capacity 19KGS 2.2Ah 4.4Ah 6.6Ah Gross weight Net weight 16KGS Charging time ≤1.5hours ≤2hours ≤ hours Mower size Average working time...
-
Page 8: Installation
3. INSTALLATION 3. INSTALLATION 3.3 Charging station installation This chapter describes how you to install this mower. - Choose best installation place, please make sure Before starting the installation, read the previous it is flat, no water, no magnetic interference and no chapter 2. - Page 9 3. INSTALLATION - Bury virtual wire below grass and fasten it on 3.4 Virtual wire installation the ground with pegs, so that the mower should The virtual wire can be installed in one of the following not cut the wire. ways: Add pegs in order to pull the - Securing the wire to the ground with pegs.
- Page 10 3. INSTALLATION - Use the virtual wire to isolate areas inside the working - Care must be taken not to create a corner sharper area by creating islands around obstacles that can shorter than 90 degrees when setting up virtual wire. not withstand a collision, for example, flower beds and A corner sharper less than 90...
- Page 11 3. INSTALLATION 3.5 Charging head installation. 3.7 Power connection. 1. Connect charger terminal with charging station power terminal . Connect 1 from plug a to 1 from plug b and screw it it tightly. Power terminal Power terminal on charger on charging station 2.
-
Page 12: Control Panel
4. CONTROL PANEL 4. CONTROL PANEL Control Panel view Display Charging station symbol Working schedule symbol Rain sensor symbol Gyroscope Line symbol Function setting Auto mode Battery voltage Area setting Month / Date Week Hour / Minute Inquiry Touch sensor A B C D E 2 Up / + : -select menu, go upward... -
Page 13: App User Manual
APP USER MANUAL The APP is available for IOS and Andriod phone. Download and Install ： The Android user pls search “EGROBOT” in Google Play to download. The IOS user pls search “EGROBOT” in the Apple Store to download. the first time please connect the charging station and virtual wire and turn on the mower according to the user manual.Then enter the smart phone setting interface--WI-FI to connect the device.Pls note for first time it takes about 3-5minutes to connect device, and the device can only connect with one phone... - Page 14 Working Area setting This part should combine with user manual page13-14. Enter the “Area location setting” 1.before enter into this interface, pls separate the garden into several areas as per user’s own demand. 2.choose the areas that you set accordingly and Save, then start locating.
-
Page 15: Use
5. USE 5. USE 5.2 Starting the mower IMPORTANT INFORMATION There are two locations of start the mower. 1.Take the mower clockwise onto virtual wire, make sure - Do not leave the mower to operate unattended if you that the mower is not connected with two charging know that there are pets, children or people in the sheets on charging station. - Page 16 5. USE Enter the AUTO mode? 10-500mins YES / NO AUTO English / French / German / Danish Swedish / Finnish / Italian / Polish Norwegian / Spanish / Russian / Dutch LANGUAGE EXIT Set address ADDRESS YES / NO Set range RANGE 1/2/3/4...
- Page 17 5. USE 5.5 Language selection 3. To set Year. 1. Select SET and enter it by pressing key - Press key or key to scroll to Year setting. 2. Select FUNCTION and enter it by pressing key press key to enter Year setting. 3.
- Page 18 5. USE 5.13 Schedule time setting IMPORTANT INFORMATION The schedule time setting should be used together If user does not select working in AREA 2, he can not with AREA function. P15-5.12 AREA setting. set the robot working in AREA 3. 1.
-
Page 19: Maintenance And Storage
6. MAINTENANCE AND STORAGE 15. Servicing of the mower should be according 6. MAINTENANCE AND STORAGE manufacturers instructions. This product - During maintenance operations, use the individual (include battery pack) must be disposed of at a protections indicated by the Manufacturer , especially designated collection pint for electrical when intervening on the blade. -
Page 20: Trouble Shooting
7.TROUBLE SHOOTING 7. TROUBLE SHOOTING Display Possible reasons Solutions Problem 1.Check the virtual wire Input the correct 1.The virtual wire fails to send signals. password and select light on charging station. Be sure the virtual wire is AUTO mode, but the connected to the charging 2.The virtual wire was mower still can not start. - Page 21 7.TROUBLE SHOOTING Display Possible reasons Solutions Problem Turn off the mower and take Mower is tilted over than Mower stops working 30 degrees from the the mower to level ground. and beeps. ground. Then restart the mower. 1.Charger is not powered 1.
-
Page 22: Exploded View
8. EXPLODED VIEW Robot Exploded View - 20 -... - Page 23 8. EXPLODED VIEW Robot spareparts list: Sparepart Name Spareparts Name Spareparts Name Adjusting motor PCB Flat washer-3 Cutting height adjusting motor Display PCB Blade shield Rain sensor Cutting motor fixed mount Blade M4 screw nut Middle cover Shaft sleeve Blade Emergency base Cutting motor fixed seat Blade M4 screw...
- Page 24 Robot lawn mower USER MANUAL...
